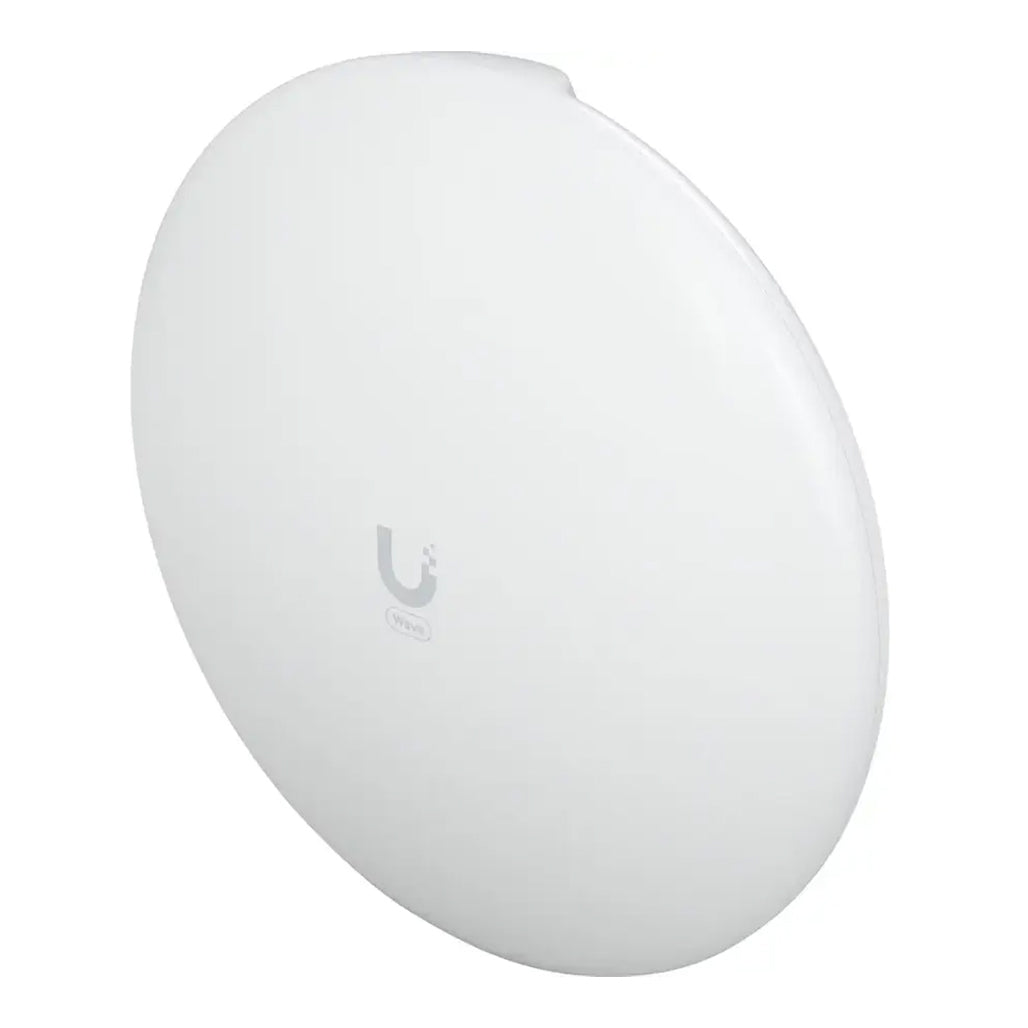

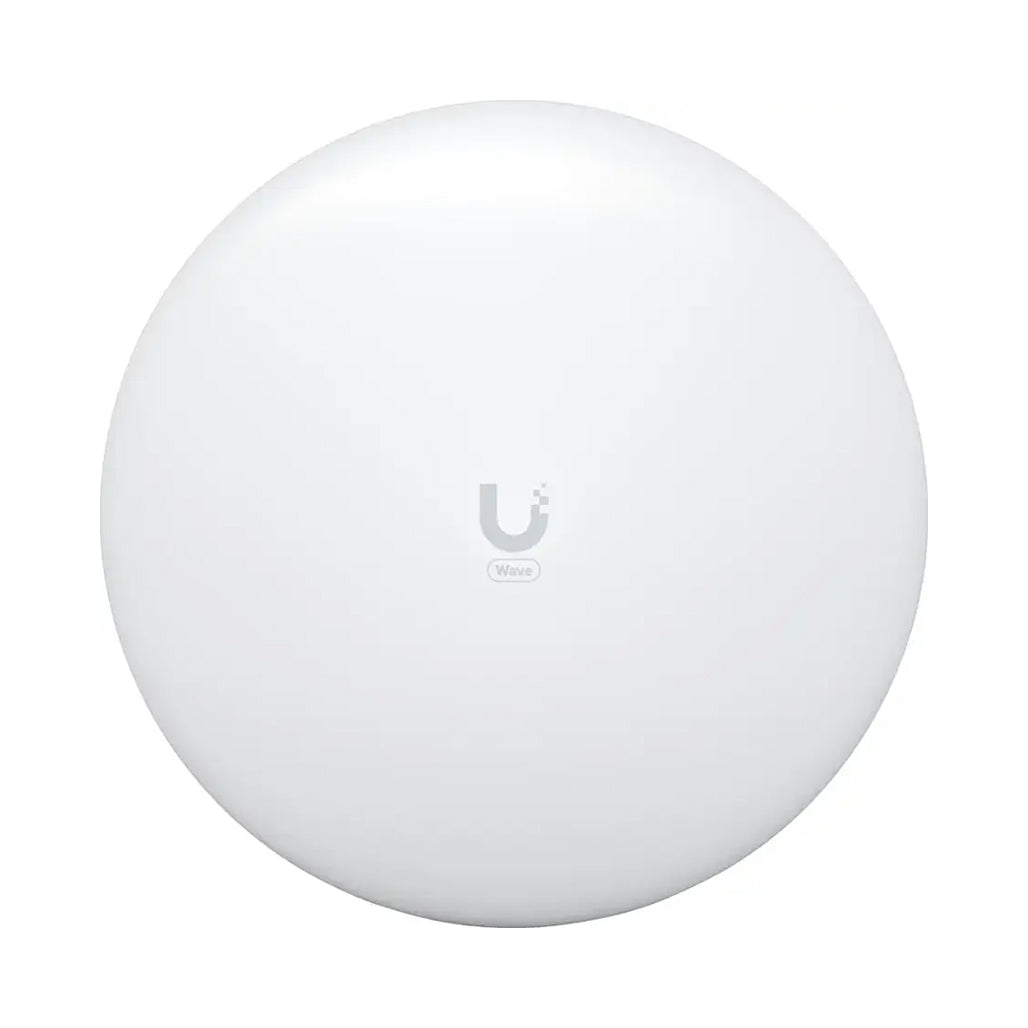

Ubiquiti Wave Long-Range (Wave-LR) – 60 GHz PtMP Station with 5 GHz Backup

The Ubiquiti Wave Long-Range (Wave-LR) is a point-to-multipoint station built to deliver high-capacity wireless connectivity over long distances using 60 GHz Wave technology. It is engineered for outdoor deployment and offers reliable, high-speed links even in challenging environments. A 5 GHz backup radio ensures continuity of service when primary links are impaired due to weather or obstacles.

With built-in GPS and Bluetooth, setup and alignment are simplified through the UISP interface. Its durable weatherproof casing (rated IPX6) withstands harsh conditions, while passive PoE power delivery and a 20 W maximum draw keep deployments streamlined. The device supports both bridge and router modes, making it flexible in network architectures.

Key Features

• 60 GHz PtMP Primary Link – Provides high-capacity backhaul for wireless networks.

• 5 GHz Backup Radio – Maintains connectivity during adverse 60 GHz conditions.

• High Throughput – Up to 2 Gbps total (1 Gbps duplex) under ideal conditions.

• Long Range – Maximum link distances of 8 km in PtMP setups.

• Durable Build – Weatherproof design with IPX6 rating and strong wind tolerance.

• Passive PoE Power – Supports 48 V DC (4-pair or 2-pair) and 24 V DC power options.

• GPS & Bluetooth Integration – Aids in alignment, management, and location services.

• Flexible Network Modes – Operates as bridge or router in PtMP station mode.

• Simple Setup Tools – UIP, antenna alignment, speed test, SNMP, discovery, and utilities.

Technical Specifications

Mechanical & Environmental

• Dimensions: Ø 424.4 × 166.2 mm (Ø 16.7 × 6.5 in)

• Weight (without mount): 2.59 kg (5.7 lb)

• Weight (with mount): 3.79 kg (8.4 lb)

• Enclosure Material: UV-stabilized plastic

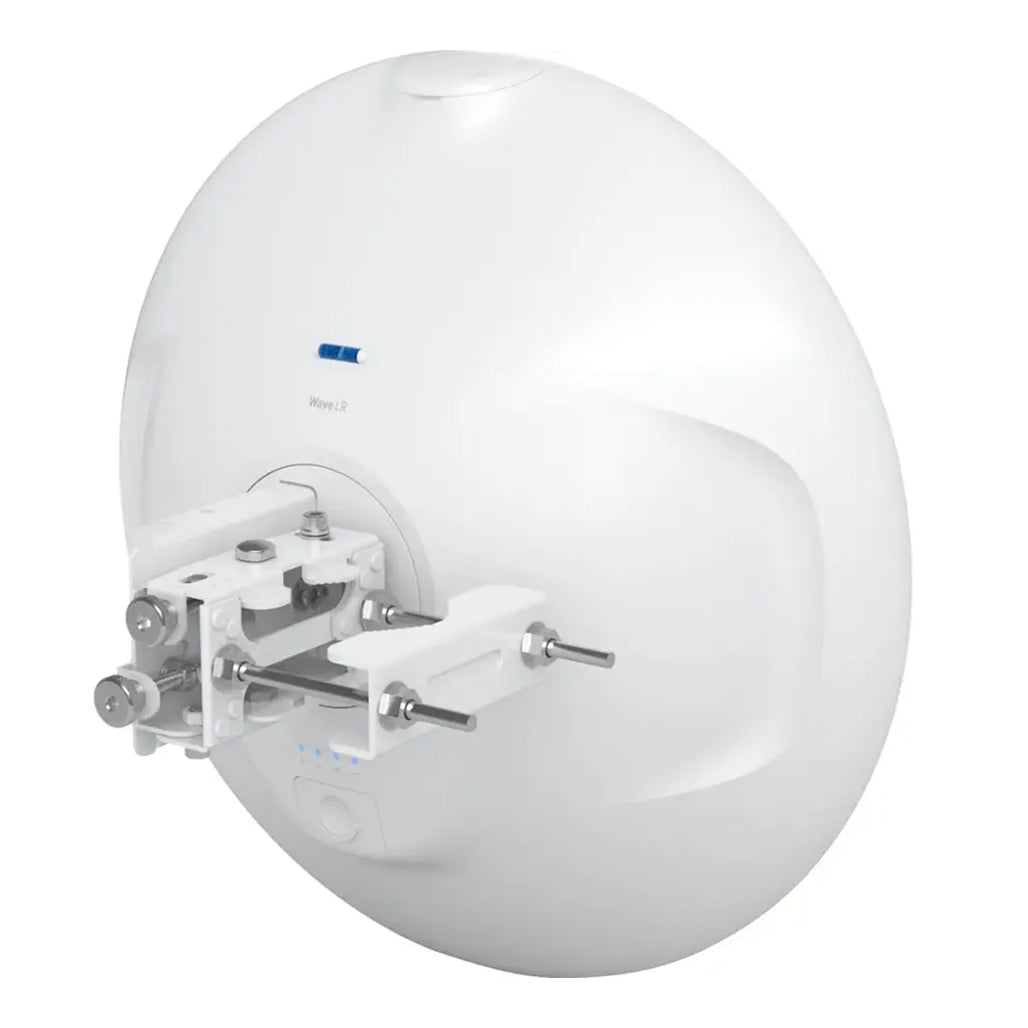

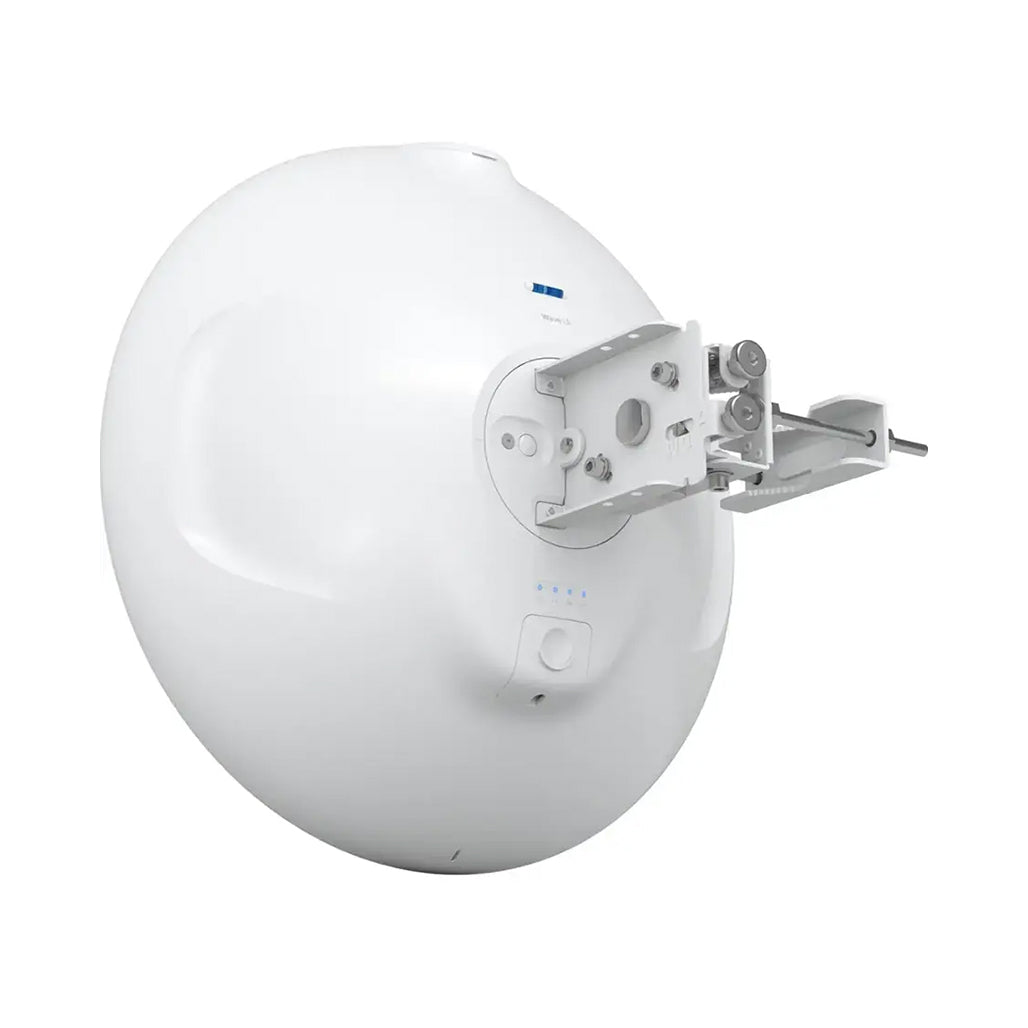

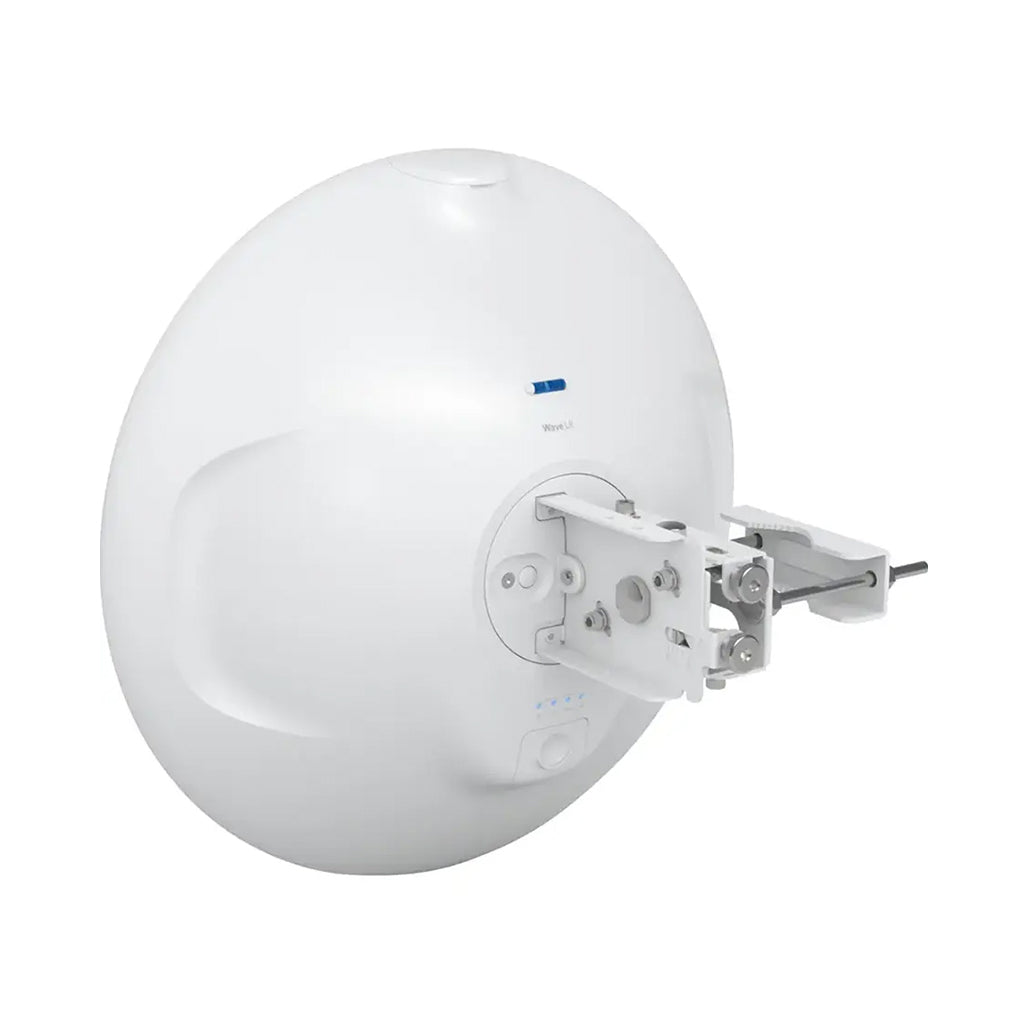

• Mount Material: Stainless steel

• Pole Mount Diameter: 25 to 76.2 mm (1 to 3 in)

• Wind Loading: 286 N at 200 km/h

• Weatherproofing: IPX6

• Operating Temperature: –40 to 60 °C

• Operating Humidity: 5% to 95% non-condensing

Hardware & Power

• Processor: Dual-core ARM® Cortex®-A53 @ 1 GHz

• Memory: DDR3L, 512 MB

• Networking Interface: 1 × Gigabit RJ-45

• Maximum Power Consumption: ~ 20 W

• Power Over Ethernet:
   • Passive PoE 4-pairs (1,2+; 3,6–) & (4,5+; 7,8–)
   • Passive PoE 2-pairs (4,5+; 7,8–) for 44–54 V DC only

• Supported Voltage Range: 44–54 V DC, 22–27 V DC

• Included Power Supply: 48 V DC, 0.65 A PoE adapter

• Reset Button

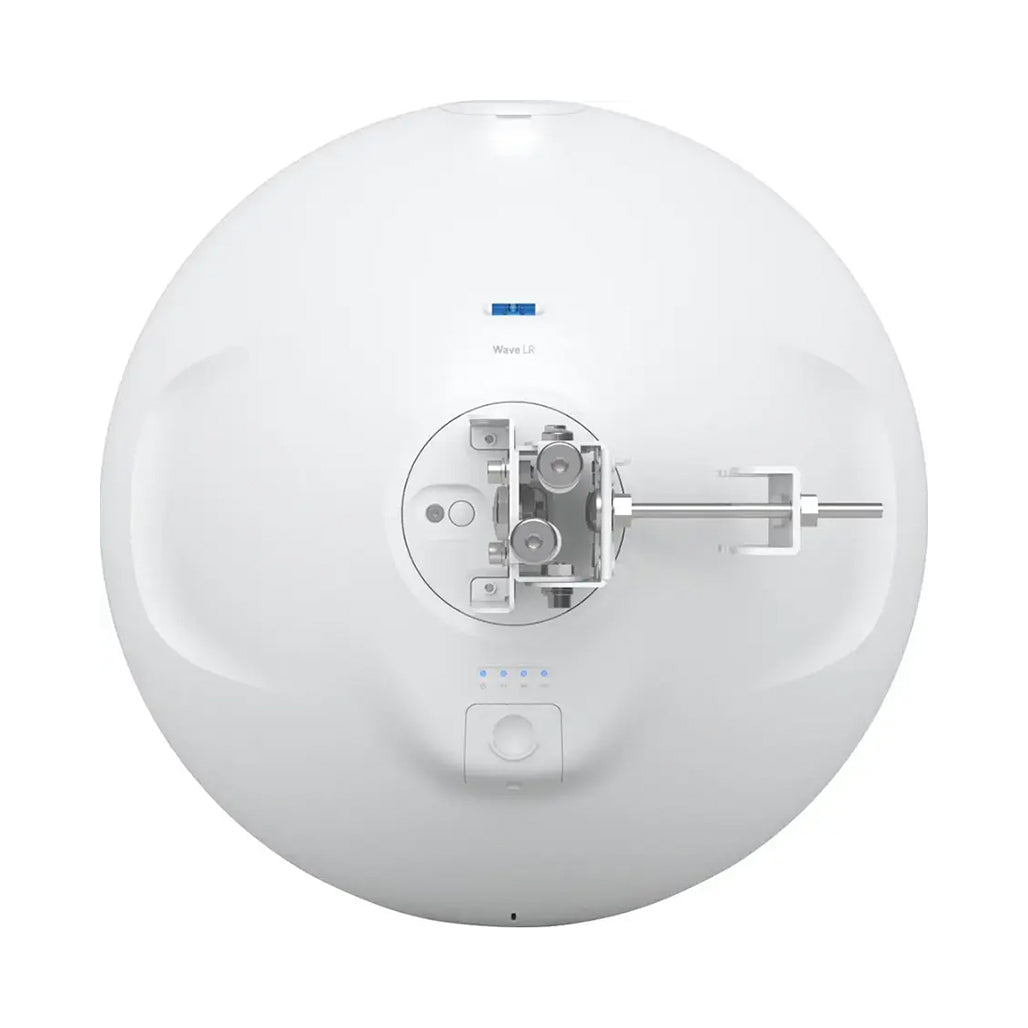

• LEDs: Power, Ethernet, GPS, Link

Performance & Radio

• Total Throughput: 2 Gbps (1 Gbps duplex)

• Supported Frequency (60 GHz): 57 to 71 GHz (region-dependent)

• Channel Bandwidths: 2160, 1080, 540 MHz

• Modulation: 16QAM, QPSK

• Antenna Gain: 46 dBi

• Beamwidth (3 dB): Azimuth & Elevation approx. 1°

• Maximum Range: 8+ km

• Encryption: WPA2-PSK (AES)

Backup 5 GHz Radio

• Standard: 802.11ax (WiFi 6)

• Frequency Range: 5150–5875 MHz (region-dependent)

• Channel Bandwidth: 20, 40, 80 MHz

• Modulation: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM

• Antenna Gain: 22 dBi

• Beamwidth (3 dB): Azimuth & Elevation ~ 8°

• Cross-polar Isolation: 20 dB

Software & Features

• Operating Mode: PtMP station (bridge or router)

• Configuration & Management: UISP, SNMP, discovery protocol

• Tools: Antenna alignment, speed test, ping, trace route, diagnostics

• Ubiquiti Technologies: Wave AI, discovery protocol

• Requirements: UISP version 1.4.5 or later

Certifications & Compliance

• Certifications: FCC, IC, CE

• NDAA Compliant: Yes

Conclusion

The Wave Long-Range (Wave-LR) is built for wireless connectivity projects demanding long-distance, high-throughput backhaul links. Its primary 60 GHz Wave radio delivers up to 2 Gbps performance, while an integrated 5 GHz backup radio ensures resilience under adverse conditions. With durable construction, flexible power options, GPS/Bluetooth integration, and enterprise-grade routing capabilities, the Wave-LR is a powerful tool for ISPs, campus links, and outdoor wireless networks.
