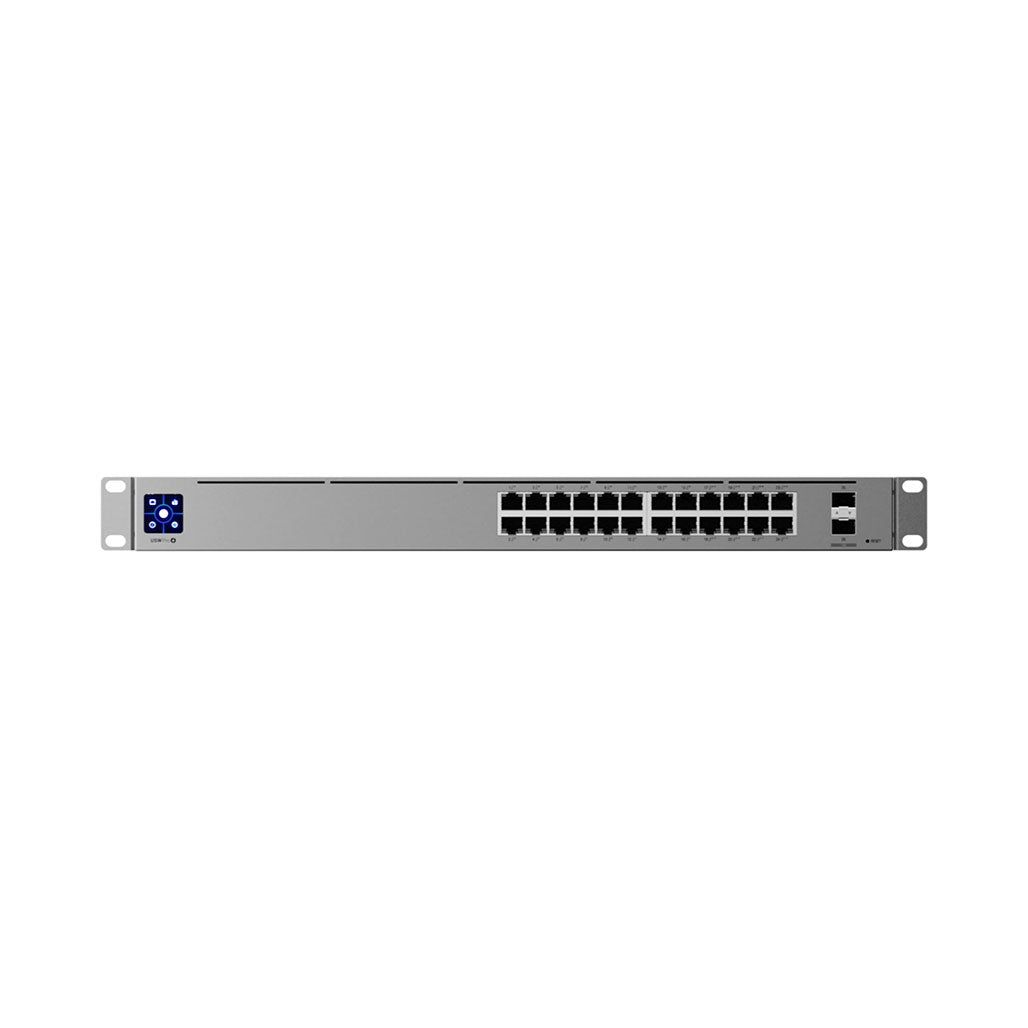

Ubiquiti USW-PRO-24-POE - Professional 24 PoE Switch

The Ubiquiti USW-PRO-24-POE is a professional-grade network switch designed to meet the demands of high-performance networking environments. Featuring 24 Gigabit Ethernet ports and 2 1/10G SFP+ ports, this switch offers robust connectivity options for both wired and fiber network setups. Its high PoE capabilities, including 16 PoE/PoE+ ports and 8 PoE++ ports, provide flexible power delivery to connected devices, supporting up to 400W total PoE power output.

With a non-blocking throughput of 44 Gbps and a switching capacity of 88 Gbps, the USW-PRO-24-POE ensures fast and reliable data transfer, making it ideal for high-traffic networks. The forwarding rate of 65.472 million packets per second (Mpps) allows for efficient handling of network traffic.

The switch is equipped with a 1.3" touchscreen LCM display for easy monitoring and management, and its fanless design ensures silent operation. The switch is built with a robust SGCC steel enclosure and includes features such as ESD/EMP protection and a range of operating conditions to ensure durability and reliability.

Key Features:

• High Performance:

  • Ports: 24 GbE RJ45 ports and 2 1/10G SFP+ ports.
  • Throughput: Non-blocking throughput of 44 Gbps and switching capacity of 88 Gbps.
  • Forwarding Rate: 65.472 Mpps.

• Power over Ethernet (PoE):

  • Ports: 16 PoE/PoE+ ports and 8 PoE++ ports.
  • Total PoE Power: Up to 400W.
  • Per-Port Wattage: PoE+: 32W, PoE++: 64W.

• Management and Monitoring:

  • Interface: Ethernet in-band management.
  • LCM Display: 1.3" touchscreen for status and settings.
  • Buttons: Includes factory reset button.

• Design and Build:

  • Enclosure Material: SGCC steel.
  • Power Supply: Internal AC/DC power supply with 450W capacity.
  • Operating Temperature: -5 to 40° C (23 to 104° F).
  • Operating Humidity: 10 to 90% noncondensing.

• Durability and Protection:

  • Certifications: CE, FCC, IC.
  • ESD/EMP Protection: Air ±16 kV, Contact ±12 kV.
  • Shock and Vibration: Complies with ETSI300-019-1.4 Standard.

Specifications:

• Dimensions: 442.4 x 285.4 x 43.7 mm (17.4 x 11.2 x 1.7")
• Weight: 4.3 kg (9.5 lb) without mounting brackets, 4.4 kg (9.7 lb) with brackets.
• Power Method: Universal input, 100—240V AC, 50/60 Hz; USP RPS DC input (52V DC, 7.69A / 11.5V DC, 2.61A).
• Max Power Consumption: 50W (excluding PoE output).
• Voltage Range PoE Mode: PoE: 44—57V; PoE+: 50—57V.

Conclusion: The Ubiquiti USW-PRO-24-POE is a powerful and versatile network switch that delivers high-speed connectivity and advanced PoE capabilities. Its robust build, high-performance specifications, and intuitive management features make it a reliable choice for demanding network environments. Ideal for both enterprise and high-end home networks, this switch ensures efficient data handling and flexible power delivery to meet diverse networking needs.
