| Model | U-POE-af |
| Dimensions | 86 x 46 x 33 mm (3.39 x 1.81 x 1.30") |
| Weight | 100 g (3.53 oz) |
| Output voltage | 48V DC @ 0.32A |
| LAN activity indicator | No |
| Gigabit LAN port | Yes |
| Remote reset capability | No |
| Reset Button | No |
| Rated voltage | 100—240V AC @ 50/60Hz |
| Input current | 500mA Max. |
| Inrush current | <100A Peak at 25°C |
| Efficiency | 84.25+% |
| Output ripple | 200mV p-p |
| Switching frequency | 65 kHz |
| Line regulation | ≤ 3% |
| Load regulation | ≤ 5% |
| 2-pair powering | Pins 4, 5 (+) and 7, 8 (-) |
| 4-pair powering | No |

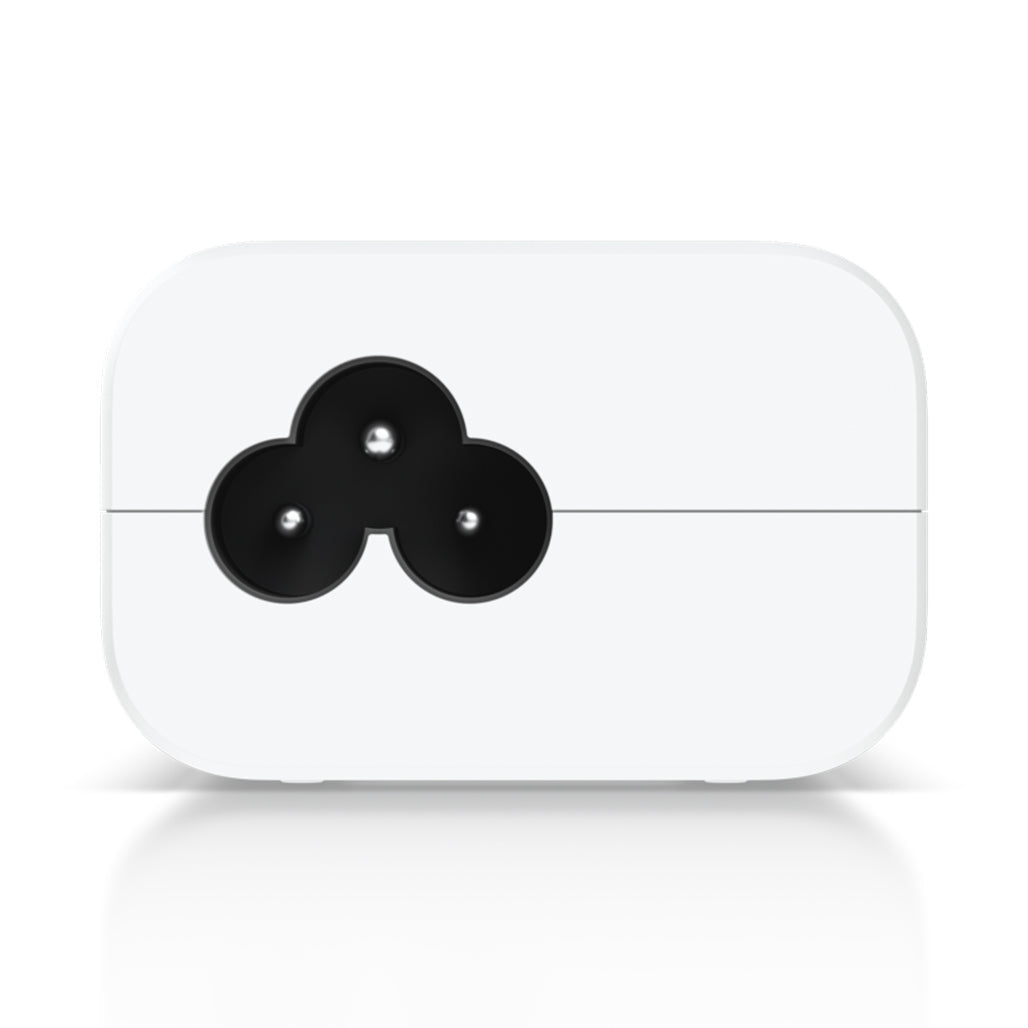

| AC connector | IEC-320 C6 |

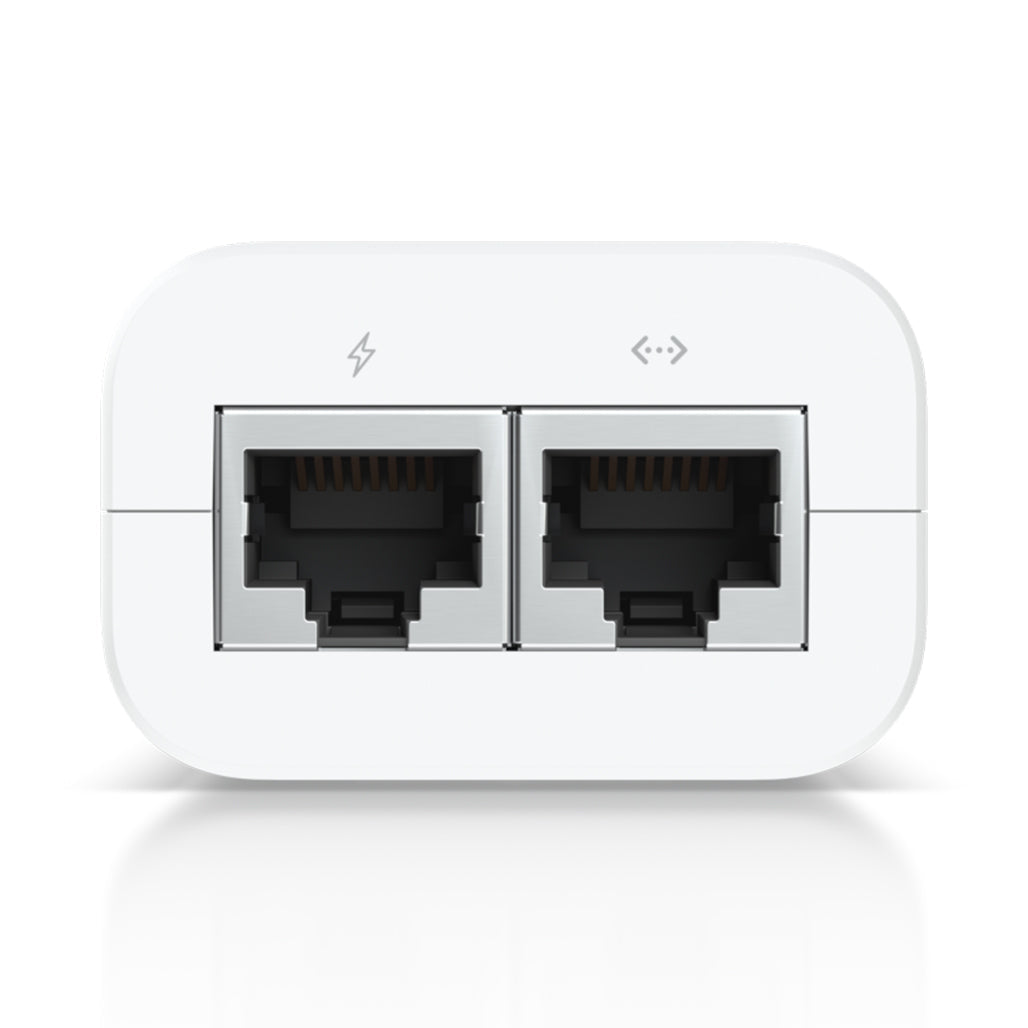

| Data In / PoE | RJ45 shielded socket |
| Surge protection | Difference and common mode |
| Clamping protection | 11V data, 60V power |
| Max. surge discharge | 1500A (8/20 μs) power |
| Peak pulse current | 36A (10/1000 μs) data |
| Shunt capacitance | <5 pF data |
| Response time | <1 ns |
| Ambient operating temperature | 0 to 40° C (32 to 104° F) |
| Storage temperature | -30 to 70°C (-22 to 158° F) |
| Ambient operating humidity | 10 to 95% noncondensing |
| Certifications | CE, FCC, IC, UL |
