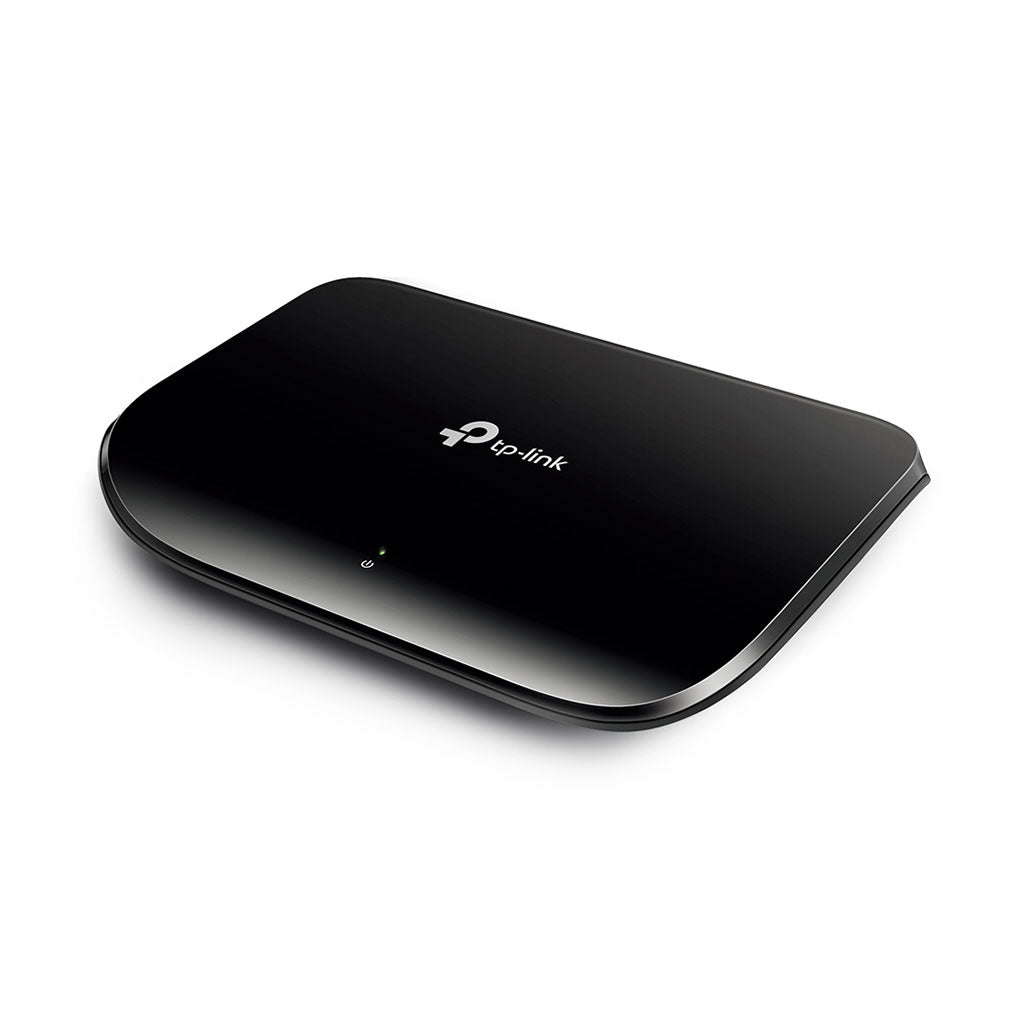

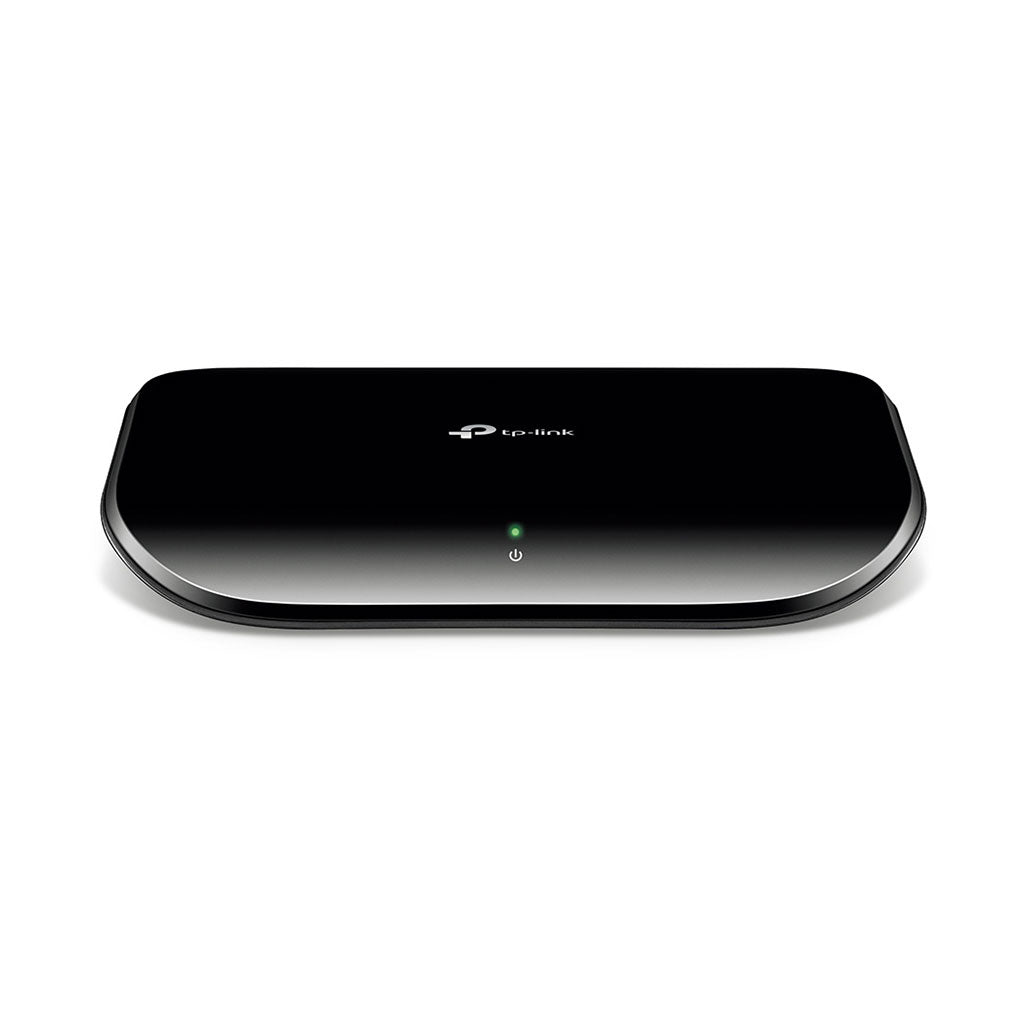

TP-Link TL-SG1005D 5-Port Gigabit Desktop Switch | Auto-Negotiation, Green Ethernet Technology, Plug and Play

The TP-Link TL-SG1005D is a 5-port Gigabit desktop switch designed to enhance network performance with high-speed connectivity and advanced features. This switch offers five 10/100/1000 Mbps RJ45 ports, all equipped with auto-negotiation and Auto MDI/MDIX, ensuring seamless integration and reliable data transfer. The TL-SG1005D is an ideal solution for small to medium-sized networks requiring high-speed Ethernet connections.

Equipped with Green Ethernet technology, the TL-SG1005D helps to reduce power consumption by adjusting the power usage based on the link status and cable length. This feature not only contributes to energy savings but also supports environmentally friendly network operations. The switch supports IEEE 802.3x flow control for full-duplex mode and back pressure for half-duplex mode, ensuring stable and reliable data transmission.

Key Features

• 5 Gigabit Ports: Includes 5× 10/100/1000 Mbps RJ45 ports for high-speed network connections.
• Auto-Negotiation and Auto MDI/MDIX: Automatically detects and configures network speeds and crossover settings, simplifying setup.
• Green Ethernet Technology: Reduces power consumption and supports energy-efficient operation.
• IEEE 802.3x Flow Control: Provides reliable data transfer with flow control for full-duplex mode and back pressure for half-duplex mode.
• Compact and Versatile Design: Features a plastic case with options for desktop or wall-mount installation.
• Plug and Play: Easy to set up with no configuration required.

Specifications

Hardware Features

• Interface:

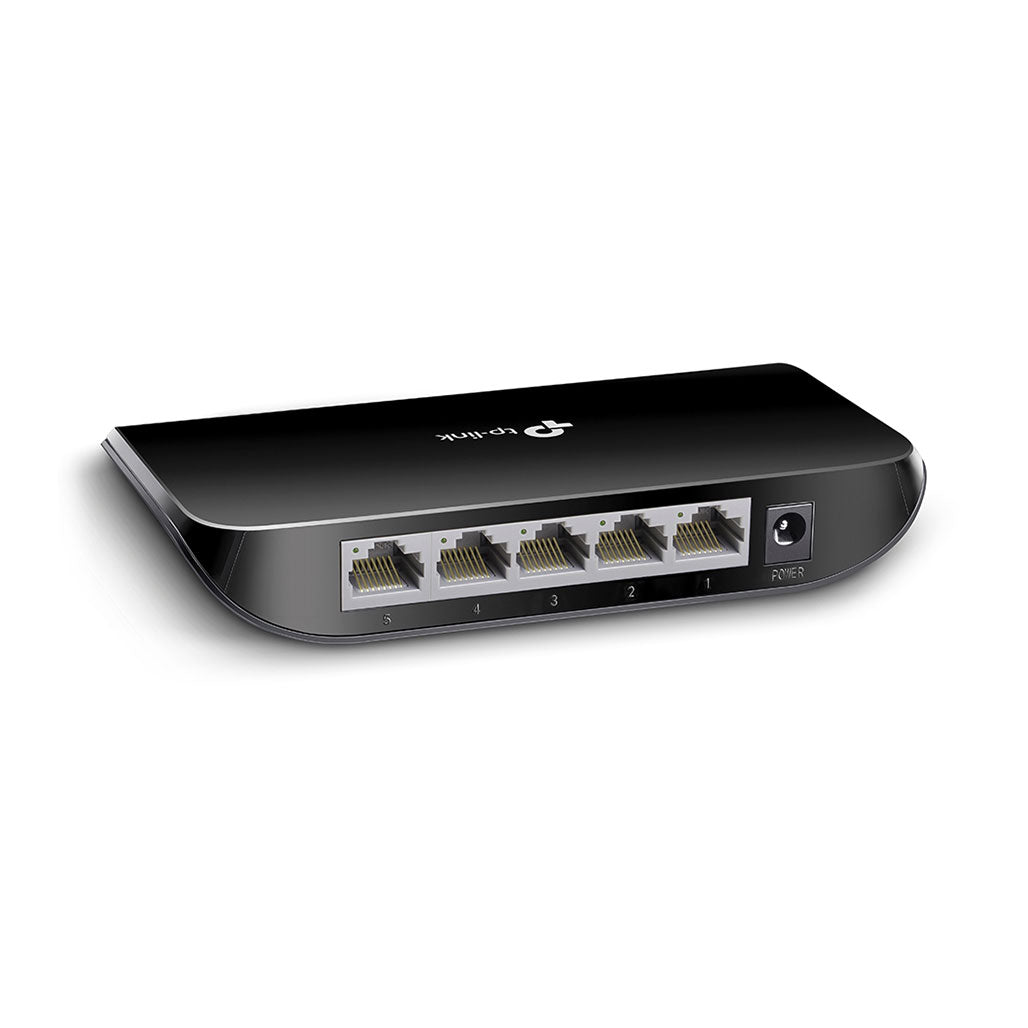

  • 5× 10/100/1000 Mbps RJ45 Ports
  • Auto Negotiation/Auto MDI/MDIX
• Fan Quantity: Fanless
• Physical Security Lock: No
• External Power Supply: External Power Adapter (Output: 9V DC / 0.6A)
• Dimensions (W x D x H): 5.5 × 3.5 × 0.9 in (140 × 88 × 23 mm)
• Max Power Consumption: 2.4W
• Max Heat Dissipation: 8.2 BTU/h

Software Features

• Transmission Method: Store and Forward
• Advanced Functions:
  • Green Technology
  • 802.3x Flow Control
  • Back Pressure
  • 802.1p/DSCP QoS

Others

• Certification: FCC, RoHS
• Package Contents: TL-SG1005D, Power Adapter, Installation Guide
• Environment:
  • Operating Temperature: 0℃~40℃ (32℉~104℉)
  • Storage Temperature: -40℃~60℃ (-40℉~140℉)
  • Operating Humidity: 10%~90% non-condensing
  • Storage Humidity: 5%~90% non-condensing

Conclusion

The TP-Link TL-SG1005D 5-Port Gigabit Desktop Switch is a robust and efficient solution for high-speed networking needs. With its auto-negotiation capabilities, Green Ethernet technology, and compact design, it provides both performance and energy savings. The switch's ease of installation and reliable data transfer features make it an excellent choice for enhancing your network infrastructure with minimal setup hassle.
