The TP-Link Archer AXE75 AXE5400 Tri-Band Gigabit Wi-Fi 6E Router provides state-of-the-art connectivity with speeds reaching up to 5400 Mbps. Designed to handle the most demanding network environments, this router integrates the latest Wi-Fi 6E technology, including a new 6 GHz band that ensures minimal interference and enhanced performance.
With its powerful 1.7 GHz Quad-Core CPU, the Archer AXE75 offers exceptional processing power, making it capable of managing multiple devices and heavy internet usage with ease. The tri-band configuration, consisting of one 2.4 GHz band and two 5 GHz bands, optimizes bandwidth distribution and minimizes congestion. Additionally, the router’s advanced Beamforming technology and six high-performance antennas extend coverage and focus signals directly to connected devices, ensuring a stable connection throughout your home.
The Archer AXE75 excels in modern connectivity needs with its support for OFDMA and MU-MIMO technologies, which increase capacity and reduce latency. This router is equipped with SuperSpeed USB 3.0, enabling rapid file transfers and personal cloud storage options. Integration with TP-Link OneMesh™ simplifies the creation of a seamless mesh network, while HomeShield provides robust security features to protect your network from potential threats.
Key Features
-
Tri-Band AXE5400 Wi-Fi: Delivers speeds up to 5400 Mbps (2402 Mbps on 6 GHz, 2402 Mbps on 5 GHz, and 574 Mbps on 2.4 GHz), ensuring rapid and reliable connectivity for all devices.
-
Wi-Fi 6E Technology: Utilizes the new 6 GHz band for less congestion, increased bandwidth, and near-zero latency, enhancing the performance of high-demand applications.
-
Powerful Processing: Equipped with a 1.7 GHz Quad-Core CPU and ample RAM, allowing for fast and responsive network performance even under heavy loads.
-
Enhanced Coverage: Six high-performance antennas and Beamforming technology optimize signal strength and coverage, reaching previously hard-to-access areas of your home.
-
Advanced Security: TP-Link HomeShield offers real-time IoT protection, a malicious site blocker, and comprehensive parental controls for a safer online environment.
-
Seamless Mesh Networking: OneMesh™ compatibility allows for easy expansion of your network with a single Wi-Fi name, providing consistent coverage throughout your home.
-
SuperSpeed USB 3.0: Facilitates fast file sharing and personal cloud storage with up to 10× faster transfer speeds compared to USB 2.0.
Specifications
Wireless
-
Standards:
- IEEE 802.11ax 6 GHz
- IEEE 802.11ax/ac/n/a 5 GHz
- IEEE 802.11ax/n/b/g 2.4 GHz
-
WiFi Speeds: AXE5400
- 6 GHz: 2402 Mbps (802.11ax)
- 5 GHz: 2402 Mbps (802.11ax)
- 2.4 GHz: 574 Mbps (802.11ax)
-
WiFi Range: 2-3 Bedroom Houses
- 6× Fixed High-Performance Antennas
- Beamforming
- High-Power FEM
-
WiFi Capacity: Very High
- Tri-Band
- OFDMA
- Airtime Fairness
- DFS
- 6 Streams
-
Working Modes: Router Mode, Access Point Mode
Security
-
Network Security:
- SPI Firewall
- Access Control
- IP & MAC Binding
- Application Layer Gateway
-
HomeShield Security:
- Real-Time IoT Protection
- Malicious Site Blocker
- Intrusion Prevention System
- DDoS Attack Prevention
- Home Network Scanner
-
Guest Network:
- 1× 6 GHz Guest Network
- 1× 5 GHz Guest Network
- 1× 2.4 GHz Guest Network
-
VPN Server:
-
VPN Client:
-
WiFi Encryption:
- WPA
- WPA2
- WPA3
- WPA/WPA2-Enterprise (802.1x)
Hardware
-
Processor: 1.7 GHz Quad-Core CPU
-

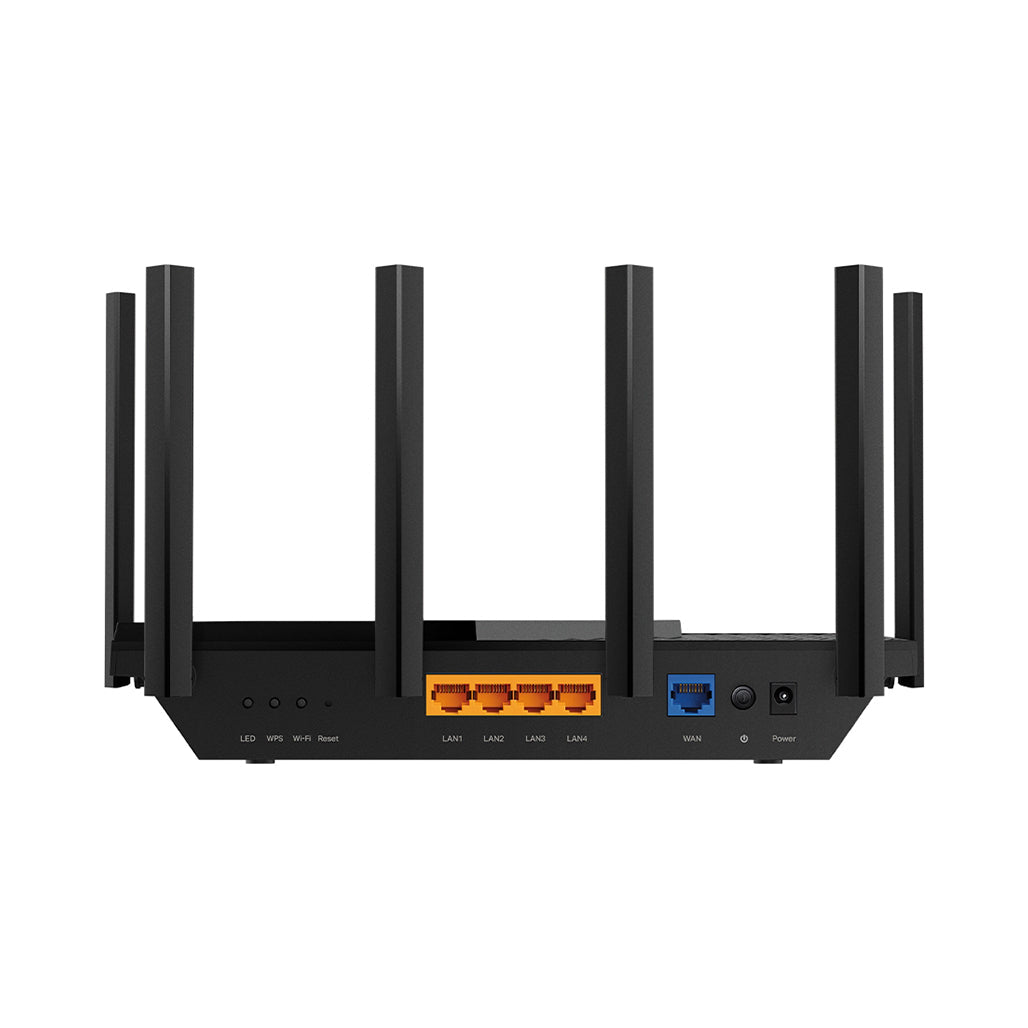

Ethernet Ports:
- 1× Gigabit WAN Port
- 4× Gigabit LAN Ports
-
USB Support:
- 1× USB 3.0 Port
- Supported Partition Formats: NTFS, exFAT, HFS+, FAT32
- Supported Functions: Apple Time Machine, FTP Server, Media Server, Samba Server
-
Buttons:
- Wi-Fi On/Off Button
- Power On/Off Button
- LED On/Off Button
- WPS Button
- Reset Button
-
Power: 12 V ⎓ 2.5 A
Software
-
Protocols: IPv4, IPv6
-
Service Kits: HomeShield
-
OneMesh™: Supported
-
Parental Controls: HomeShield Parental Controls
- Custom Profiles
- Professional Content Filter Library
- Family Time
- Bedtime
- Off Time
- Time Rewards
- Family Online Time Ranking
- Pause the Internet
- Weekly and Monthly Reports
-
WAN Types:
- Dynamic IP
- Static IP
- PPPoE
- PPTP
- L2TP
-
Quality of Service: QoS by Device
-
Cloud Service: Auto Firmware Upgrade, TP-Link ID, DDNS
-
NAT Forwarding:
- Port Forwarding
- Port Triggering
- DMZ
- UPnP
- Virtual Server
-
IPTV:
- IGMP Proxy
- IGMP Snooping
- Bridge
- Tag VLAN
-
DHCP:
- Address Reservation
- DHCP Client List
- Server
-
DDNS:
-
Management: Tether App, Webpage
Other
-
System Requirements: Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser; Cable or DSL Modem (if needed); Subscription with an internet service provider (for internet access)
-
Certifications: FCC, RoHS
-
Environment:
- Operating Temperature: 0℃~40℃ (32℉ ~104℉)
- Operating Humidity: 10%~90% non-condensing
Test Data
-
WiFi Transmission Power:
-
FCC:
- ≤29dBm (2.4 GHz)
- ≤28dBm (5 GHz)
- ≤22dBm (6 GHz)
-
CE:
- ≤17dBm (2.4 GHz)
- ≤27dBm (5 GHz)
- ≤20dBm (6 GHz)
-
WiFi Reception Sensitivity:
-
2.4 GHz:
- 11ax HE20 MCS0: -95dBm
- 11ax HE20 MCS11: -64dBm
- 11ax HE40 MCS0: -92dBm
- 11ax HE40 MCS11: -62dBm
-
5 GHz:
- 11ax HE20 MCS0: -94dBm
- 11ax HE20 MCS11: -63dBm
- 11ax HE40 MCS0: -91dBm
- 11ax HE40 MCS11: -60dBm
- 11ax HE80 MCS0: -88dBm
- 11ax HE80 MCS11: -57dBm
- 11ax HE160 MCS0: -85dBm
- 11ax HE160 MCS11: -54dBm
-
6 GHz:
- 11ax HE20 MCS0: -93dBm
- 11ax HE20 MCS11: -62dBm
- 11ax HE40 MCS0: -90dBm
- 11ax HE40 MCS11: -59dBm
- 11ax HE80 MCS0: -87dBm
- 11ax HE80 MCS11: -56dBm
- 11ax HE160 MCS0: -84dBm
- 11ax HE160 MCS11: -53dBm
Conclusion
The TP-Link Archer AXE75 AXE5400 Tri-Band Gigabit Wi-Fi 6E Router is a powerful and future-proof networking solution. With its advanced tri-band capabilities, cutting-edge Wi-Fi 6E technology, and high-speed performance, it provides an exceptional networking experience for modern homes. Its extensive coverage, robust security features, and ease of integration with OneMesh™ make it an ideal choice for users looking to enhance their home network.
