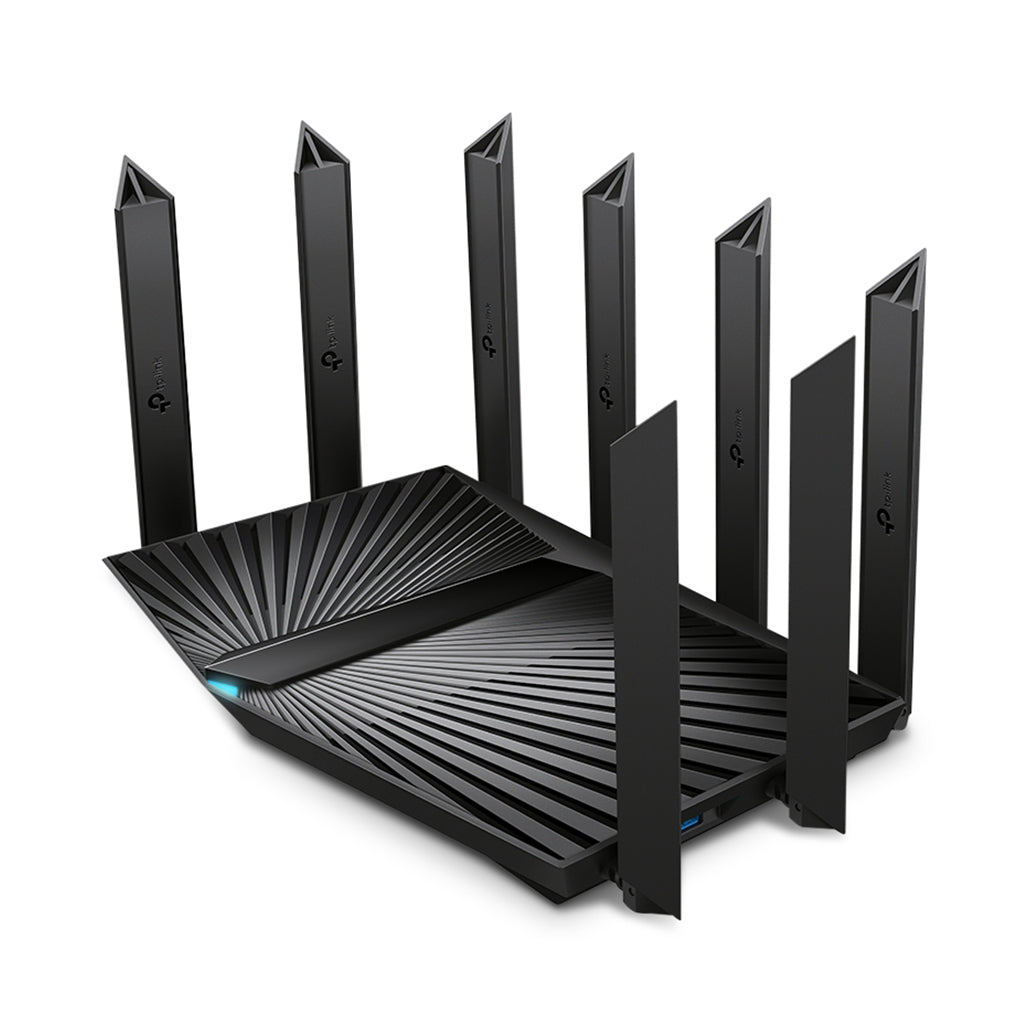

The TP-Link Archer AX95 AX7800 Tri-Band 8-Stream Wi-Fi 6 Router offers cutting-edge Wi-Fi performance with its tri-band setup and high-speed capabilities. Featuring speeds up to 7.8 Gbps, this router ensures smooth and rapid data transfer for all your devices, whether you are browsing, streaming, or gaming. The tri-band design includes two 5 GHz bands and one 2.4 GHz band, enabling efficient management of network traffic and reducing congestion.
Equipped with eight high-gain antennas and Beamforming technology, the Archer AX95 delivers extensive coverage throughout your home. Its advanced Broadcom™ chipset and 1.7 GHz quad-core processor handle multiple data streams with ease, providing stable connections even under heavy loads. The router supports OFDMA and MU-MIMO technologies to manage up to 200+ devices simultaneously, ensuring each device receives optimal performance. Integration with TP-Link OneMesh™ allows for easy creation of a mesh network, extending coverage without the need for additional network names.
Key Features
-
Tri-Band AX7800 WiFi: Provides speeds up to 7.8 Gbps (4804 Mbps + 2402 Mbps + 574 Mbps), enhancing the overall network performance for a faster browsing, streaming, and downloading experience.
-
Ultra Connectivity: Includes a 2.5 Gbps WAN/LAN port, a 1 Gbps WAN/LAN port, three Gigabit LAN ports, and two USB ports for maximum flexibility and increased throughput.
-

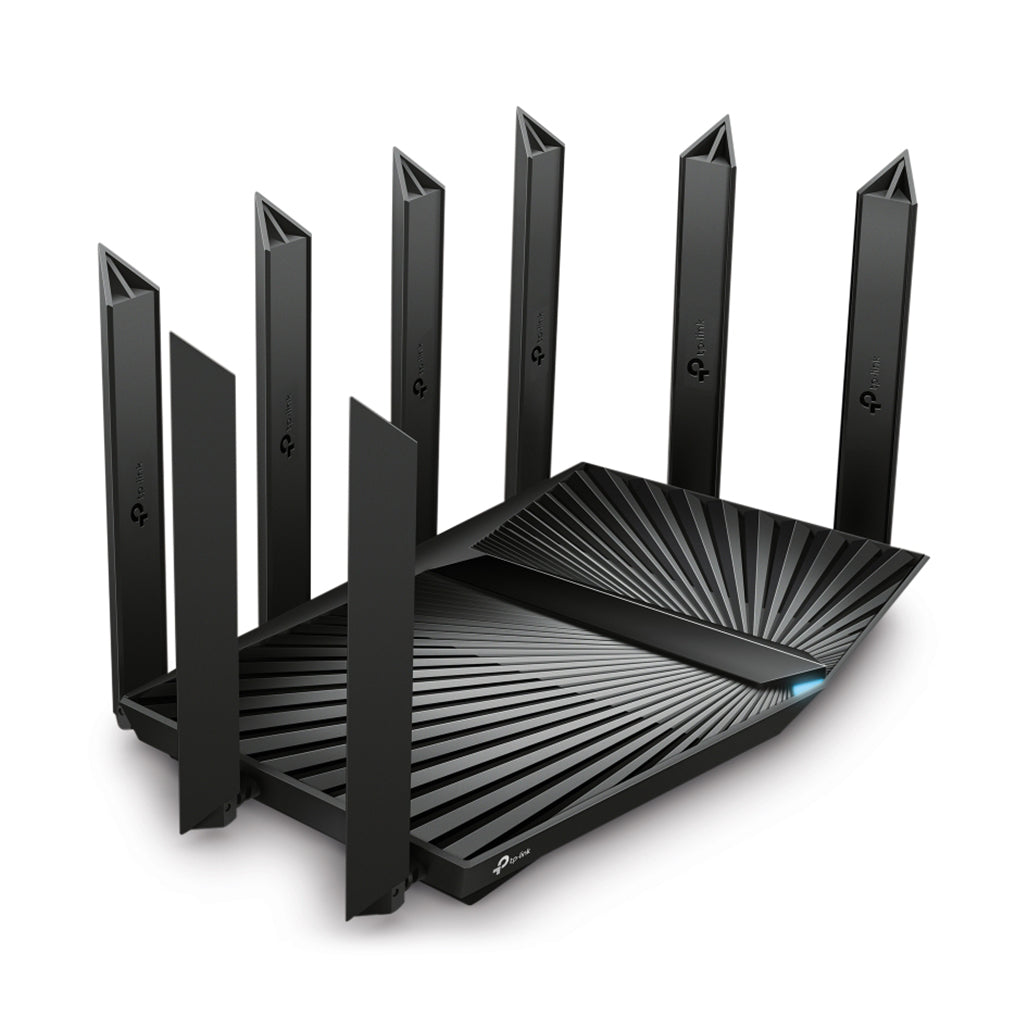

Maximized Coverage: Features eight high-gain antennas with Beamforming technology to ensure broad and reliable coverage across your home.
-
Advanced Processing Power: Driven by a 1.7 GHz quad-core processor, delivering robust and smooth operation even with numerous devices and applications in use.
-
OneMesh™ Compatibility: Facilitates the creation of a seamless mesh network by connecting to TP-Link OneMesh™ extenders, maintaining a single network name throughout your home.
-
HomeShield Security: Enhances network protection with advanced security features, including WPA3 encryption, real-time IoT protection, and comprehensive parental controls.
Specifications
Wireless
-
Standards: Wi-Fi 6
- IEEE 802.11ax/ac/n/a 5 GHz
- IEEE 802.11ax/n/b/g 2.4 GHz
-
WiFi Speeds: AX7800
- 5 GHz-1: 4804 Mbps (802.11ax, HE160)
- 5 GHz-2: 2402 Mbps (802.11ax)
- 2.4 GHz: 574 Mbps (802.11ax)
-
WiFi Range: 4 Bedroom Houses
- 8× Fixed High-Performance Antennas
- Beamforming
- High-Power FEM
- 4T4R
-
WiFi Capacity: Very High
- Tri-Band
- 4×4 MU-MIMO
- OFDMA
- Airtime Fairness
- DFS
- 8 Streams
-
Working Modes: Router Mode, Access Point Mode
Security
-
Network Security:
- SPI Firewall
- Access Control
- IP & MAC Binding
- Application Layer Gateway
-
HomeShield Security:
- Real-Time IoT Protection
- Malicious Site Blocker
- Intrusion Prevention System
- DDoS Attack Prevention
- Home Network Scanner
-
Guest Network:
- 1× 5 GHz-1 Guest Network
- 1× 5 GHz-2 Guest Network
- 1× 2.4 GHz Guest Network
-

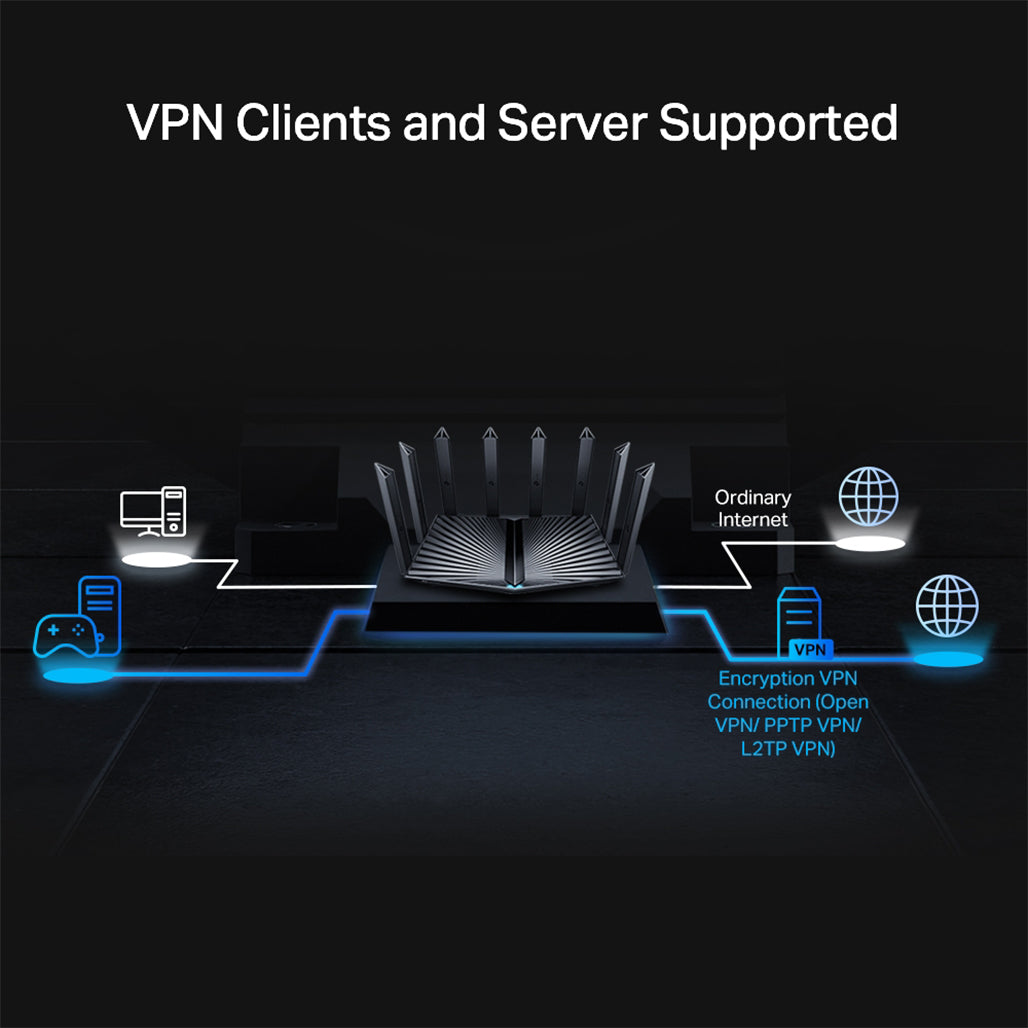

VPN Server:
-
VPN Client:
-
WiFi Encryption:
- WPA
- WPA2
- WPA3
- WPA/WPA2-Enterprise (802.1x)
Hardware
-
Processor: 1.7 GHz Quad-Core CPU
-

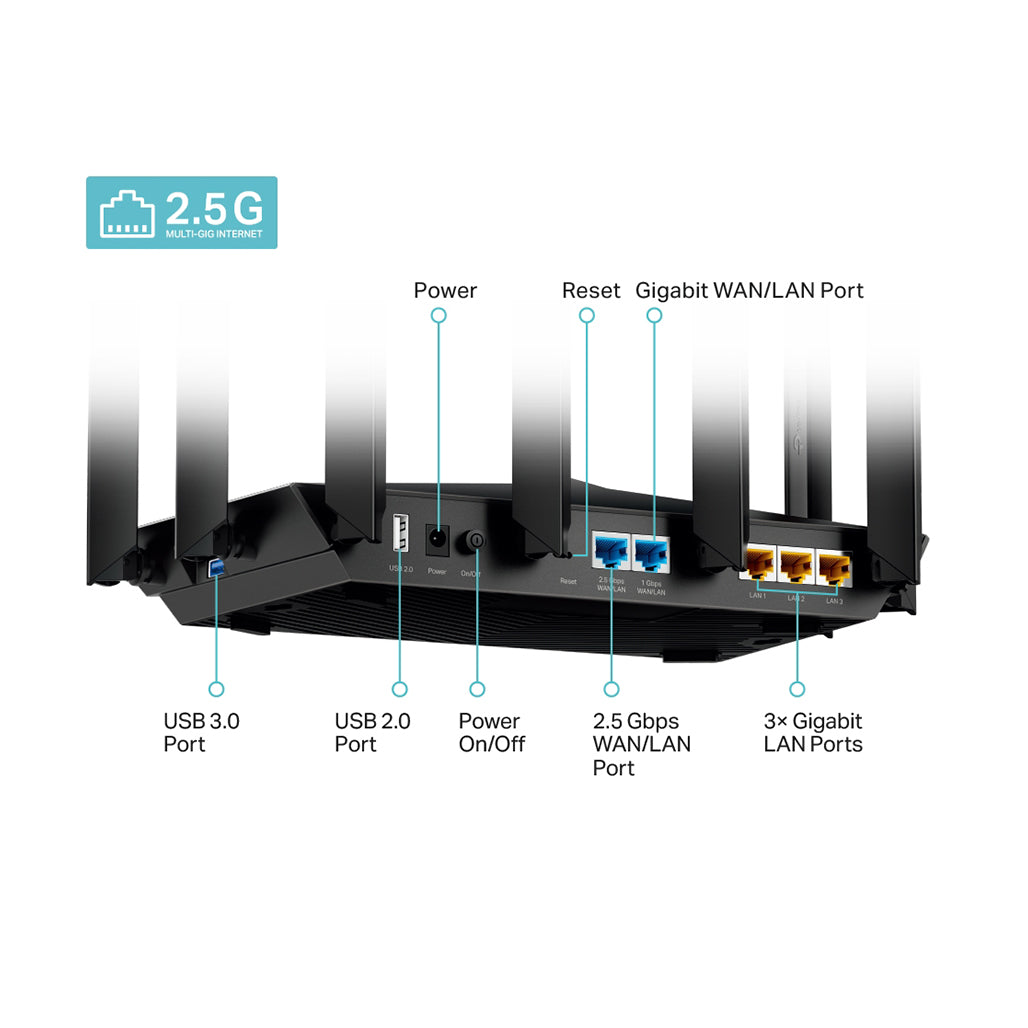

Ethernet Ports:
- 1× 2.5 Gbps WAN/LAN Port
- 1× 1 Gbps WAN/LAN Port
- 3× 1 Gbps LAN Ports
-
USB Support:
- 1× USB 3.0 Port
- 1× USB 2.0 Port
- Supported Partition Formats: NTFS, exFAT, HFS+, FAT32
- Supported Functions: FTP Server, Media Server, Samba Server
-
Buttons:
- LED On/Off Button
- WPS Button
- Wi-Fi On/Off Button
- Power On/Off Button
- Reset Button
-
Power: 12 V ⎓ 3.3 A
Software
-
Protocols: IPv4, IPv6
-
Service Kits: HomeShield
-
OneMesh™: OneMesh™ Supported
-
Parental Controls: HomeShield Parental Controls
-
WAN Types:
- Dynamic IP
- Static IP
- PPPoE
- PPTP
- L2TP
-
Quality of Service: QoS by Device
-
Cloud Service: Auto Firmware Upgrade, TP-Link ID, DDNS
-
NAT Forwarding:
- Port Forwarding
- Port Triggering
- DMZ
- UPnP
-
IPTV:
- IGMP Proxy
- IGMP Snooping
- Bridge
- Tag VLAN
-
DHCP:
- Address Reservation
- DHCP Client List
- Server
-
DDNS:
-
Management:
Other
-
System Requirements: Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser; Cable or DSL Modem (if needed); Subscription with an internet service provider (for internet access)
-
Certifications: FCC, CE, RoHS
-
Environment:
- Operating Temperature: 0℃~40℃ (32℉ ~104℉)
- Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
Test Data
-
WiFi Transmission Power:
-
FCC:
- ≤30dBm (5.17GHz~5.25GHz)
- ≤23dBm (5.25GHz~5.35GHz)
- ≤23dBm (5.49GHz~5.725GHz)
- ≤28dBm (5.725GHz~5.825GHz)
- ≤28dBm (2.4GHz)
-
CE:
- ≤23dBm EIRP (5.17GHz~5.35GHz)
- ≤30dBm EIRP (5.47GHz~5.725GHz)
- ≤20dBm EIRP (2.4GHz)
-
WiFi Reception Sensitivity:
-
2.4 GHz:
- 11ac VHT20 MCS0: -98dBm
- 11ac VHT20 MCS11: -66dBm
- 11ac VHT40 MCS0: -96dBm
- 11ac VHT40 MCS11: -64dBm
- 11ax HE20 MCS0: -95dBm
- 11ax HE20 MCS11: -64dBm
- 11ax HE40 MCS0: -93dBm
- 11ax HE40 MCS11: -62dBm
-
5 GHz:
- 11ac VHT20 MCS0: -94dBm
- 11ac VHT20 MCS11: -63dBm
- 11ac VHT40 MCS0: -93dBm
- 11ac VHT40 MCS11: -61dBm
- 11ac VHT80 MCS0: -89dBm
- 11ac VHT80 MCS11: -58dBm
- 11ac VHT160 MCS0: -84dBm
- 11ac VHT160 MCS11: -53dBm
- 11ax HE20 MCS0: -92dBm
- 11ax HE20 MCS11: -60dBm
- 11ax HE40 MCS0: -89dBm
- 11ax HE40 MCS11: -58dBm
- 11ax HE80 MCS0: -86dBm
- 11ax HE80 MCS11: -55dBm
- 11ax HE160 MCS0: -84dBm
- 11ax HE160 MCS11: -53dBm
Conclusion
The TP-Link Archer AX95 AX7800 Tri-Band 8-Stream Wi-Fi 6 Router stands out with its exceptional performance and advanced features. Designed to handle the demands of modern home networks, it offers high-speed connectivity, extensive coverage, and robust security measures. This router is ideal for users seeking a reliable and future-proof networking solution that can support a multitude of devices and applications seamlessly.
