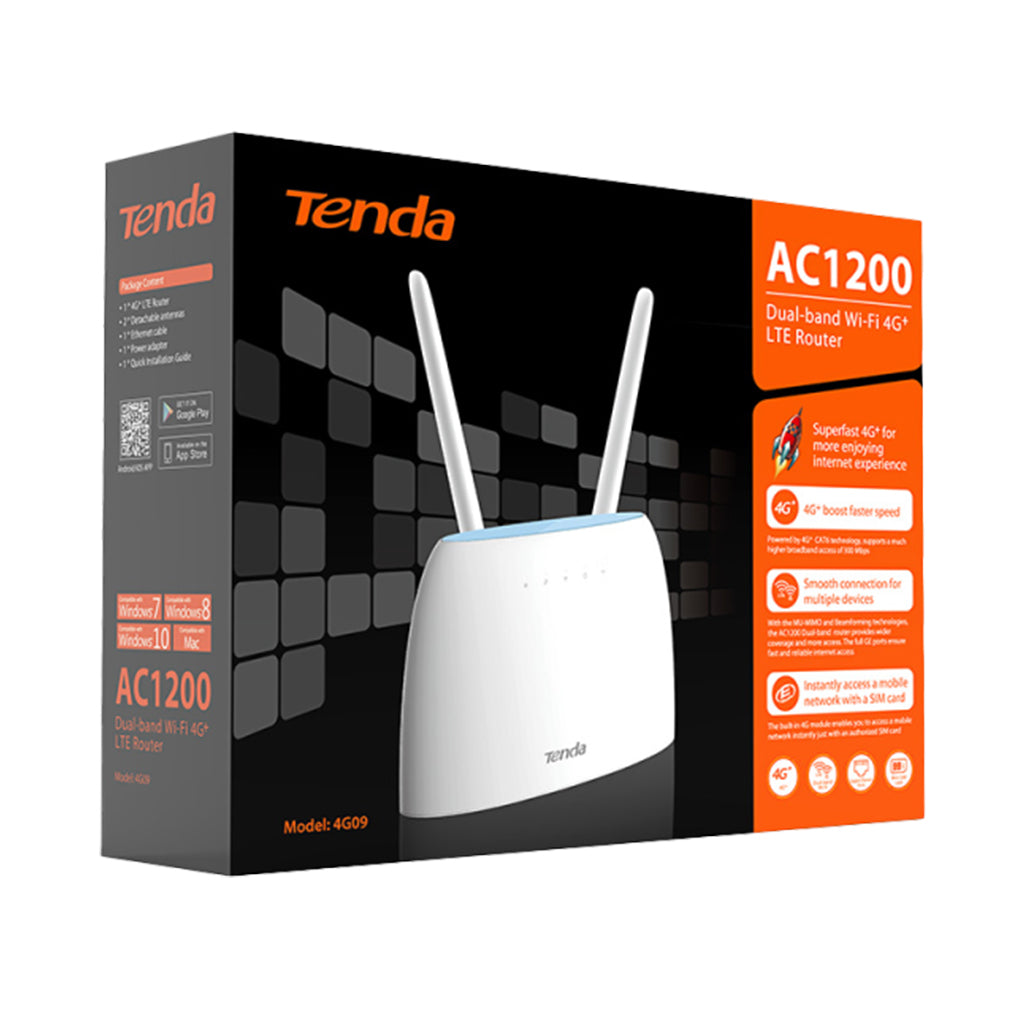

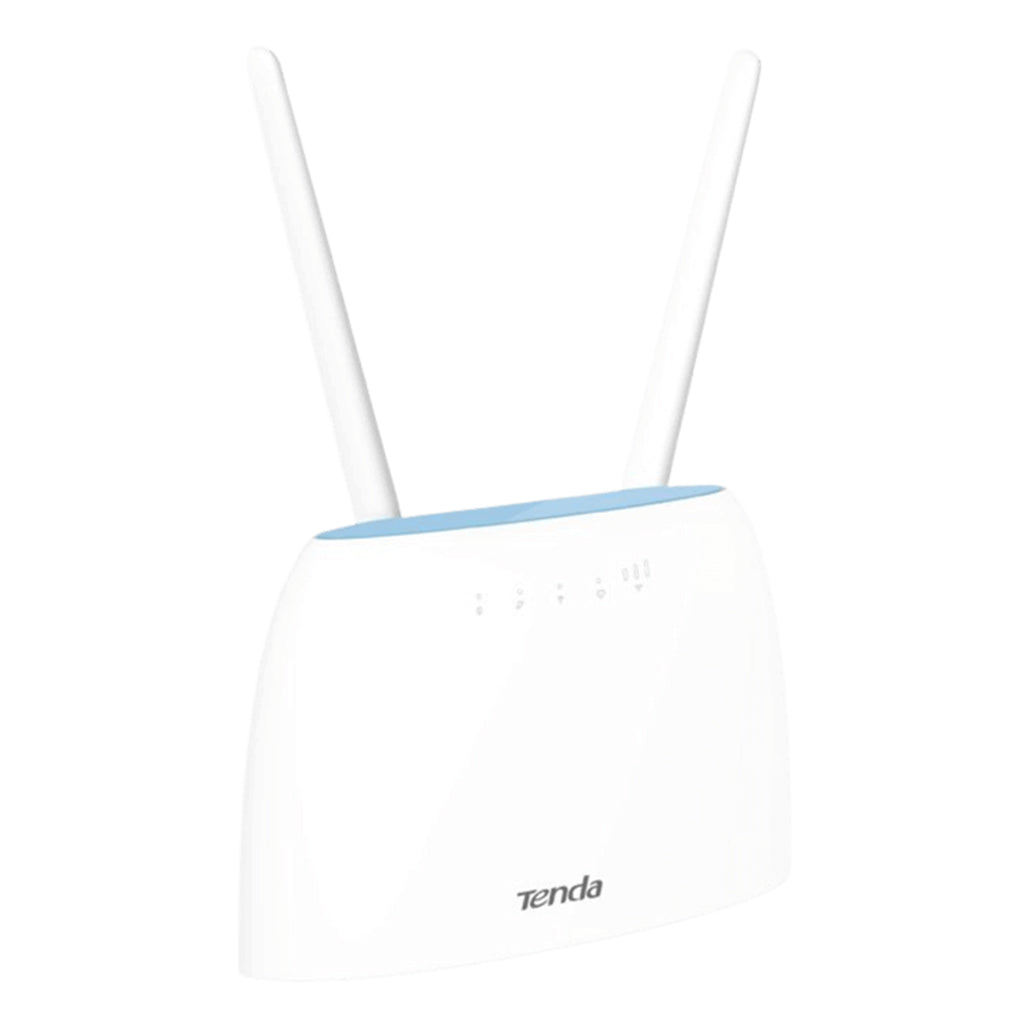

Tenda 4G09 AC1200 Dual-Band 4G+ LTE Router

Get high-speed internet wherever you are with the Tenda 4G09. It’s built to use mobile networks (4G/3G) via a SIM card, while also offering dual-band AC1200 WiFi so you can share that connection on both 2.4 GHz and 5 GHz. With CAT6 LTE you get faster download/upload speeds, strong signal through walls via Beamforming+, and full gigabit Ethernet ports for wired devices. Ideal for remote areas, mobile setups, or as a backup for unreliable fixed broadband.

Key Features

• 4G+ LTE (Cat-6) support for high mobile data speeds

• Dual-band WiFi AC1200: fast wireless on both 2.4 GHz & 5 GHz bands

• Detachable external 4G/3G antennas + internal WiFi antennas to boost signal strength

• Gigabit Ethernet ports for wired devices, ensuring maximum throughput

• Beamforming+ to focus wireless signals and improve wall penetration

• Supports auto-APN, roaming, SMS / USSD, 4G/3G fallback

• WPS / Reset buttons, LED indicators for signal, WiFi, LAN, etc.

• Plug-and-play SIM setup; strong security with WPA/WPA2

Specs

• LTE category: Cat-6 with maximum downlink ~300 Mbps, uplink ~50 Mbps

• 4G/3G standards supported including FDD-LTE, TDD-LTE, WCDMA

• Dual-band WiFi: 802.11b/g/n on 2.4 GHz (≈300 Mbps), 802.11ac on 5 GHz (≈867 Mbps)

• Transmit Power: ~20 dBm on 2.4 GHz; ~23 dBm on 5 GHz

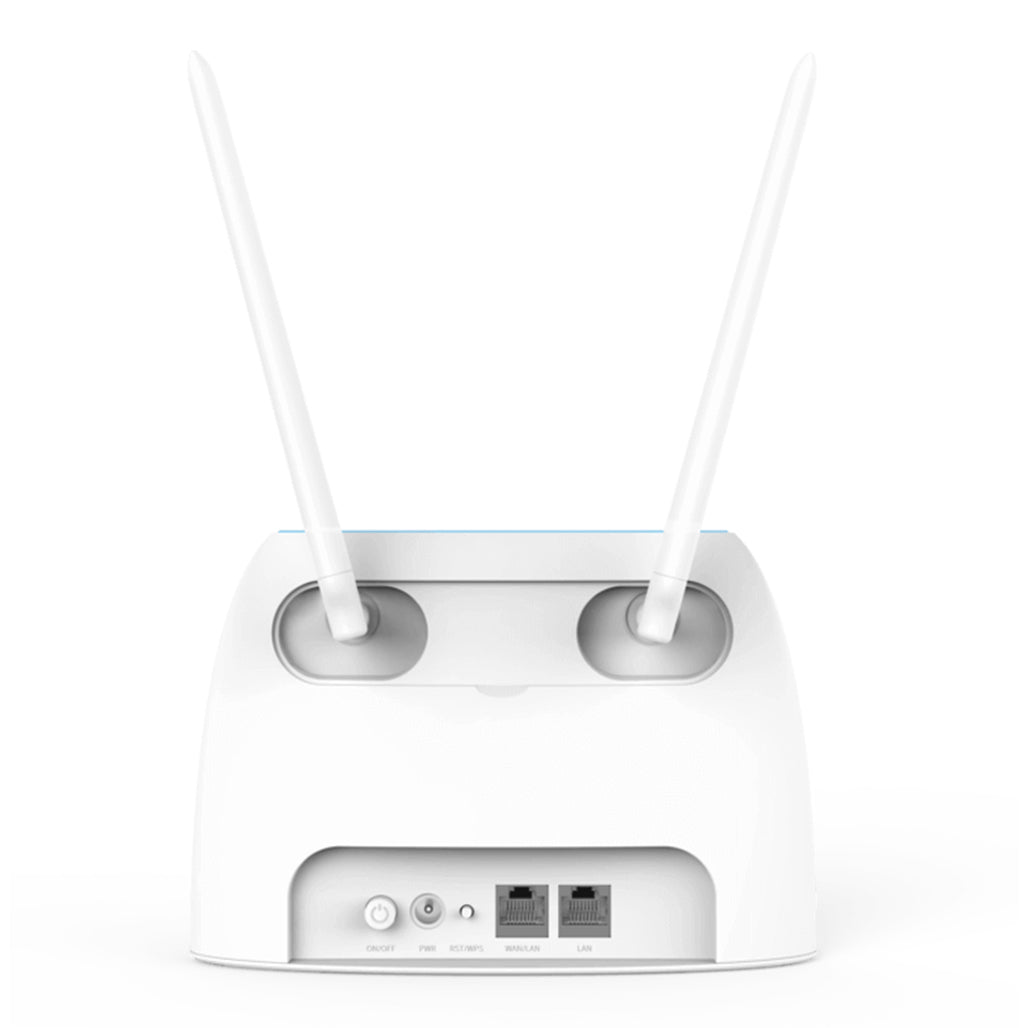

• Ports: 1 × Gigabit LAN/WAN; 1 × Gigabit LAN

• SIM slot: 2FF (standard full-size SIM)

• Antennas: 2 external LTE/4G-3G antennas, 2 internal WiFi antennas

• Buttons: Power on/off; WPS / Reset

• LED indicators: Power, WiFi, LAN/WAN, and 3-bar signal strength for mobile network

• Size: about 185 × 126 × 60 mm

• Weight: approx. 350 g

• Power Supply: AC 100-240 V ~ 50/60 Hz input; DC 12 V ⎓ 1.5 A output

• WAN Types: mobile (4G/3G) or wired internet

• Operating Temp: 0 °C to 40 °C; Storage Temp: −30 °C to 70 °C

• Humidity: Operates at 10-90% RH non-condensing; storage 5-90% RH
