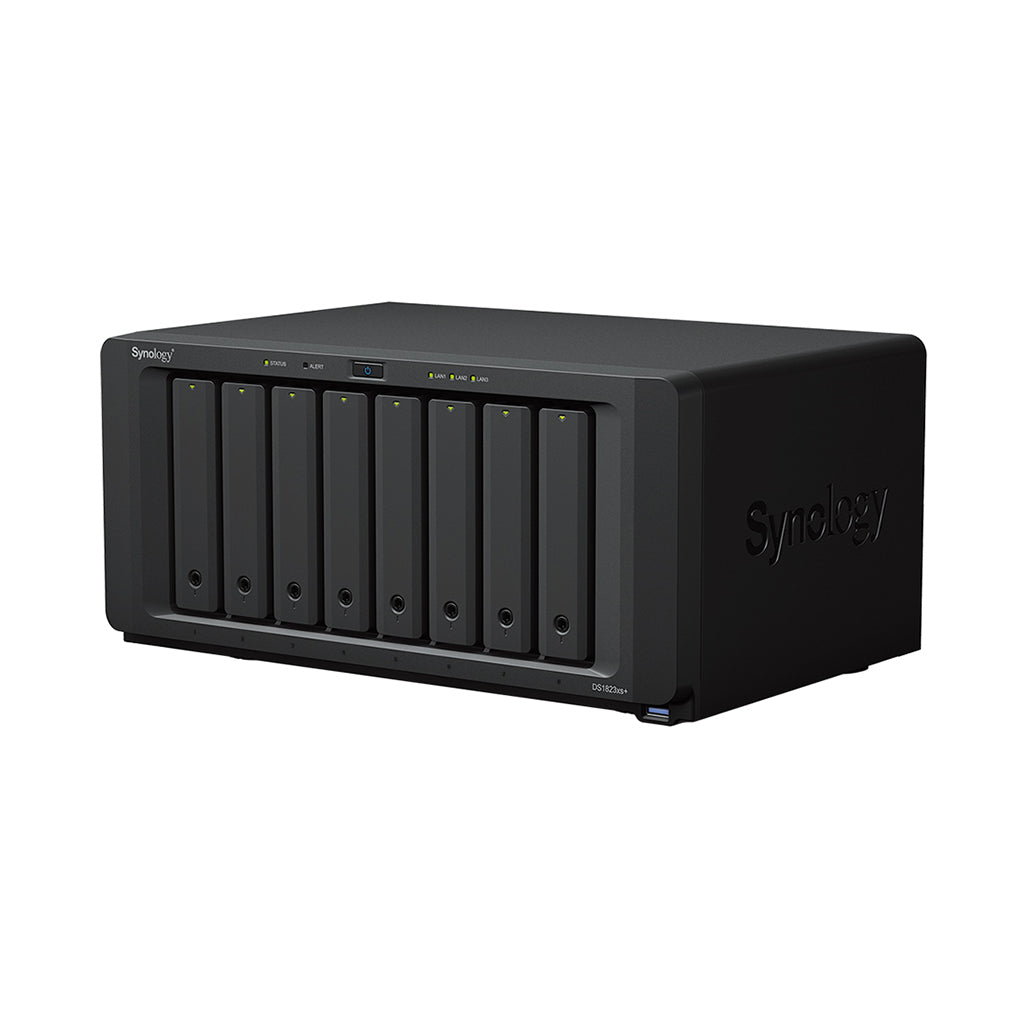

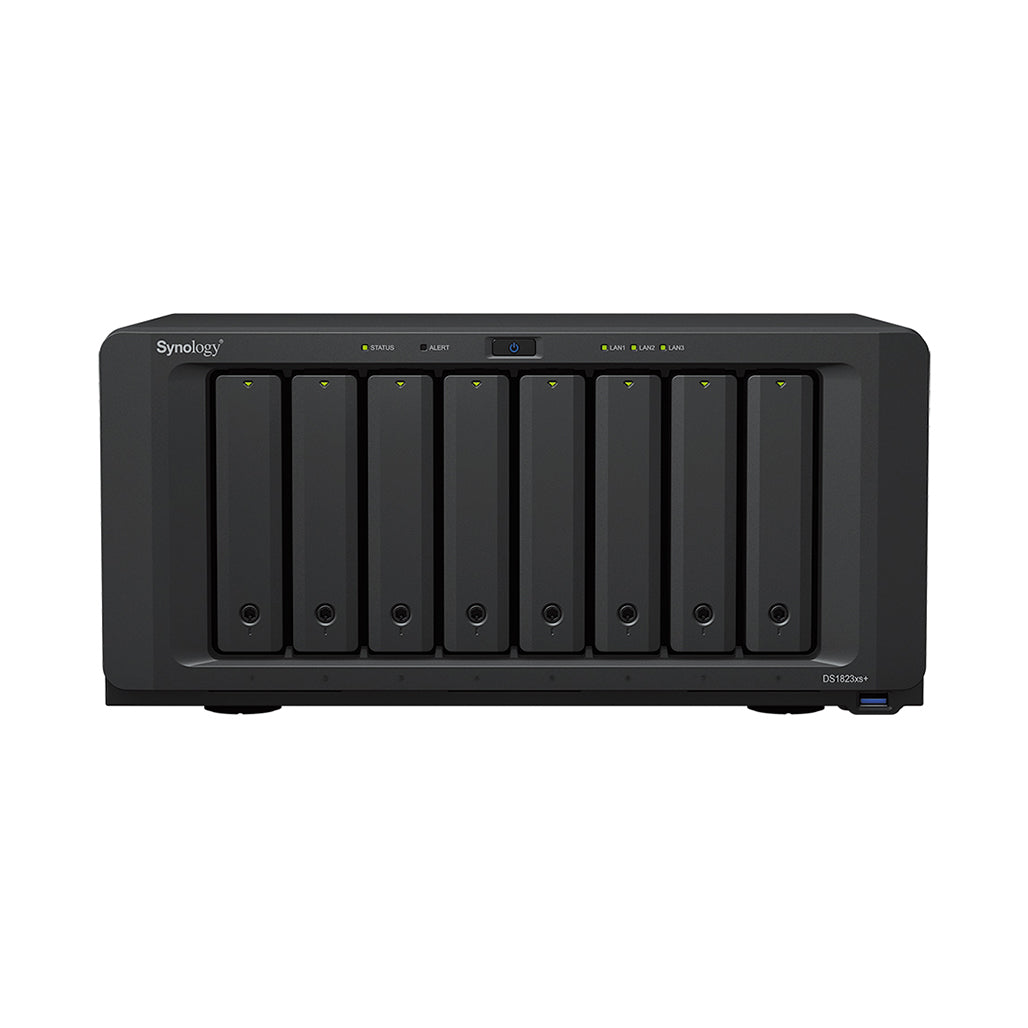

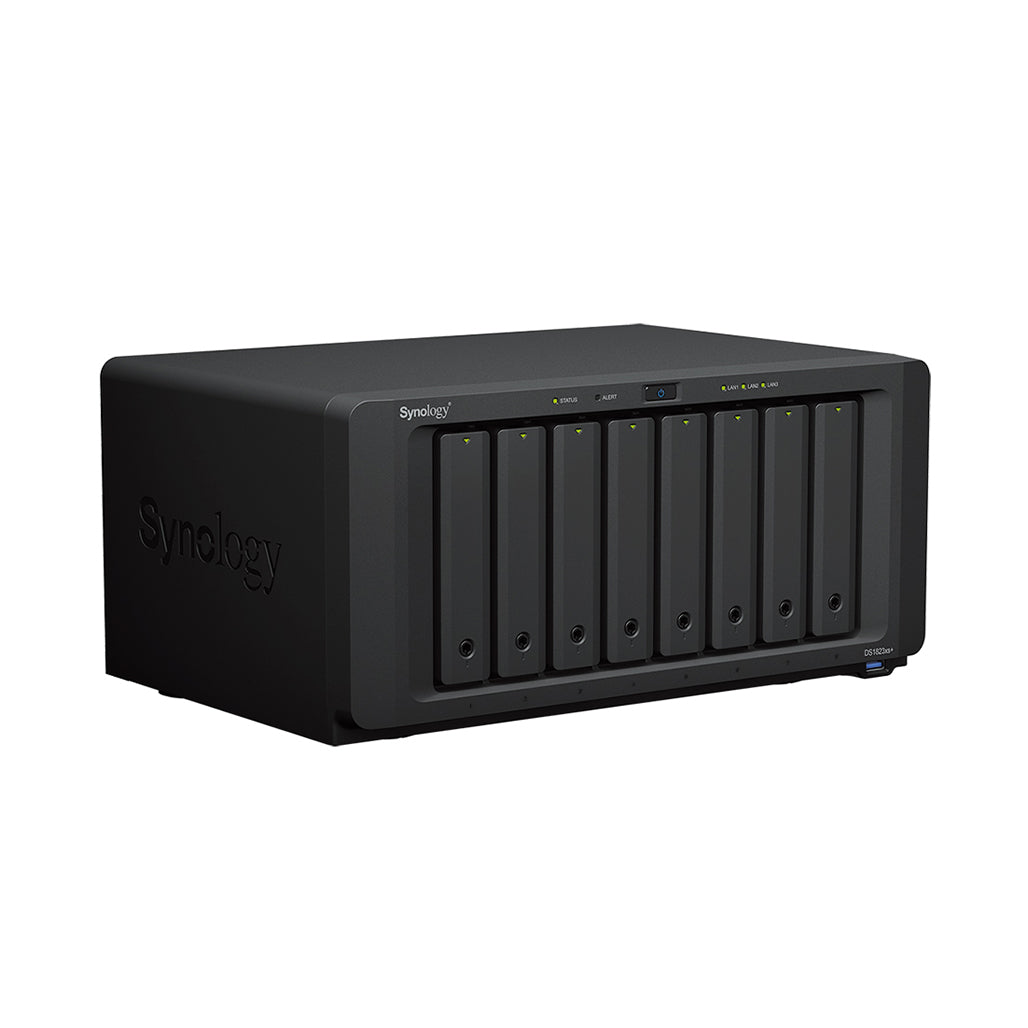

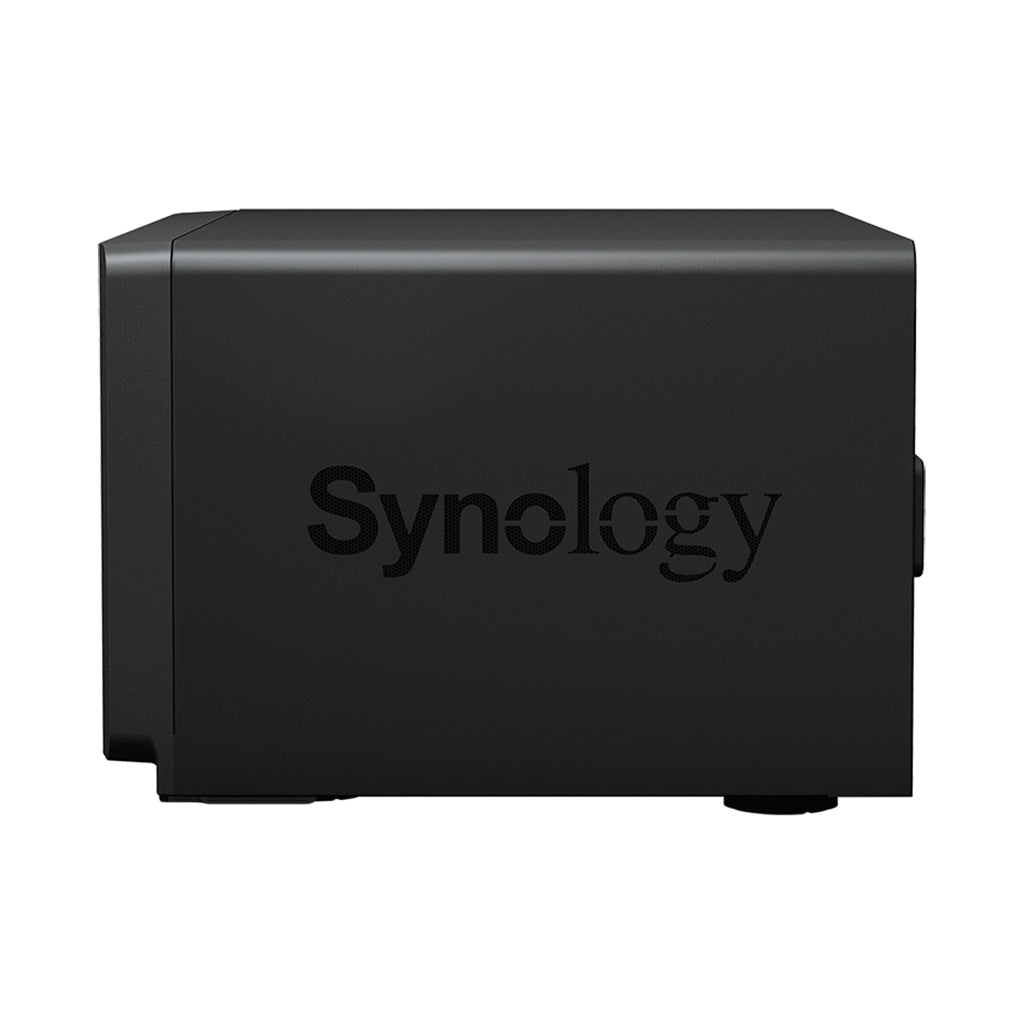

Synology DS1823xs+ 8-Bay NAS DiskStation – High-Performance Central Storage Server with Expandable Connectivity and Flexible Backup Solutions

The Synology DS1823xs+ 8-Bay NAS DiskStation is designed as a high-performance central storage server ideal for a variety of business applications. This NAS unit provides reliable shared data storage, endpoint and server backup, virtual machine storage, and surveillance management. Its compact design makes it a suitable choice for environments lacking a dedicated server rack or data center.

Equipped with robust hardware, the DS1823xs+ offers superior performance with its AMD Ryzen V1780B processor and 8 GB DDR4 ECC memory. The server supports expansion with up to 32 GB of RAM and features two M.2 NVMe SSD slots for read/write cache, significantly enhancing HDD performance. The device supports a range of connectivity options, including 1/10/25GbE or Fibre Channel ports, ensuring it meets various networking needs. With a maximum throughput of 3,100 MB/s read and 2,600 MB/s write speeds, it is capable of handling intensive workloads.

For data management, the DS1823xs+ offers a flexible file server that enables seamless access to business data across different devices. It supports private cloud functionality, allowing employees to access and sync files through mobile apps, desktop clients, and web interfaces. Data security is ensured with built-in snapshot technology, protecting files from accidental alterations and malware. Additionally, the NAS features robust cross-site syncing capabilities, facilitating efficient data updates across multiple locations. The system is compatible with a wide range of protocols and supports various backup and business application options, making it a comprehensive solution for modern data management needs.

Key Features:

• High-Performance Processor: The DS1823xs+ is powered by an AMD Ryzen V1780B CPU, providing a base frequency of 3.35 GHz and turbo frequency of 3.6 GHz with 4 cores.
• Expandable Memory: Comes with 8 GB DDR4 ECC RAM, expandable up to 32 GB, ensuring smooth performance and stability.
• Storage Flexibility: Features 8 drive bays with support for 3.5" SATA HDDs, 2.5" SATA SSDs, and M.2 NVMe SSDs. Hot-swappable drives enhance maintenance without downtime.
• High-Speed Networking: Offers 2 x 1GbE LAN ports, 1 x 10GbE LAN port, and an option to add 25GbE or Fibre Channel ports for high-speed connectivity.
• Efficient Cooling: Includes two 120 mm system fans with multiple speed modes and easy replacement.
• Advanced Backup and Recovery: Supports various backup solutions including Hyper Backup and Synology High Availability for data protection and system reliability.
• Private Cloud Capabilities: Enables seamless file sharing and syncing through mobile apps, desktop clients, and browser-based interfaces, with detailed access and sharing permissions.

Specifications:

• CPU: AMD Ryzen V1780B, 4 cores, 3.35 GHz (base) / 3.6 GHz (turbo), 64-bit, Hardware Encryption Engine (AES-NI) supported.
• Memory: 8 GB DDR4 ECC SODIMM (1 x 8 GB), 2 slots, expandable up to 32 GB.
• Storage: 8 drive bays, expandable to 18 with DX517 units, 2 M.2 NVMe SSD slots, supports 3.5" SATA HDD, 2.5" SATA SSD, and M.2 2280 NVMe SSD.

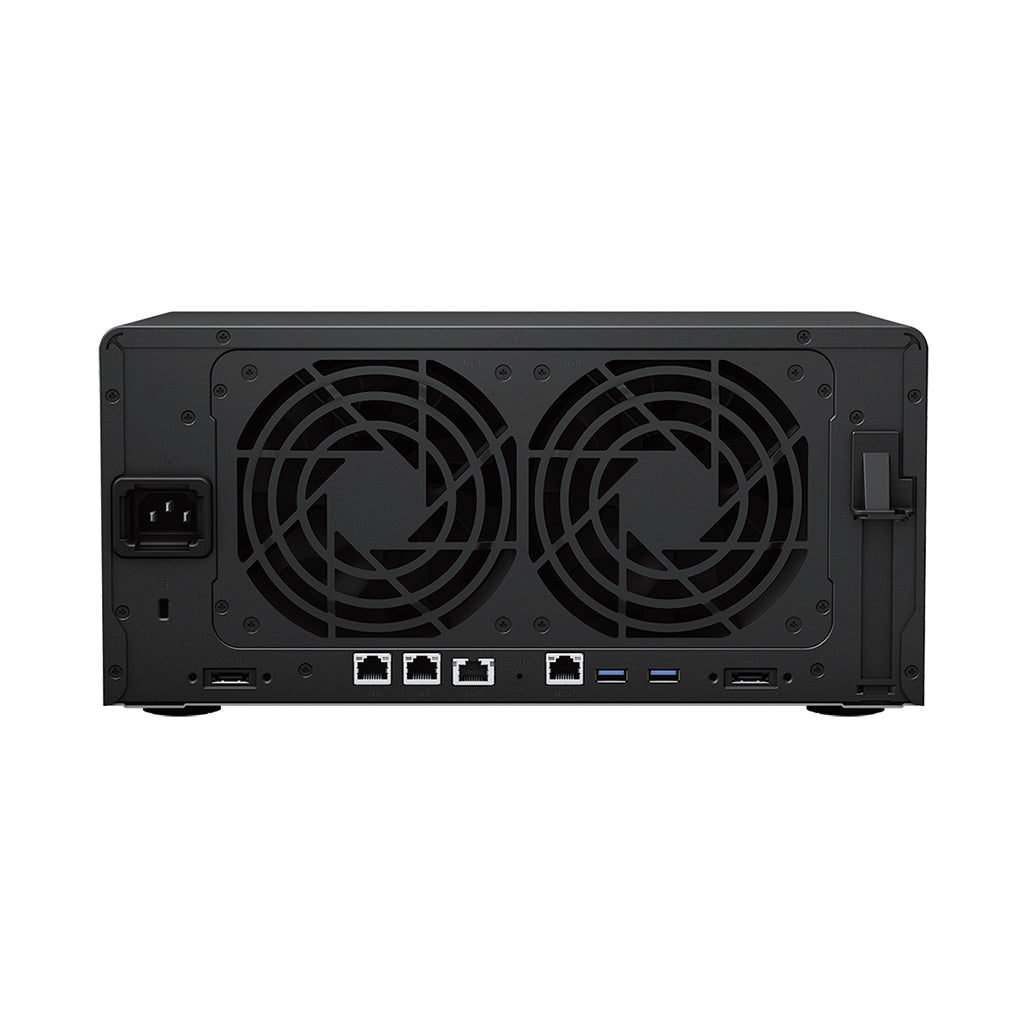

• Networking: 2 x RJ-45 1GbE LAN ports, 1 x RJ-45 10GbE LAN port, 1 x Out-of-Band Management LAN port.
• External Ports: 3 x USB 3.2 Gen 1, 2 x eSATA.
• PCIe Expansion: 1 x Gen3 x8 slot.
• Size: 166 mm (H) x 343 mm (W) x 243 mm (D).
• Weight: 6.2 kg.
• Power Supply: 250 W, AC 100V to 240V, 50/60 Hz.
• Noise Level: 23.6 dB(A) under normal operation.
• Operating Temperature: 0°C to 40°C.
• Storage Temperature: -20°C to 60°C.
• Relative Humidity: 5% to 95% RH.
• Warranty: 5 years.
• Certification: FCC, CE, BSMI, VCCI, RCM, EAC, CCC, KC.
• Packaging Content: Main Unit, Accessory Pack, AC Power Cord, RJ-45 LAN Cable (2), Quick Installation Guide.

The Synology DS1823xs+ delivers a comprehensive storage solution with advanced performance, flexibility, and robust data protection features, making it an optimal choice for business environments requiring reliable and efficient data management.
