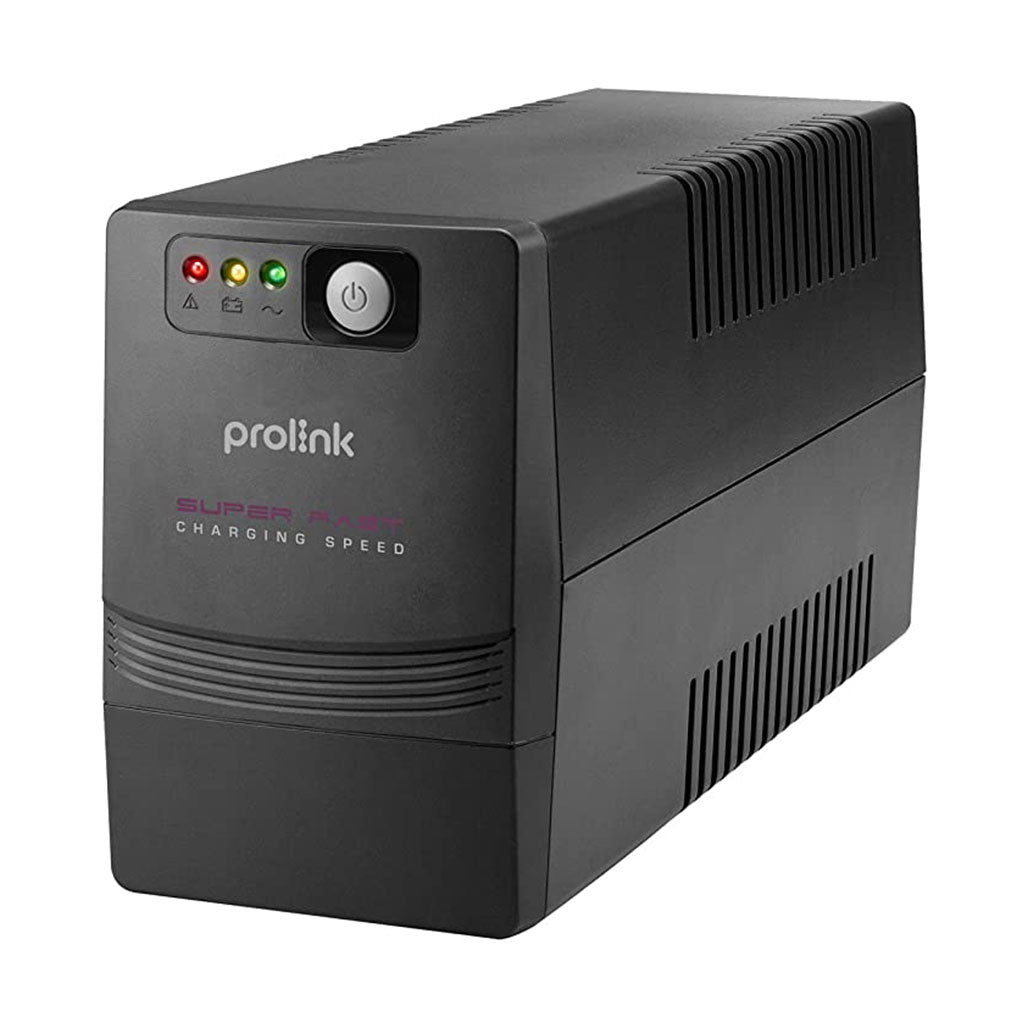

The Prolink PRO851SFCU Super Fast Charging Line Interactive UPS is designed to deliver reliable power protection with an 850VA capacity. This compact UPS is ideal for small to medium-sized setups, providing essential backup power and surge protection. With its advanced line-interactive technology, the PRO851SFCU ensures your devices remain operational during power disruptions.
Featuring a rapid transfer time of 2-6ms and a simulated sinewave output, the PRO851SFCU maintains consistent power supply to connected equipment. Its single 12V/10 Ah battery recharges quickly, reaching 90% capacity in just 2-4 hours. The UPS is equipped with clear alarm and indicator systems to monitor the status of your power and identify any issues promptly.
Key Features:
-
Capacity: 850VA, suitable for smaller devices and setups.
-
Dimension & Weight: Compact dimensions (279 x 101 x 142 mm) and a weight of 4.9 kg.
-
Input Voltage & Frequency: 230VAC input with a voltage range of 140 - 300 VAC ± 5% and auto-sensing for 50/60Hz.
-
Output Voltage Regulation: ±10% regulation with simulated sinewave waveform.
-
Transfer Time: Quick transfer time of 2 - 6ms to minimize downtime.
-
Battery: Single 12V/10 Ah battery with a recharge time of 2-4 hours to 90% capacity.
-
Alarms & Indicators:
-
LED Display:
- AC Mode: Green Lighting
- Battery Mode: Yellow Flashing every 10 seconds
- Overload: Red Flashing every second
- Fault: Red Lighting
-
Sounding Alarms:
- Battery Mode: Sounding every 10 seconds
- Low Battery: Sounding every second
- Overload: Sounding every 0.5 seconds
- Battery Replacement Alarm: Sounding every 2 seconds
- Fault: Continuously sounding
-

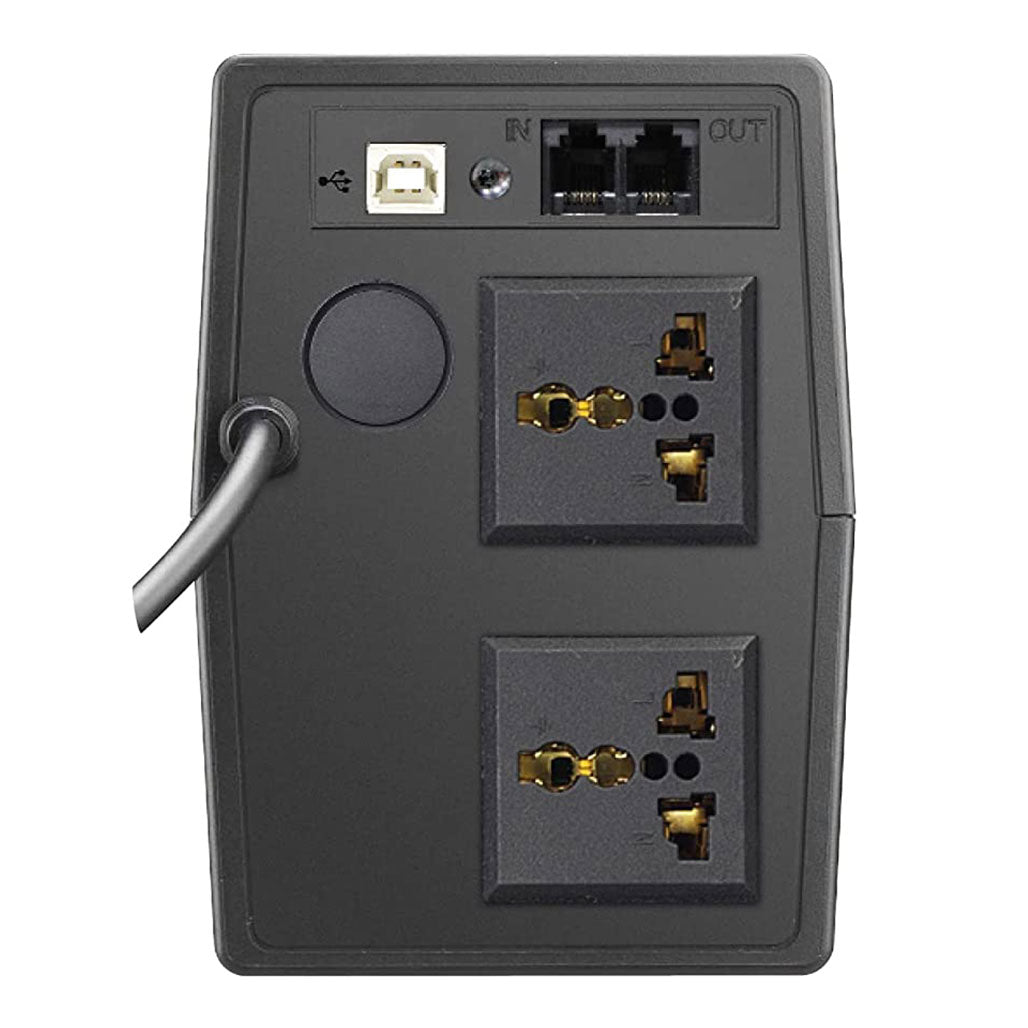

Rear Panel Connectivity:
- AC Input
- Backup Outlets
- USB Port (Available in PRO851SFCU model)
- RJ11 Ports
Specifications:
-
Capacity: 850VA
-
Dimension (D x W x H): 279 x 101 x 142 mm
-
Weight: 4.9 kg
-
Nominal Voltage: 230VAC
-
Voltage Range: 140 - 300 VAC ± 5%
-
Nominal Frequency: 50 or 60Hz (Auto sensing)
-
Voltage Regulation: ± 10%
-
Frequency: 50 or 60Hz ± 1Hz
-
Transfer Time (Typical): 2 - 6ms
-
Waveform: Simulated Sinewave
-
Battery: 12V/10 Ah x 1
-
Recharge Time (Typical): 2-4 hours to 90% capacity
The Prolink PRO851SFCU UPS offers dependable power backup and surge protection with a compact design, making it an excellent choice for protecting essential equipment and maintaining power continuity during outages.
