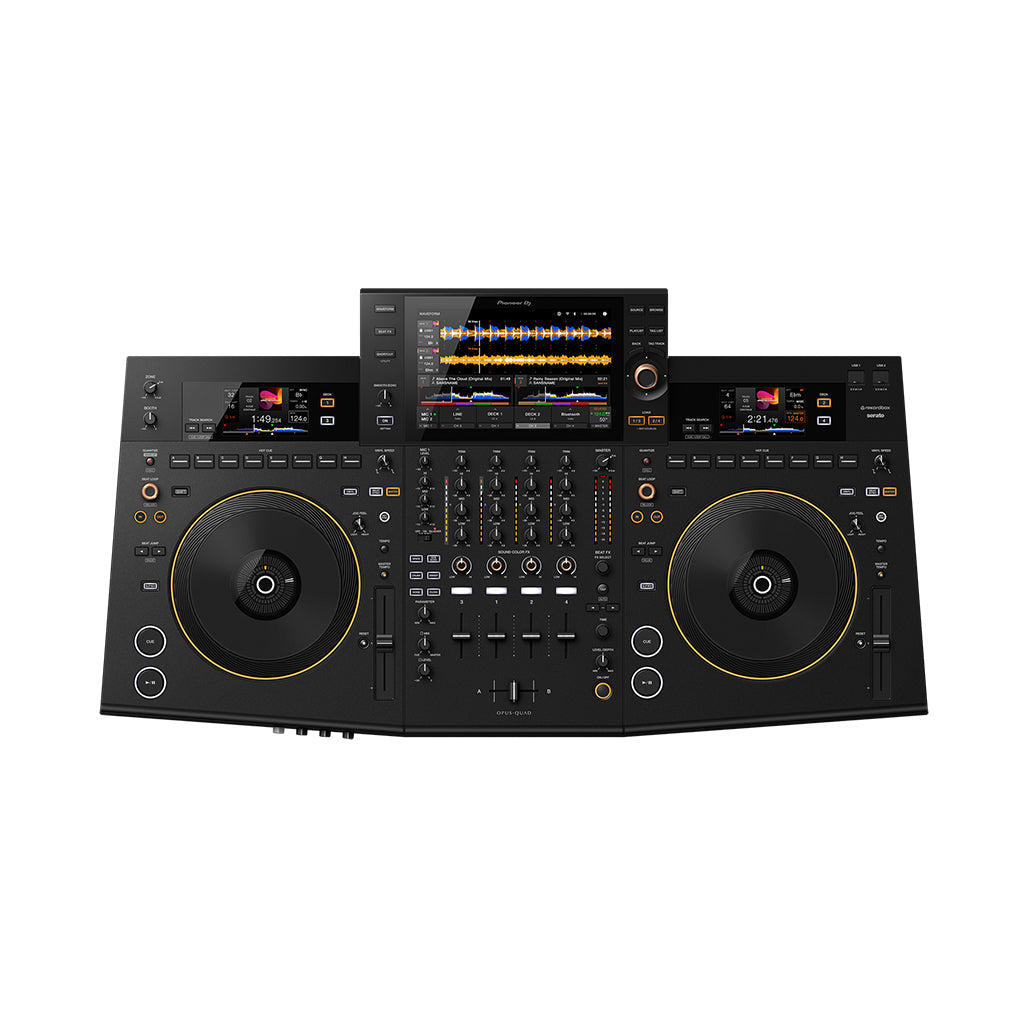

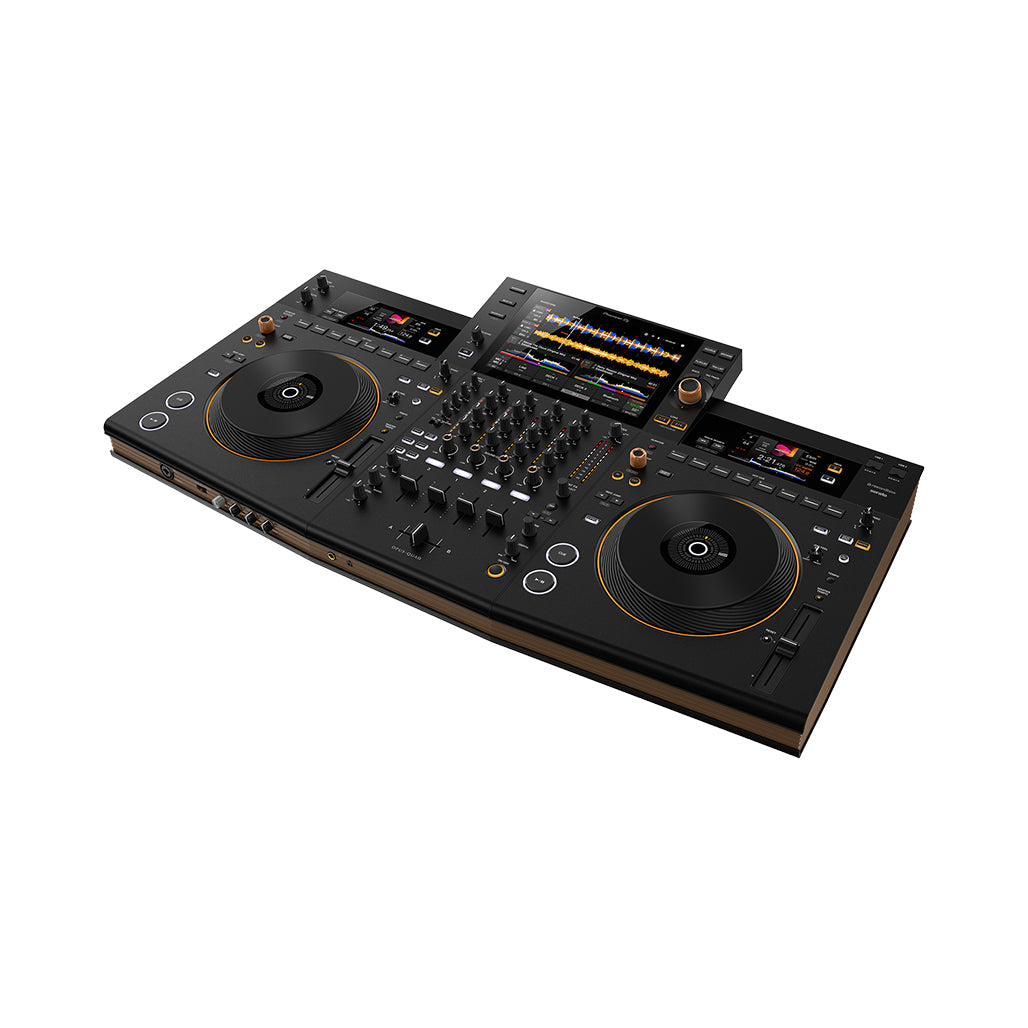

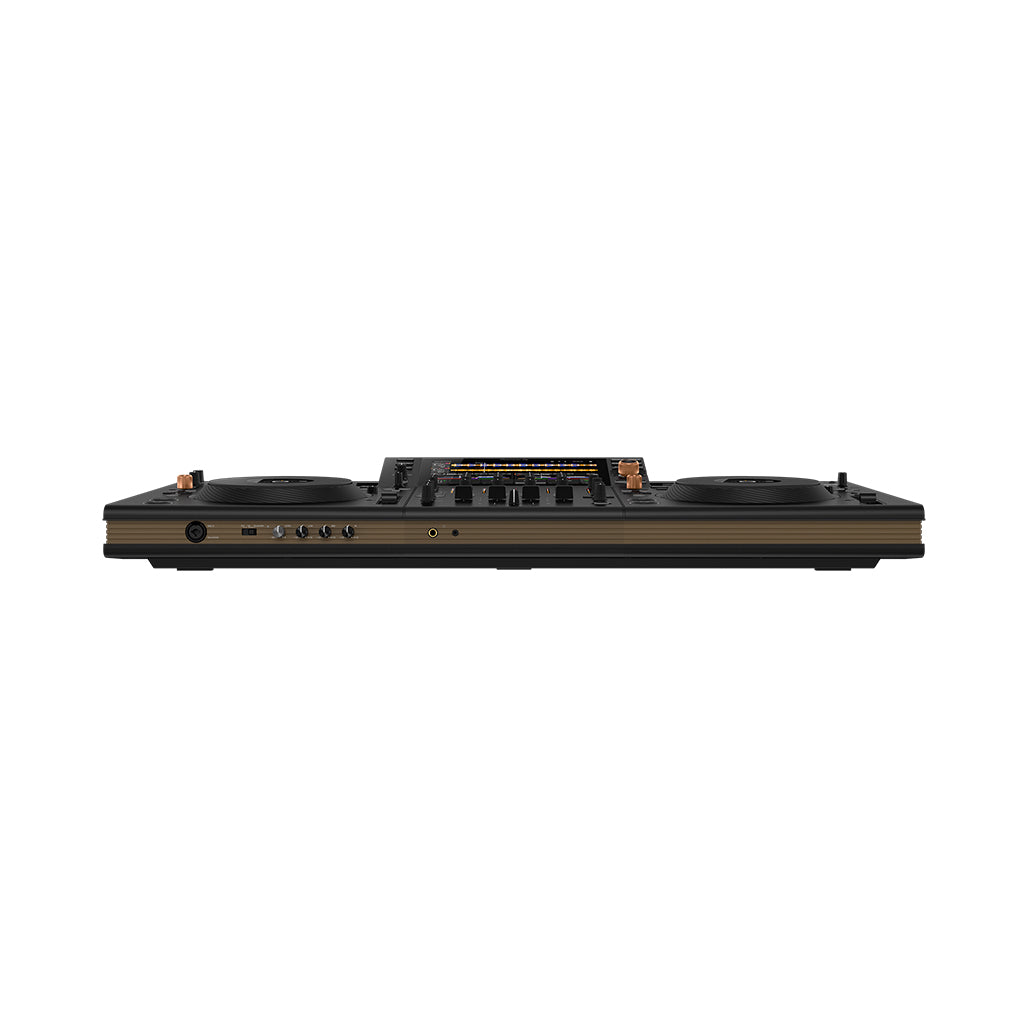

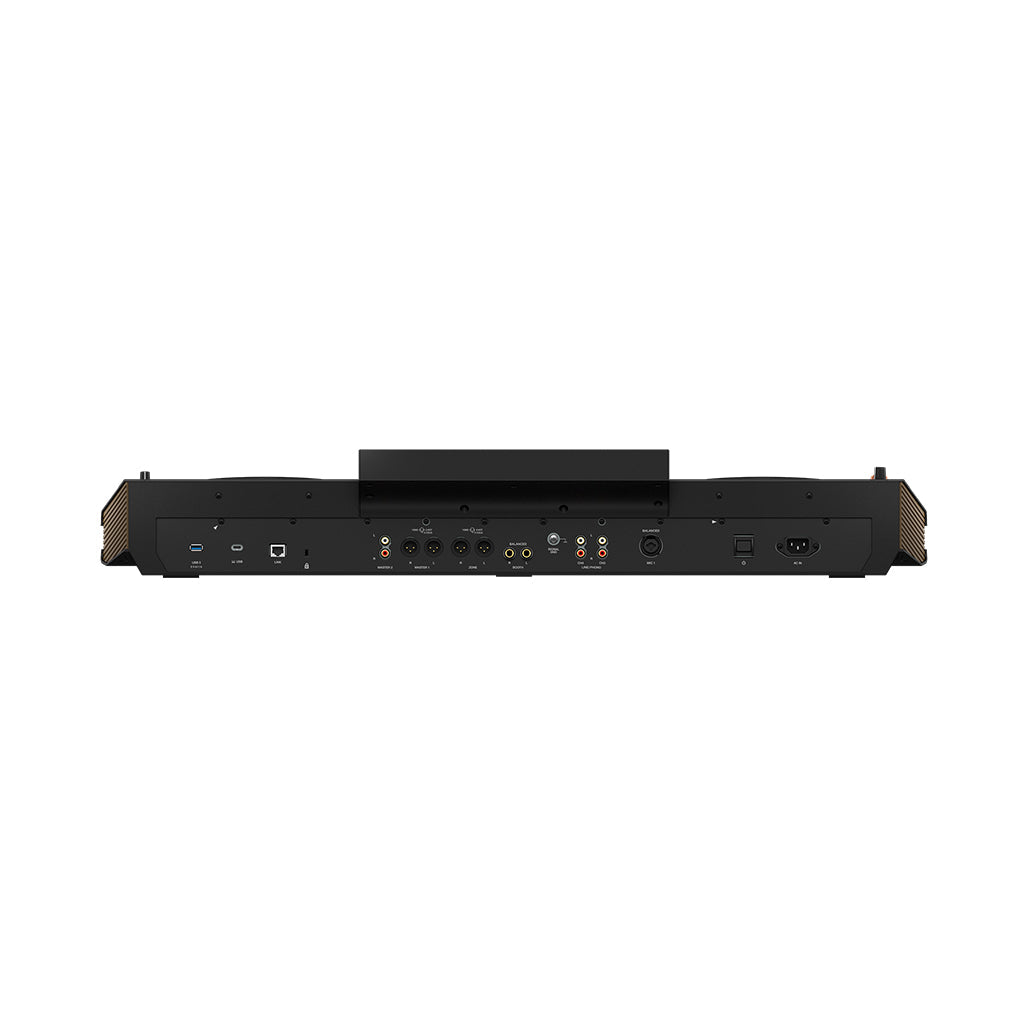

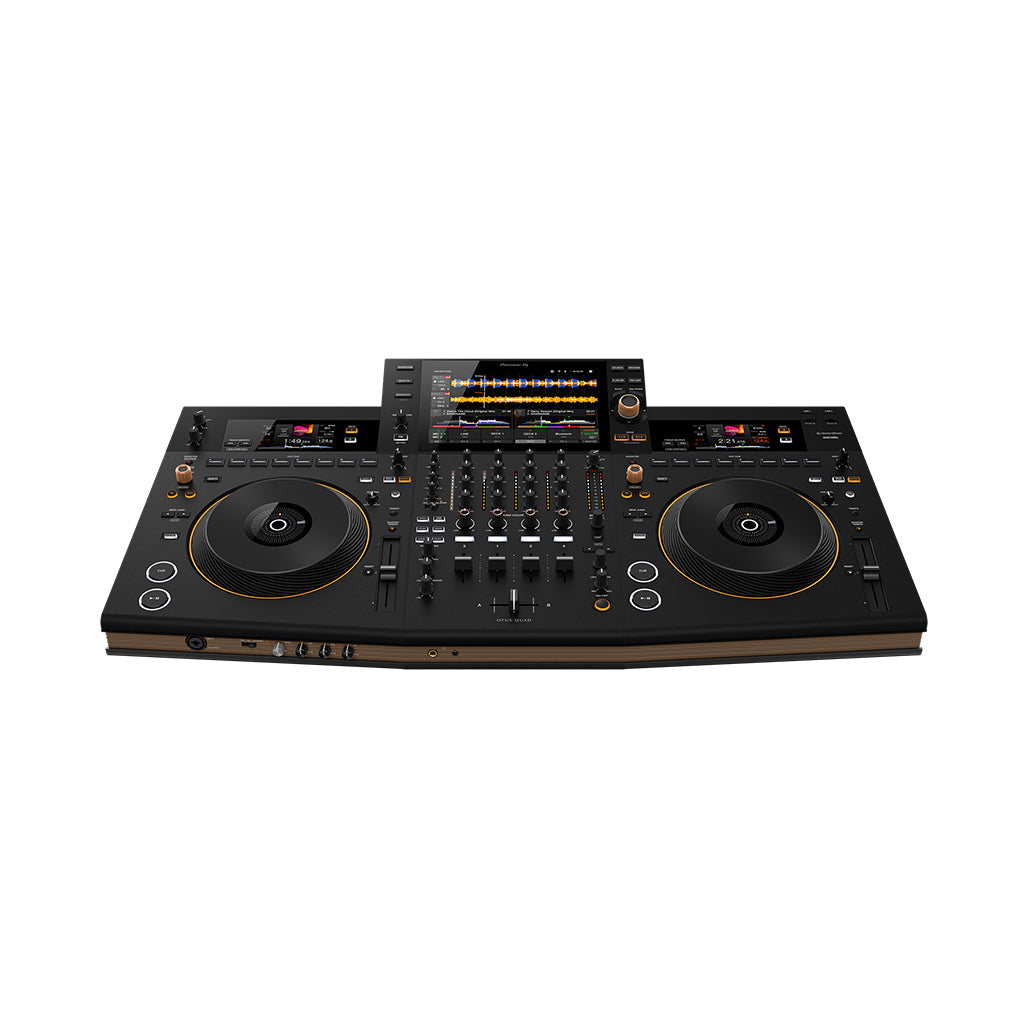

Pioneer OPUS-QUAD - Professional All-in-One DJ System

Step into the world of sophisticated DJing with the Pioneer OPUS-QUAD, an all-in-one DJ system that seamlessly combines cutting-edge design with unmatched musical functionality. Engineered for the modern DJ, this professional-grade system boasts standalone 4-deck playback, allowing for versatile and dynamic performances. The OPUS-QUAD’s refined aesthetics are matched by its exceptional performance capabilities, making it ideal for inspiring and engaging audiences in any setting. Its award-winning design, recognized by the iF Design Award 2024, Red Dot Design Award 2024, and the 2023 Chicago Good Design Awards, reflects a commitment to excellence in both form and function.

The OPUS-QUAD features advanced playback options, including support for multiple media sources such as USB thumb drives, SSD drives, and PC/Mac connections. Its state-of-the-art interface includes a 10.1-inch touch screen with electrostatic controls for rapid track searching and previewing. With high-quality sound output supported by a 32-bit D/A converter from ESS Technology, the OPUS-QUAD delivers clear, pleasant sound that enhances the spatial experience of any venue. Whether performing in a club, at a private event, or in a casual setting, this system ensures a superior auditory experience.

Key Features:

• Standalone 4-Deck Playback: Enables simultaneous playback of four tracks, with each deck featuring distinct jog ring illumination for easy identification.
• Multiple Media Sources: Supports USB drives, SSDs, PC/Mac via USB Type-C, Wi-Fi® streaming, and Bluetooth®/MD wireless connections for flexible music sourcing.
• Advanced User Interface: A 10.1-inch touch screen and Smart Rotary Selector facilitate quick track searches, previews, and easy navigation of extensive music libraries.
• Enhanced Sound Quality: High-quality audio output with a 32-bit D/A converter from ESS Technology ensures clear, distortion-free sound across various environments.
• Professional Effects: Includes a range of effects such as Beat FX and XY-Pad controls for dynamic sound manipulation, alongside the popular Smooth Echo feature for seamless echo effects.
• Zone Output Function: Allows different music to be played in separate spaces, perfect for creating distinct atmospheres in different areas of a venue.
• rekordbox and Serato Compatibility: Plug-and-play integration with rekordbox Performance mode and Serato DJ Pro, requiring no additional licenses or subscriptions.

Specifications:

• Dimensions: Width: 925.7 mm, Height: 142 mm, Depth: 499.7 mm
• Weight: 13.2 kg
• Signal-to-Noise Ratio:
  • USB: 114 dB
  • LINE: 96 dB
  • PHONO: 85 dB
  • MIC: 79 dB
• Power Supply: AC 100-240 V, 50 Hz / 60 Hz
• Power Consumption: 60 W
• Sampling Rate: 44.1 kHz
• Distortion:
  • USB: 0.003 %
  • LINE: 0.005 %
• Frequency Range: 20 - 20,000 Hz

The OPUS-QUAD sets a new standard for professional DJ systems, blending elegant design with high-performance capabilities. Its versatile features and high-quality audio output make it an essential tool for DJs seeking to elevate their performances and create memorable experiences. Whether in a large venue or a more intimate setting, the OPUS-QUAD ensures that every beat resonates with precision and clarity.
