The MSI Spatium M480 PRO HS 2TB PCIe 4.0 NVMe M.2 SSD delivers top-tier performance for high-demand gaming and professional tasks. Engineered for PCIe 4.0, it provides blazing-fast speeds with sequential read rates up to 7400 MB/s and write speeds up to 7000 MB/s, significantly enhancing data transfer and reducing load times.

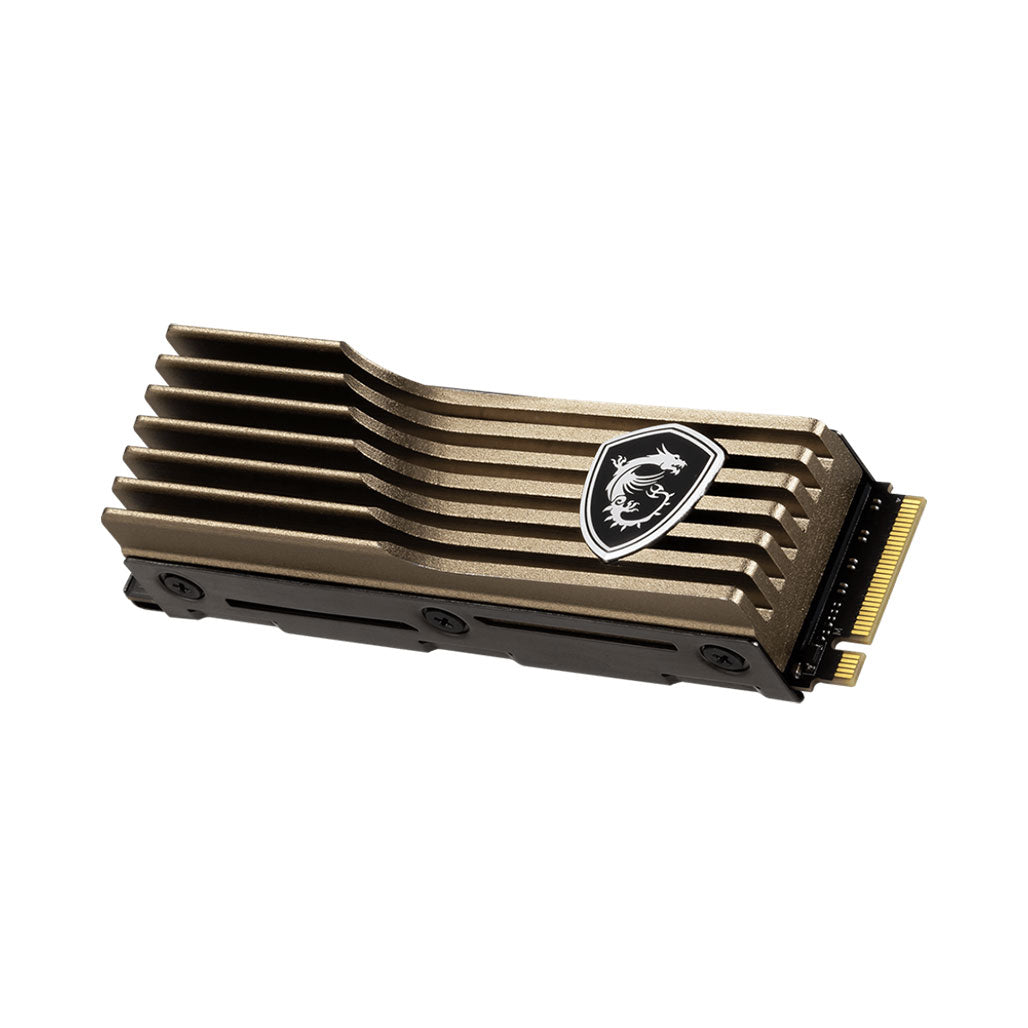

This model features a sophisticated bronze-colored aluminum heatsink with a stacked fin design, efficiently cooling the SSD and maintaining peak performance under heavy loads. Its 2TB capacity is supported by advanced 3D NAND flash technology, providing ample space in a compact form factor.
Key Features:
-
Unmatched Speed: Sequential read speeds up to 7400 MB/s and write speeds up to 7000 MB/s for rapid data processing.
-
Effective Cooling: Includes a stylish bronze-colored aluminum heatsink with a stacked fin structure to efficiently dissipate heat and sustain high performance.
-
Large Capacity: 2TB storage capacity, utilizing cutting-edge 3D NAND technology for dense storage in a compact design.
-
Enhanced Data Protection: Equipped with TRIM, SMART, LDPC ECC, and AES256/Pyrite encryption for robust data security and longevity.
-
Power Efficient: Maximum operating power of 10.5W and idle power of 45mW, designed for low power consumption.
Specifications:
-
Model Name: SPATIUM M480 PRO PCIe 4.0 NVMe M.2 HS
-
Capacity: 2TB
-
Controller: PHISON E18
-
Flash Memory: 3D NAND
-
DRAM Cache: 2GB DDR4
-
Form Factor: M.2 2280
-
Interface: PCIe Gen4 x4, NVMe 1.4
-
Compatibility: PCIe Gen4 / Gen3 / Gen2 / Gen1
-
Dimensions: 80.40mm (L) x 23.00mm (W) x 20.40mm (H)
-
Sequential Read Up To (MB/S): 7400
-
Sequential Write Up To (MB/S): 7000
-
Random Read 4KB Up To (IOPS): 1,000,000
-
Random Write 4KB Up To (IOPS): 1,000,000
-
Maximum Operating Power (W): 10.5
-
Idle Power PS3 (MW): 45
-
Low Power L1.2 (MW): 3
-
Operating Temperatures: 0°C – 70°C
-
Storage Temperatures: -40°C – 85°C
-
Terabytes Written (TBW): 1400
-
Mean Time Between Failure (MTBF): Up to 1,600,000 Hours
-
Advanced Features: TRIM (Performance Optimization, OS Support required), SMART (Self-Monitoring, Analysis and Reporting Technology), LDPC (Low Density Parity Check) ECC Algorithm, End to End Data Path Protection, APST (Autonomous Power State Transition), AES256/Pyrite (Encryption, Data Security)
Conclusion:
The MSI Spatium M480 PRO HS 2TB PCIe 4.0 NVMe M.2 SSD combines cutting-edge performance with effective thermal management. Its high-speed capabilities, advanced cooling design, and substantial storage make it an excellent choice for gamers and professionals seeking reliable and fast storage solutions.
