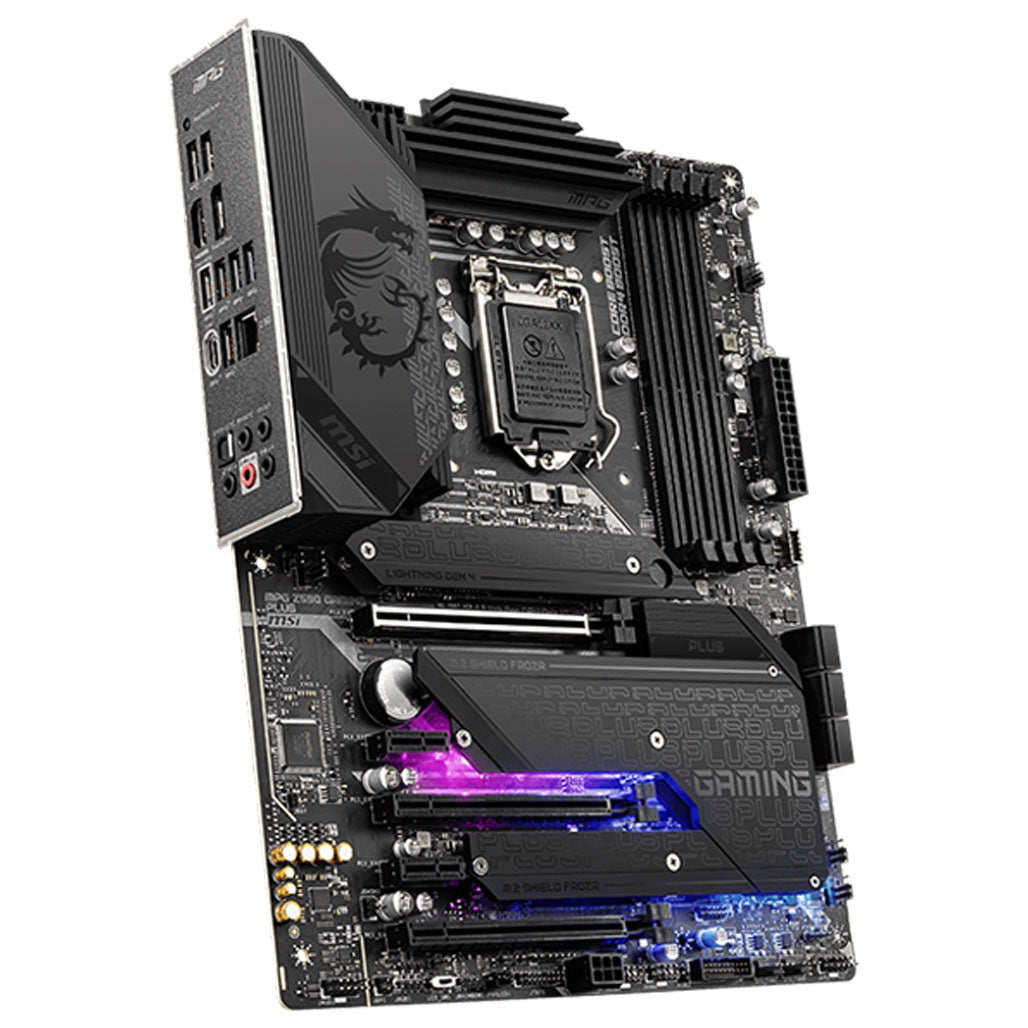

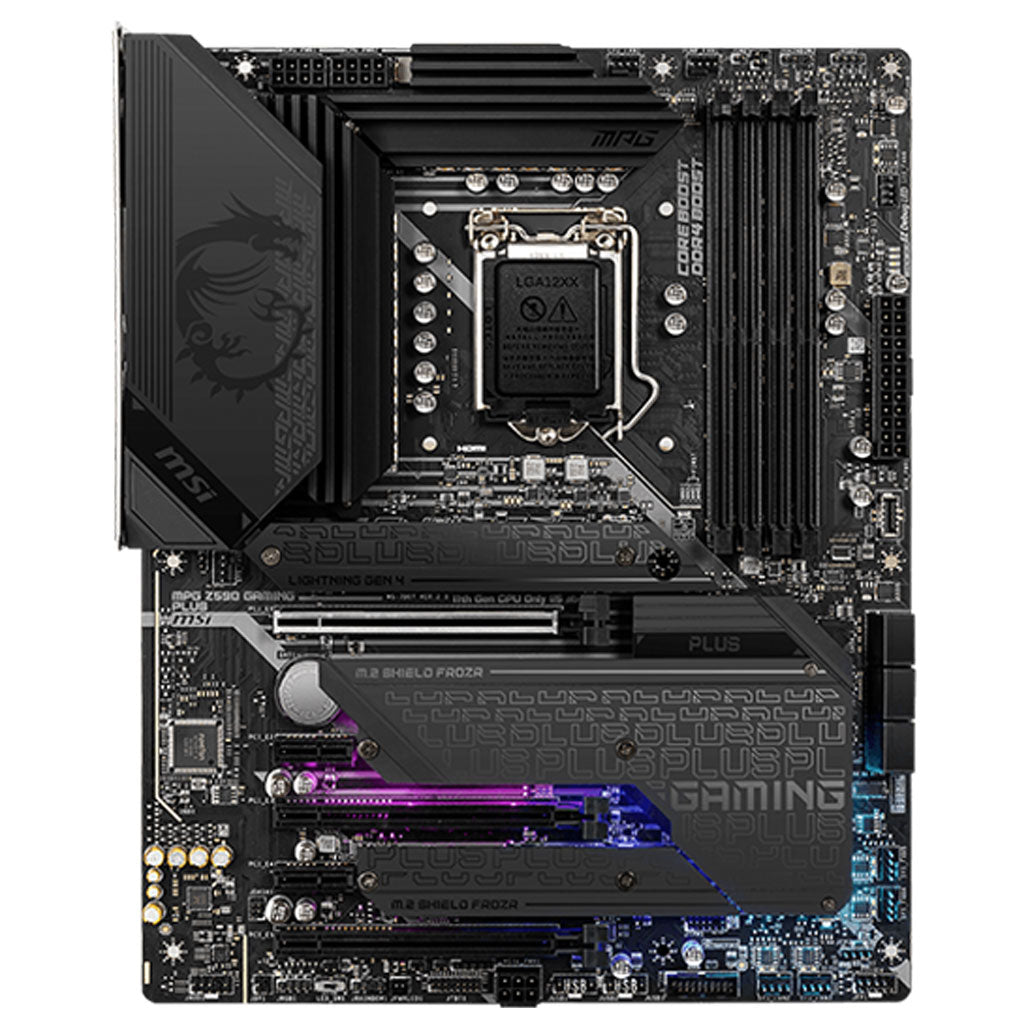

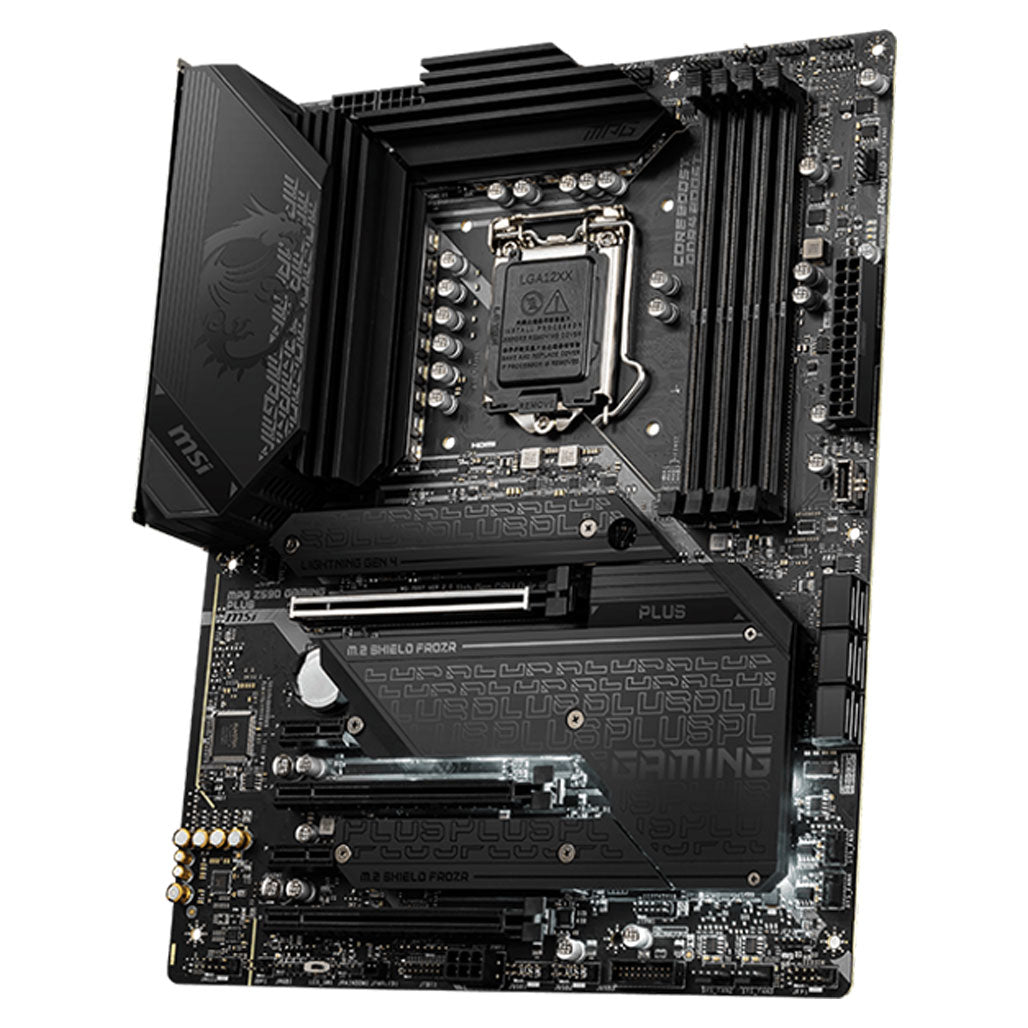

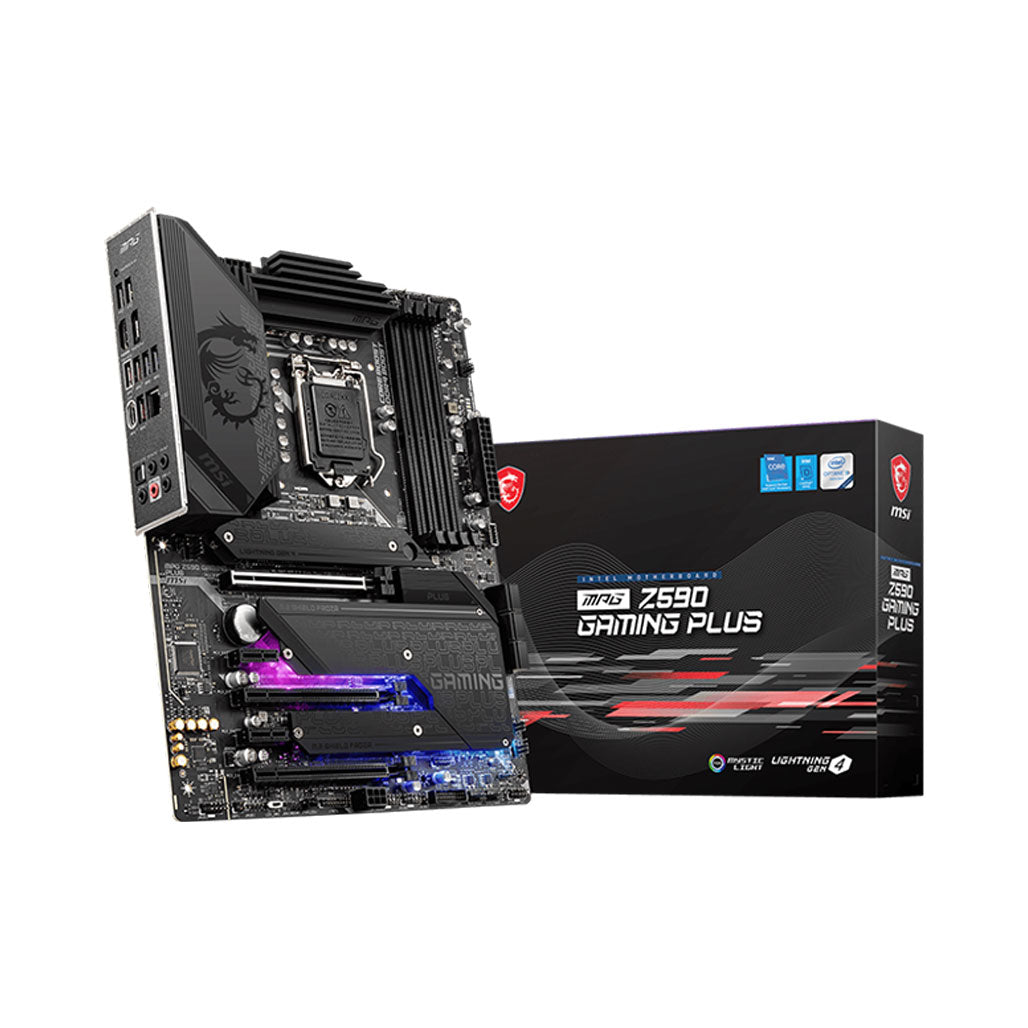

Unlock your system's potential with the MSI MPG Z590 Gaming Plus motherboard. Designed for the LGA 1200 socket and Intel® Z590 chipset, this ATX motherboard delivers exceptional performance and connectivity, making it a top choice for gaming enthusiasts and PC builders.
Key Features:
-
Socket and Chipset: Supports Intel® LGA 1200 processors with the Intel® Z590 chipset, providing robust performance and compatibility with the latest hardware.
-
Memory: Equipped with four DIMM slots, allowing for a maximum of 128 GB of high-speed DDR4 memory across dual memory channels.
-
Expansion Slots: Features three PCI-E x16 slots and two PCI-E x1 slots, offering ample room for multiple GPUs and additional expansion cards.
-
Storage Options: Includes six SATAIII ports and three M.2 slots for versatile storage configurations, with support for RAID 0, 1, 5, and 10 for enhanced data security and performance.
-
USB Connectivity:
-
Front: 1 x USB 3.2 Gen 2 Type-C, 2 x USB 3.2 Gen 1 Type-A, 4 x USB 2.0
-

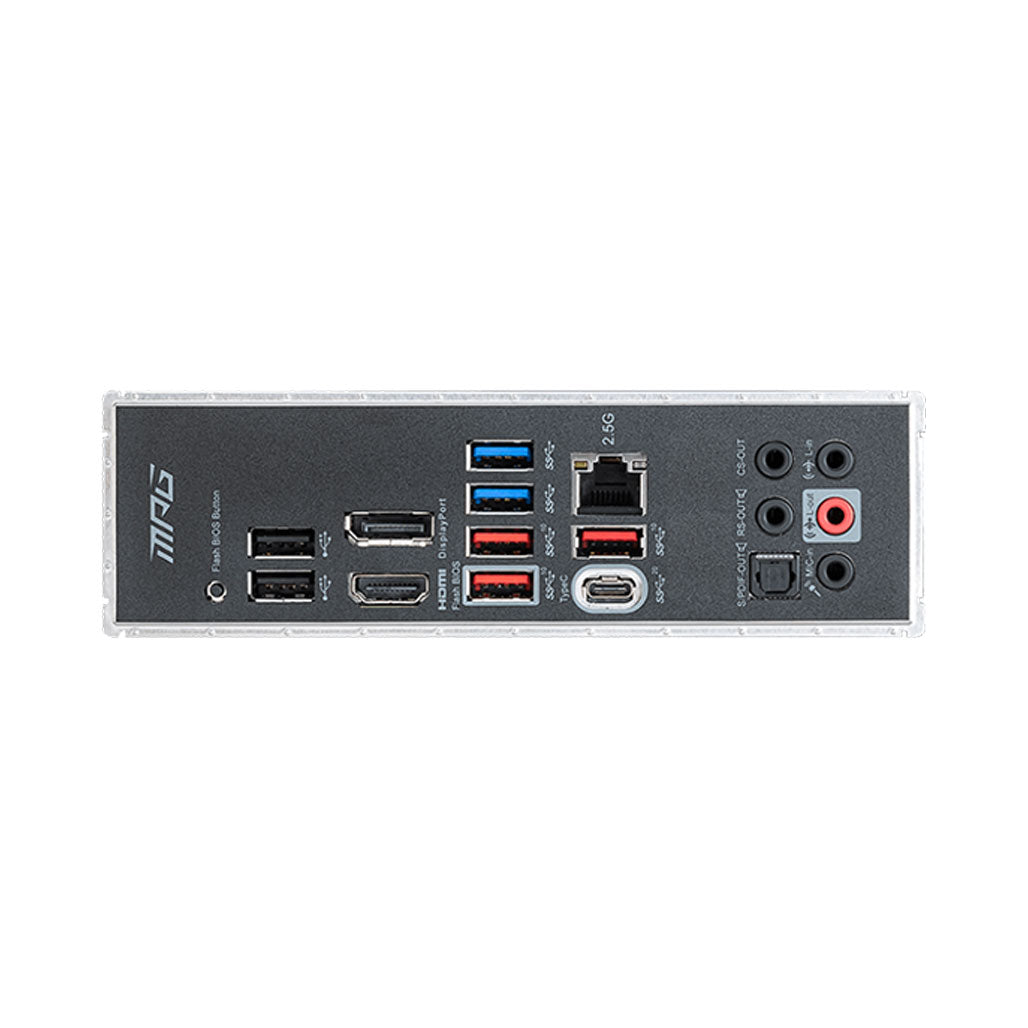

Rear: 1 x USB 3.2 Gen 2x2 Type-C, 3 x USB 3.2 Gen 2 Type-A, 2 x USB 2.0
-
Audio and Display: Supports high-quality audio with S/PDIF output via Realtek® ALC4080 and includes both DisplayPort and HDMI outputs for versatile display options.
-
DirectX Support: Compatible with DirectX 12, ensuring smooth and immersive gaming experiences.
-
Crossfire Support: Enables multi-GPU configurations with AMD Crossfire technology for increased graphical power.
-
Operating System: Supports Windows® 10 64-bit, providing a stable and optimized environment for gaming and productivity.
Specifications:
-
Socket: LGA 1200
-
Chipset: Intel® Z590
-
Memory Channel: Dual
-
DIMM Slots: 4
-
Max Memory (GB): 128
-
PCI-E x16: 3
-
PCI-E x1: 2
-
SATAIII Ports: 6
-
M.2 Slots: 3
-
RAID Support: 0/1/5/10
-
USB 3.2 Ports (Front): 1 x Gen 2 Type-C, 2 x Gen 1 Type-A
-
USB 3.2 Ports (Rear): 1 x Gen 2x2 Type-C, 3 x Gen 2 Type-A, 2 x Gen 1 Type-A
-
USB 2.0 Ports (Front): 4
-
USB 2.0 Ports (Rear): 2
-
Audio Ports (Rear): Supports S/PDIF output (Realtek® ALC4080)
-
DisplayPort: 1
-
HDMI: 1
-
DirectX: 12
-
Crossfire: Yes
-
Operating System: Windows® 10 64-bit
-
Form Factor: ATX
Conclusion: The MSI MPG Z590 Gaming Plus motherboard offers a comprehensive suite of features designed to meet the needs of gamers and PC enthusiasts. Its advanced connectivity options, ample memory support, and high-performance capabilities ensure a powerful and flexible foundation for your build. With support for multiple GPUs and cutting-edge technologies, this motherboard is a prime choice for building a high-performance gaming rig.
