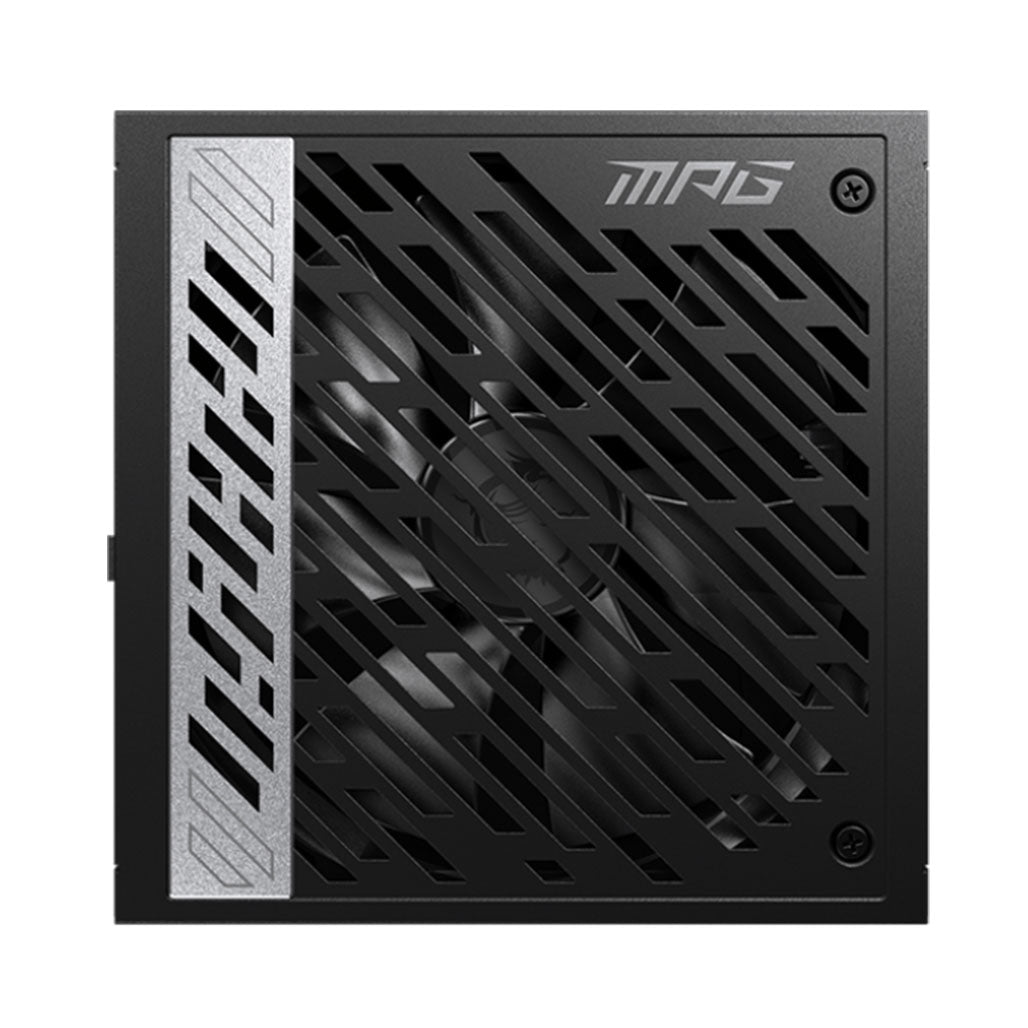

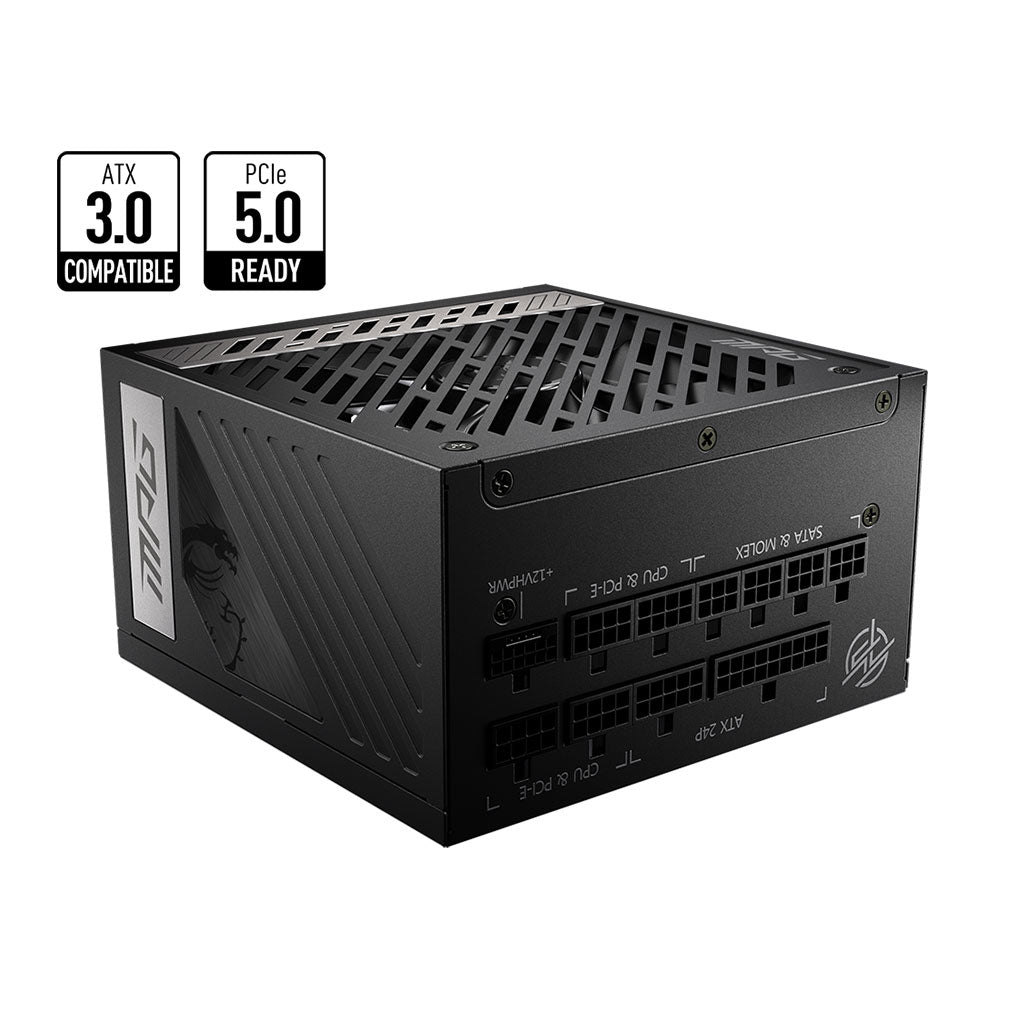

MSI MPG A1000G PCIe5 Power Supply - 1000W 80 PLUS Gold Certified, ATX 3.0 Compatible

Power your gaming rig with the MSI MPG A1000G PCIe5 Power Supply, designed to meet the demands of high-performance systems. This 1000W power supply is fully compatible with PCIe 5.0 and Intel’s ATX 3.0 Power Supply Design Guide, offering robust support for modern gaming setups. With a native 16-pin PCIe connector, it can deliver up to 600W to the latest Nvidia® GeForce RTX® 40 Series graphics cards, ensuring you have the power needed for top-tier performance.

Certified with 80 PLUS Gold, the MPG A1000G enhances system efficiency and reduces energy consumption, helping you save on electricity while maintaining high performance. Its single-railed design ensures stable power delivery to all components, including high-performance GPUs and CPUs. The power supply features a fully modular design for easy cable management, a 135mm fluid dynamic bearing fan for quiet operation, and comprehensive protection mechanisms to safeguard your system.

Key Features:

• ATX 3.0 Compatibility: Supports PCIe 5.0 and Intel PSDG standards, allowing for up to 2x total power excursion and 3x GPU power excursion.
• Native 16-Pin PCIe Connector: Delivers up to 600W to Nvidia® GeForce RTX® 40 Series graphics cards for optimal performance.
• 80 PLUS Gold Certified: Provides up to 90% efficiency, reducing energy consumption and operational costs.
• Single-Railed Design: Ensures reliable power delivery with 5 CPU & PCI-E slots to support high-performance components.
• Versatile GPU Support: Compatible with both NVIDIA and AMD graphics cards, accommodating various power connector designs.
• Fully Modular Design: Facilitates efficient cable management and customization.
• 135mm Fluid Dynamic Bearing Fan: Offers quiet and effective cooling for reliable operation.
• Comprehensive Protection: Includes OCP, OVP, OPP, OTP, SCP, and UVP to ensure safe and stable power delivery.

Specifications:

• Efficiency Rating: 80 PLUS Gold (up to 90%)
• Modular: Yes (fully modular)
• Fan Size: 135 mm
• Fan Bearing: Fluid Dynamic Bearing
• Dimensions (DxWxH): 150 x 150 x 86 mm
• PFC Type: Active PFC
• Input Voltage Range: 100~240 VAC
• Power Watt: 1000W
• Power Excursion: 2000W (*up to 200% of the PSU's rated power for 100μs)
• Input Frequency Range: 50~60 Hz
• Protection: OCP / OVP / OPP / OTP / SCP / UVP

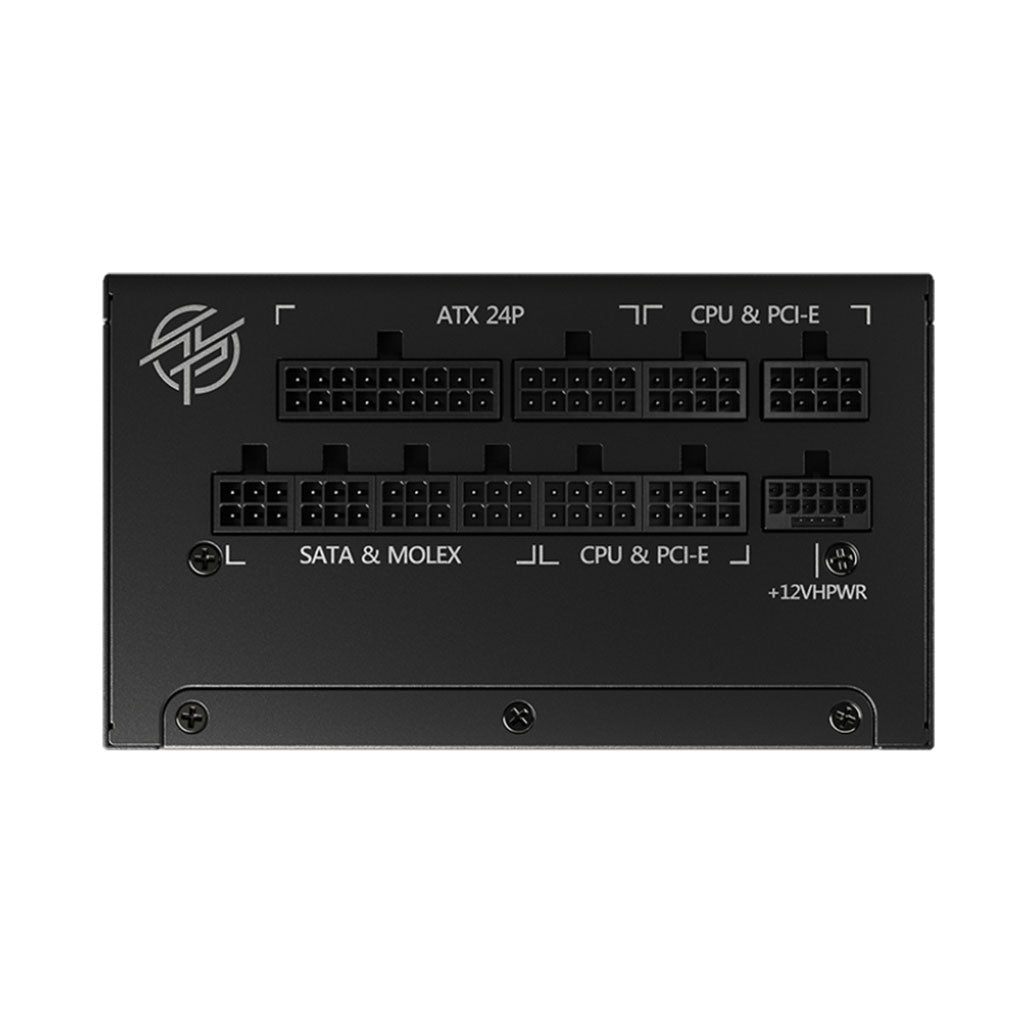

• ATX (24 PIN): 1
• EPS (4+4 PIN): 2
• PCI-E 5.0 (16 PIN): 1 (600W)
• PCI-E (6+2 PIN): 6
• SATA (15 PIN): 12
• MOLEX (4 PIN): 4
• FDD (4 PIN): 1

Conclusion: The MSI MPG A1000G PCIe5 Power Supply is engineered to deliver reliable and efficient power to high-end gaming systems. With its 1000W capacity, 80 PLUS Gold certification, and ATX 3.0 compatibility, it is well-suited for the latest hardware and demanding applications. The power supply’s advanced features, including a fully modular design and comprehensive protection, ensure that your system operates smoothly and securely.
