MSI MAG B760M Mortar WiFi Motherboard - Model 911-7E01-039 | High-Performance mATX with DDR5 and PCIe 5.0

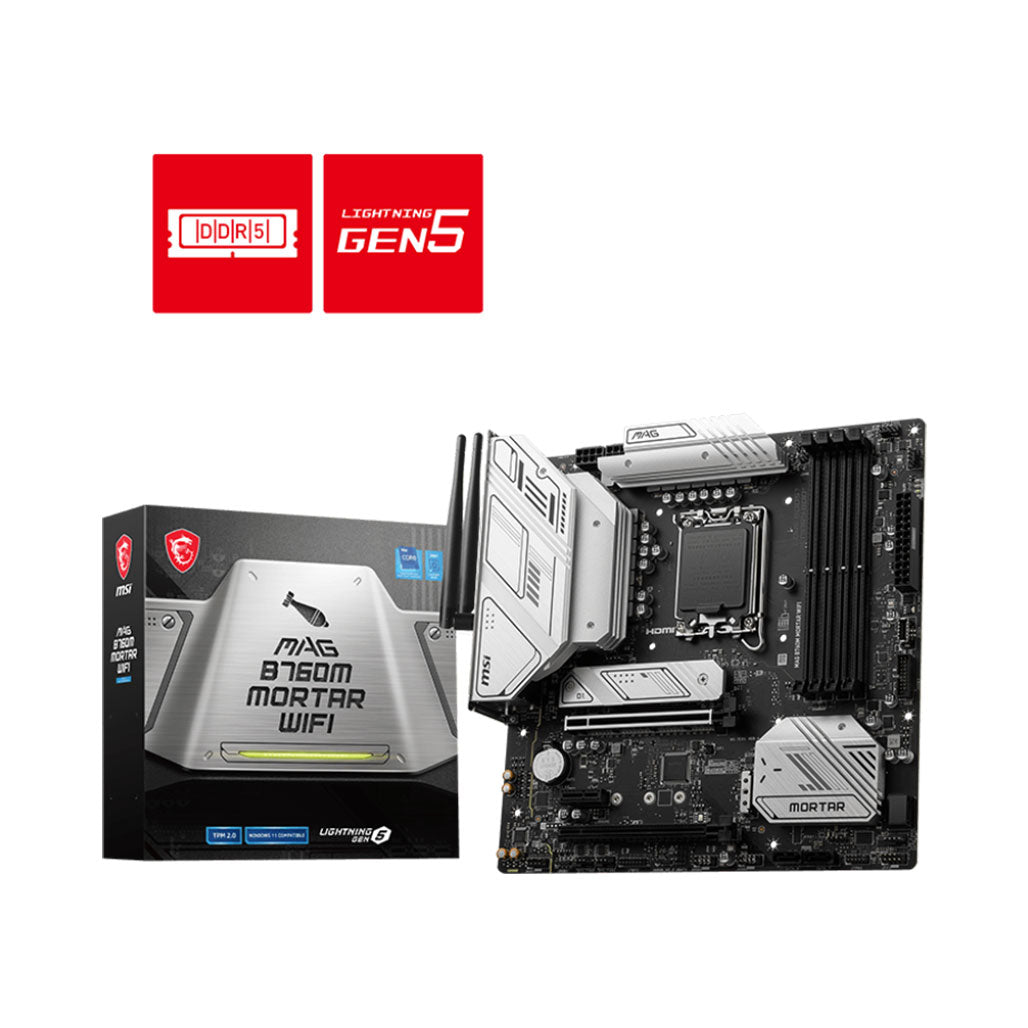

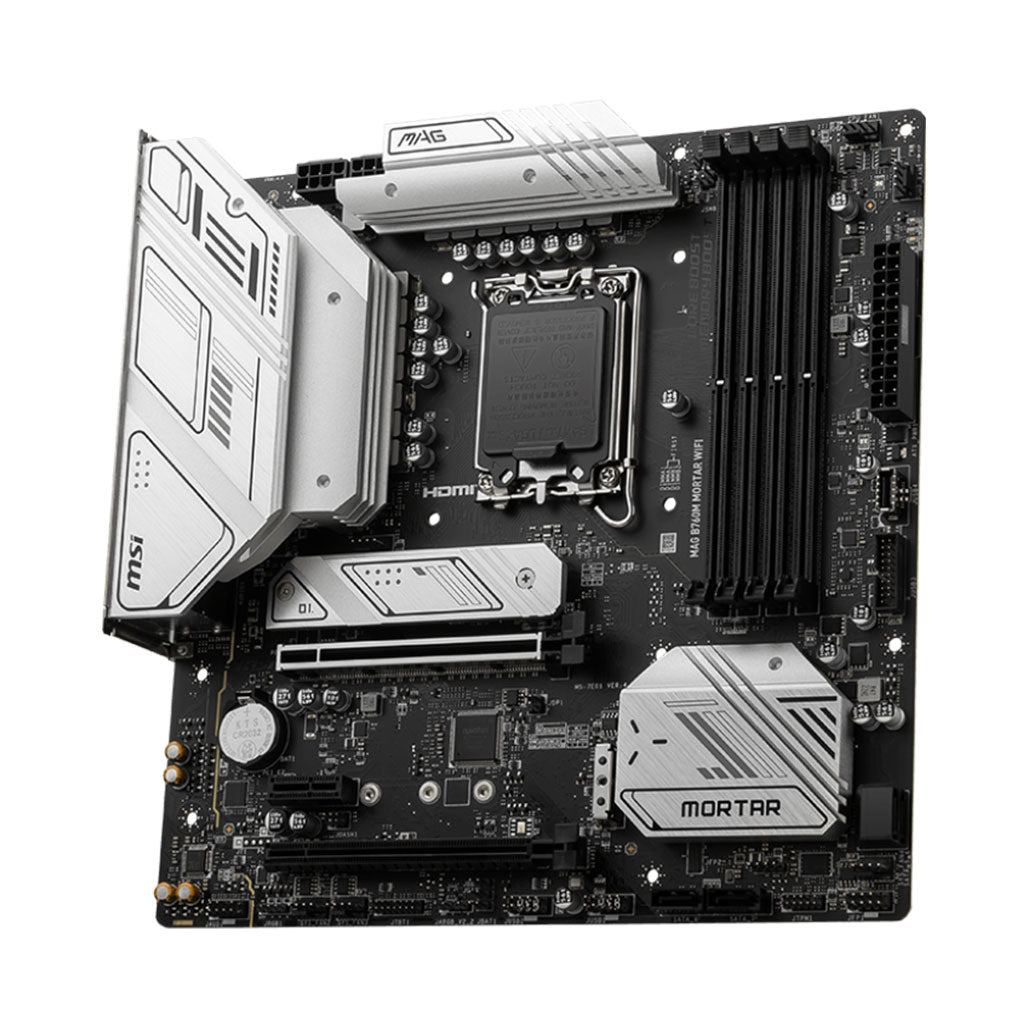

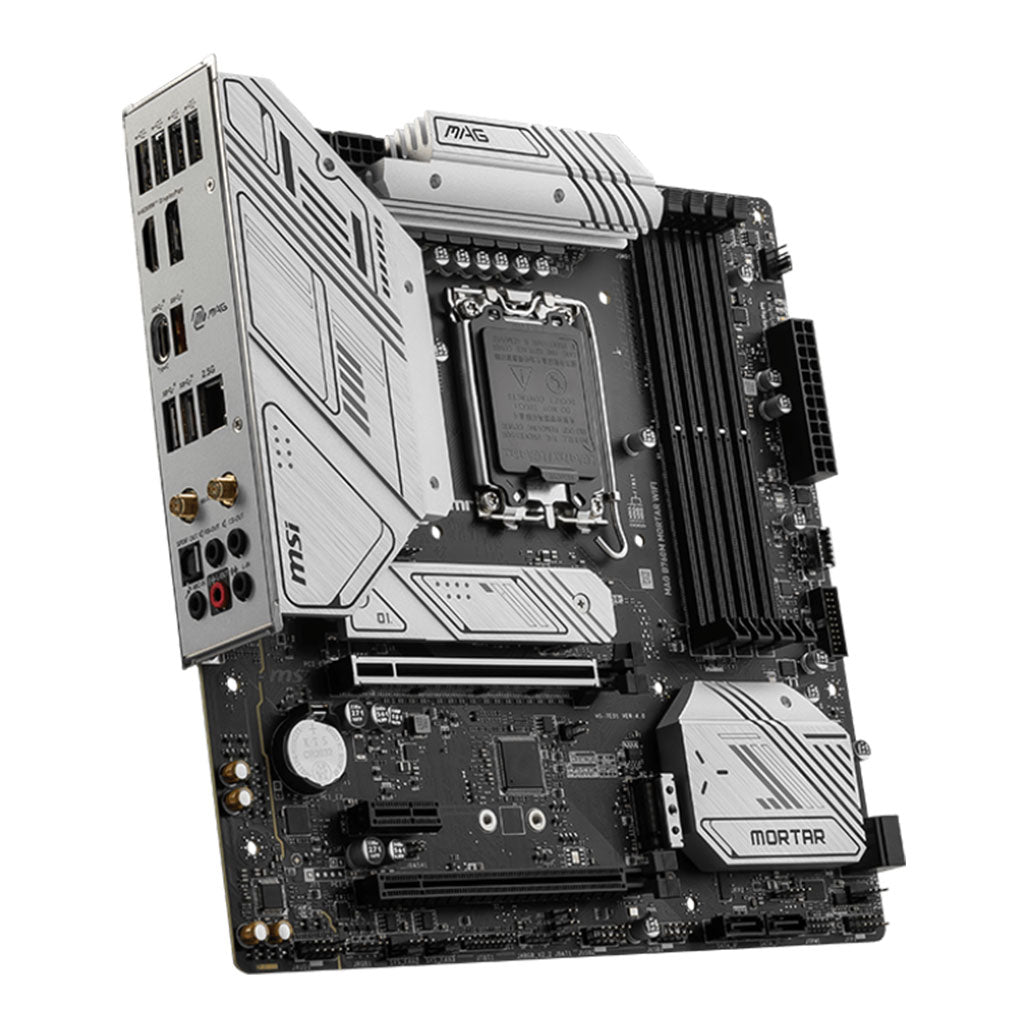

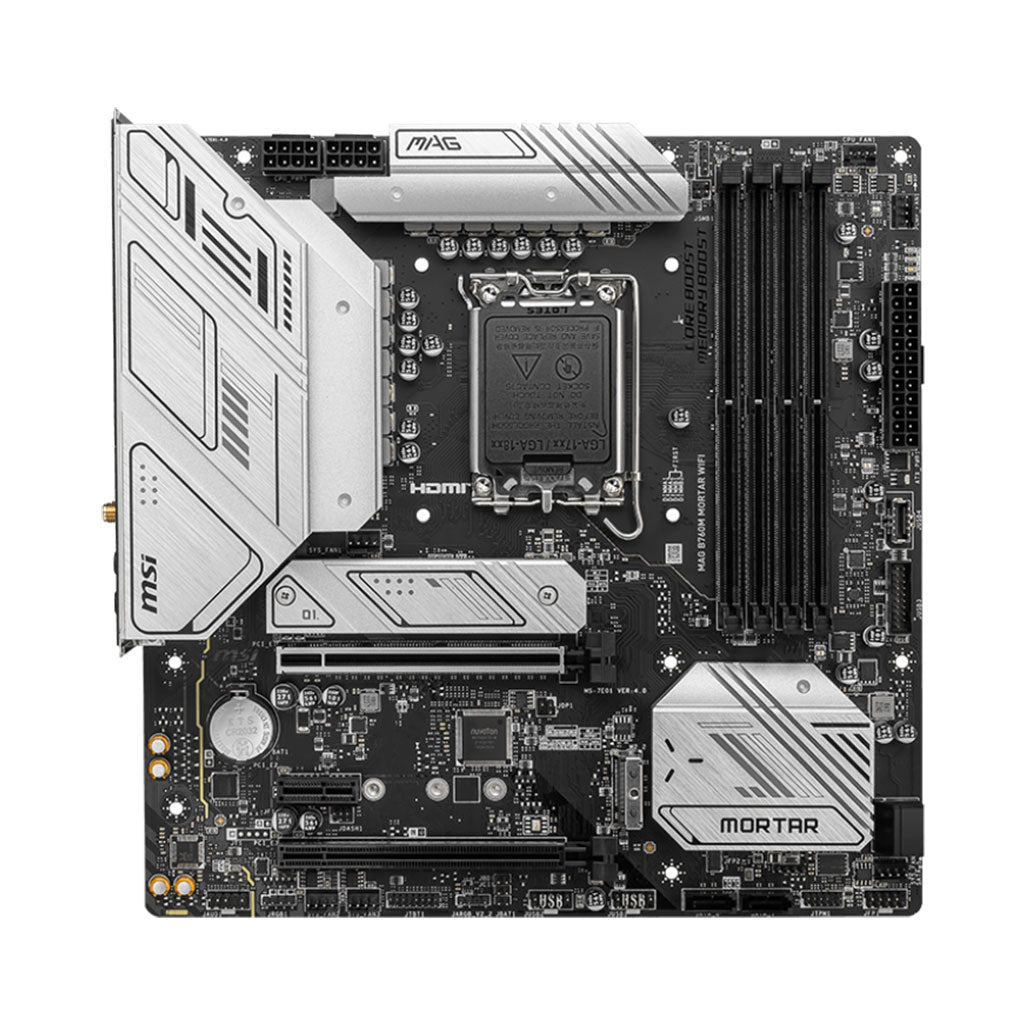

The MSI MAG B760M Mortar WiFi motherboard is engineered to deliver exceptional performance and connectivity for compact yet powerful PC builds. Designed for Intel® Core™ 14th, 13th, and 12th Gen processors, as well as Intel® Pentium® Gold and Celeron® processors, it supports the LGA 1700 socket, making it an excellent choice for a variety of computing needs.

Supporting up to 192 GB of DDR5 memory with speeds reaching up to 7200+ MHz, the MAG B760M Mortar offers top-tier performance and responsiveness. The advanced 12+1+1 Duet Rail Power System and dual 8-pin CPU power connectors provide reliable power delivery for overclocking and demanding applications.

The motherboard features PCIe 5.0 and PCIe 4.0 slots, as well as two M.2 slots and four SATA 6G ports, ensuring ample and fast storage options. Its premium thermal design includes an extended heatsink and M.2 Shield Frozr, ensuring effective cooling during high-intensity workloads.

Intel® Wi-Fi 6E and Bluetooth® 5.3 are included for high-speed wireless connectivity, with support for MU-MIMO and up to 2.4Gbps wireless speeds. The MAG B760M Mortar also includes a range of USB ports, including USB 3.2 Gen 2x2 Type-C, for versatile connectivity.

Key Features:

• Socket & Chipset: LGA 1700 socket with Intel® B760 chipset, supporting Intel® Core™ 14th/13th/12th Gen processors.
• Memory: 4x DDR5 slots, maximum 192 GB, supports up to 7200+ MHz (overclocked).
• Expansion Slots: 2x PCIe x16, 1x PCIe x1, supports PCIe 5.0 and PCIe 4.0.
• Storage: 2x M.2 slots, 4x SATA 6G ports for efficient and fast storage solutions.
• RAID: Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA devices.

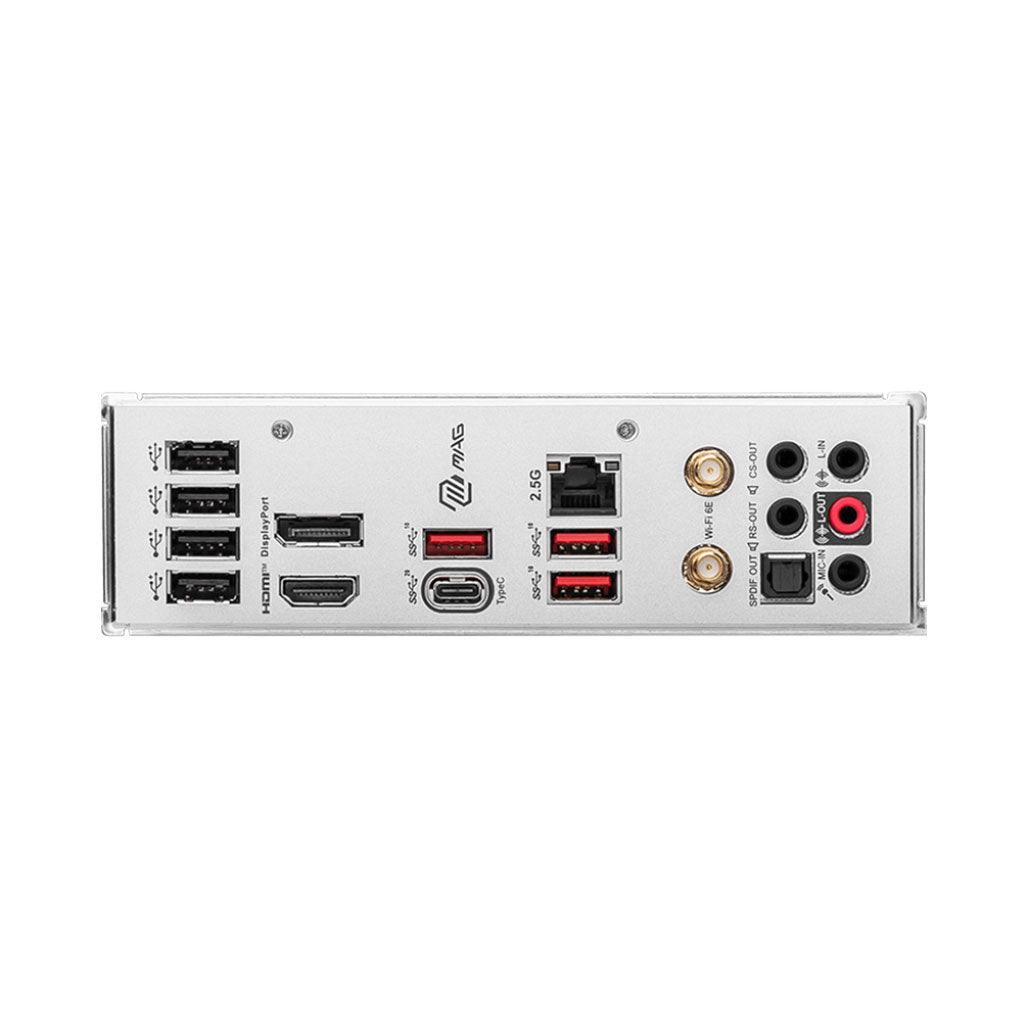

• USB Ports: 4x USB 2.0 (rear), 4x USB 2.0 (front), 2x USB 3.2 Gen 1 Type-A (front), 3x USB 3.2 Gen 2 Type-A (rear), 1x USB 3.2 Gen 2 Type-C (front), 1x USB 3.2 Gen 2x2 Type-C (rear).
• Networking: Realtek® 2.5Gbps LAN, Intel® Wi-Fi 6E, supports MU-MIMO and up to 2.4Gbps wireless speed.
• Audio: Realtek® ALC897 Codec, 7.1-Channel High Performance Audio with S/PDIF output.
• Video Outputs: 1x HDMI™ 2.1 (4K 60Hz), 1x DisplayPort 1.4 (4K 60Hz).
• Operating System: Windows® 11 64-bit, Windows® 10 64-bit.
• Form Factor: mATX, dimensions 243.84mm x 243.84mm.

Conclusion:

The MSI MAG B760M Mortar WiFi motherboard is a powerful and compact option for high-performance computing. With support for the latest Intel processors, DDR5 memory, and PCIe 5.0, it ensures fast and reliable operation. The advanced cooling solutions and robust connectivity options make it an ideal choice for enthusiasts and professionals looking for a high-quality, reliable motherboard in a smaller form factor.
