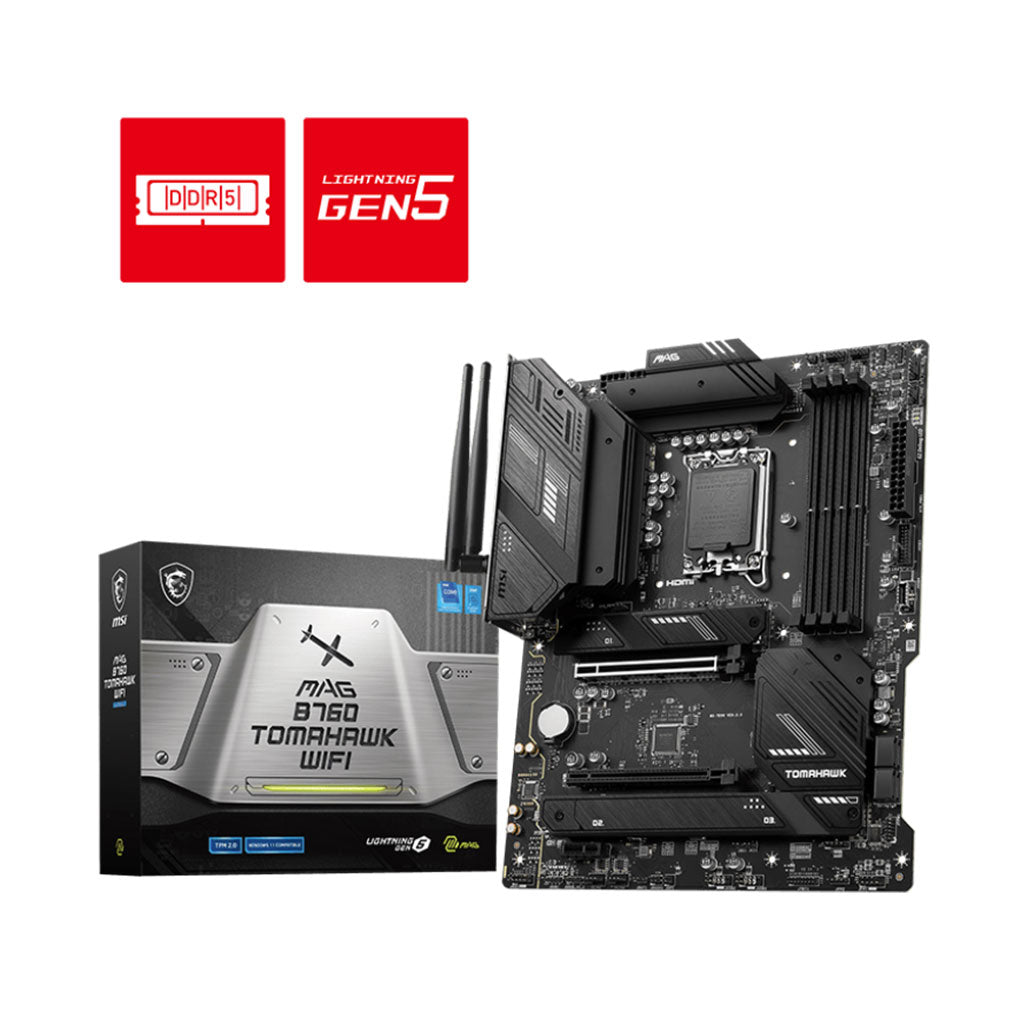

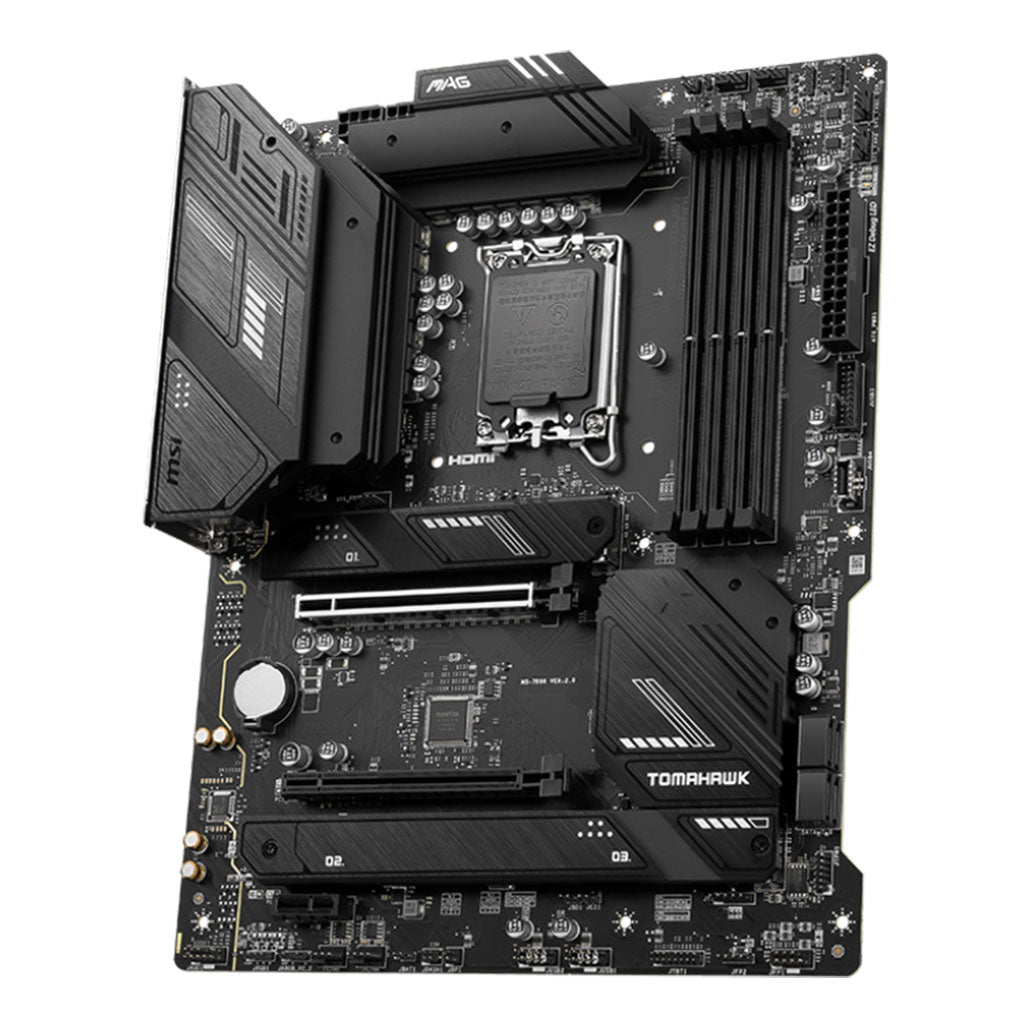

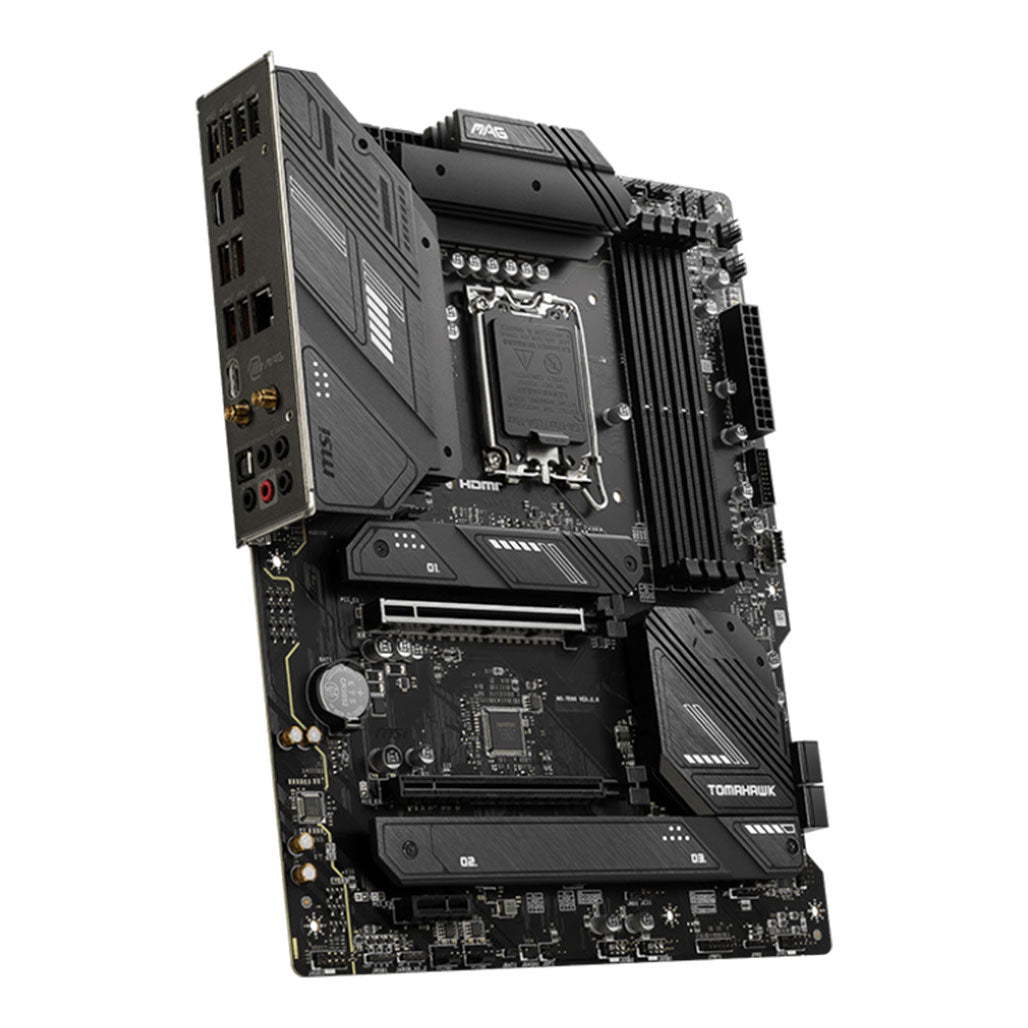

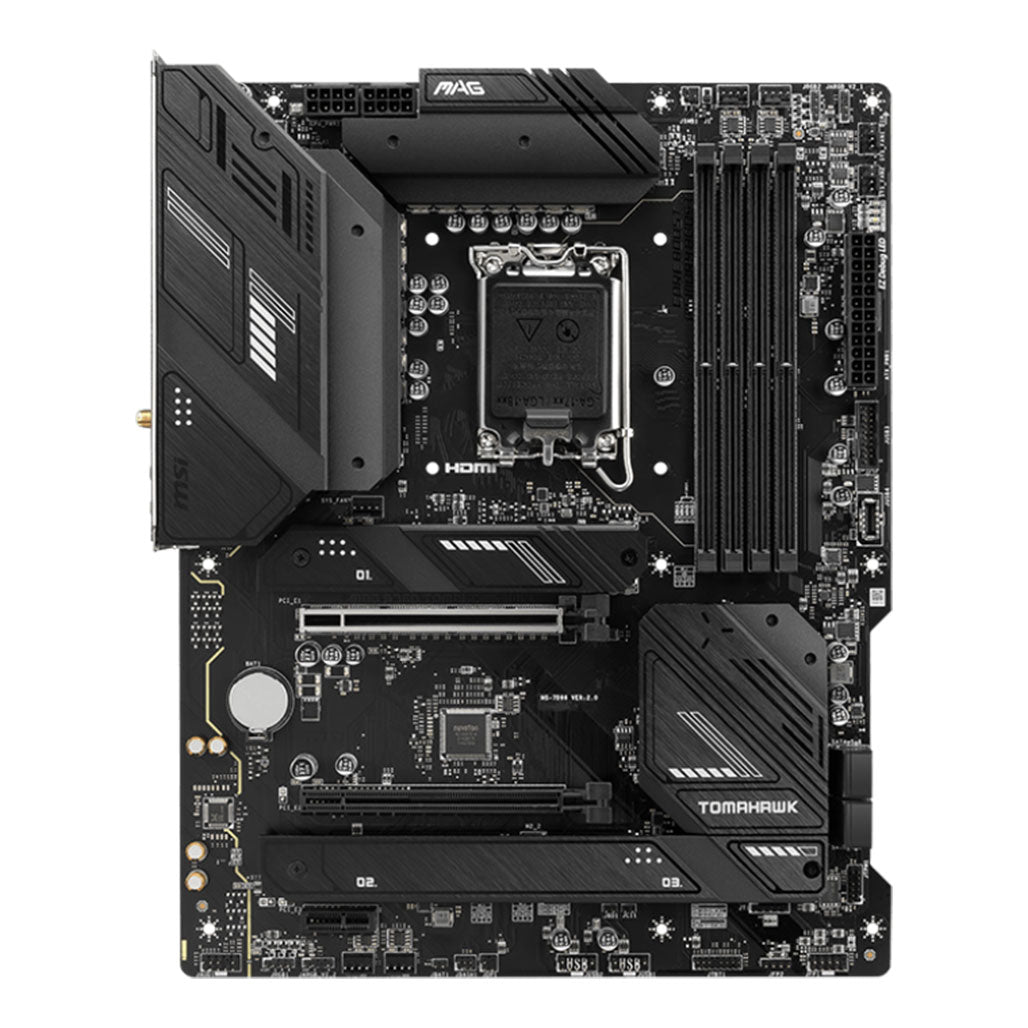

MSI MAG B760 Tomahawk WiFi Motherboard - 911-7D96-003 | High-Performance with DDR5 and PCIe 5.0

The MSI MAG B760 Tomahawk WiFi motherboard delivers cutting-edge performance and connectivity for modern computing needs. Compatible with Intel® Core™ 14th, 13th, and 12th Gen processors, as well as Intel® Pentium® Gold and Celeron® processors, this motherboard supports the LGA 1700 socket and provides a high-performance foundation for any PC build.

Supporting up to 192 GB of DDR5 memory with speeds reaching up to 7000+ MHz, the MAG B760 Tomahawk ensures rapid data transfer and improved system responsiveness. The advanced 12+1+1 Duet Rail Power System and dual 8-pin CPU power connectors offer stable power delivery for overclocking and high-demand applications.

The motherboard features PCIe 5.0 and PCIe 4.0 slots, alongside three M.2 slots and four SATA 6G ports, providing ample and fast storage options. The premium thermal design includes an extended heatsink and M.2 Shield Frozr to maintain optimal temperatures during intense workloads.

With Intel® Wi-Fi 6E and Bluetooth® 5.3, the MAG B760 Tomahawk ensures superior wireless connectivity and faster data transfer rates. The board also includes a comprehensive array of USB ports, including USB 3.2 Gen 2x2 Type-C for high-speed data transfer.

Key Features:

• Socket & Chipset: LGA 1700 socket with Intel® B760 chipset, supporting Intel® Core™ 14th/13th/12th Gen processors.
• Memory: 4x DDR5 slots, maximum 192 GB, supports up to 7000+ MHz (overclocked).
• Expansion Slots: 2x PCIe x16, 1x PCIe x1, supports PCIe 5.0 and PCIe 4.0.
• Storage: 3x M.2 slots, 4x SATA 6G ports for extensive and fast storage solutions.
• RAID: Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA devices.

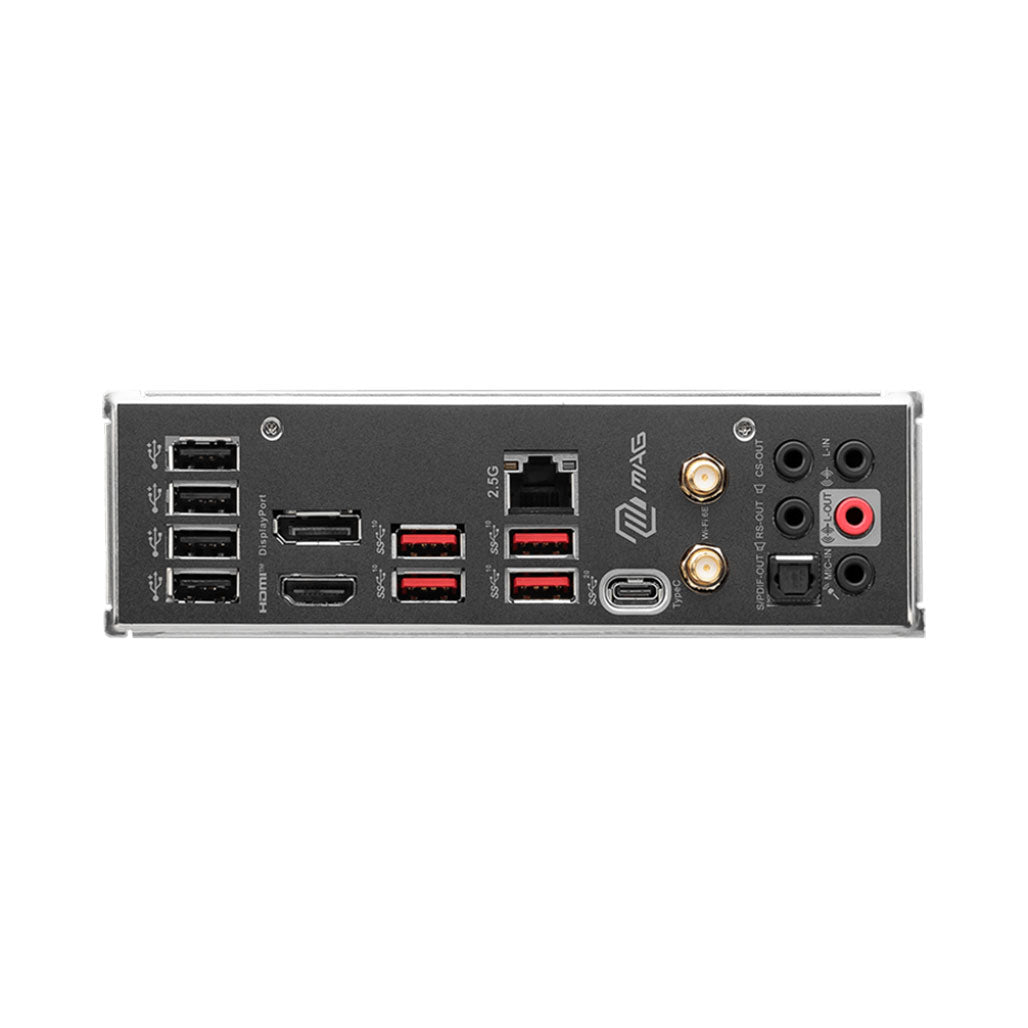

• USB Ports: 4x USB 2.0 (rear), 4x USB 2.0 (front), 1x USB 3.2 Gen 2 Type-C (front), 4x USB 3.2 Gen 2 Type-A (rear), 1x USB 3.2 Gen 2x2 Type-C (rear).
• Networking: Realtek® 2.5Gbps LAN, Intel® Wi-Fi 6E, supports MU-MIMO and up to 2.4Gbps wireless speed.
• Audio: Realtek® ALC897 Codec, 7.1-Channel High Performance Audio with S/PDIF output.
• Video Outputs: 1x HDMI™ 2.1 (4K 60Hz), 1x DisplayPort 1.4 (8K 60Hz).
• Internal I/O: Comprehensive connectivity with multiple fan connectors, RGB headers, and TPM pin header.
• LED Feature: 4x EZ Debug LED for troubleshooting.

Specifications:

• Chipset: Intel B760
• CPU: Supports Intel® Core™ 14th/13th/12th Gen processors, Intel® Pentium® Gold and Celeron® (LGA 1700)
• Memory: 4x DDR5, maximum 192 GB, supports up to 7000+ MHz
• Onboard Graphics: 1x HDMI, 1x DisplayPort
• Expansion Slots: 2x PCIe x16, 1x PCIe x1
• Storage: 3x M.2 slots, 4x SATA 6G
• RAID: RAID 0, RAID 1, RAID 5, RAID 10
• USB Ports: 4x USB 2.0 (rear), 4x USB 2.0 (front), 1x USB 3.2 Gen 2 Type-C (front), 4x USB 3.2 Gen 2 Type-A (rear), 1x USB 3.2 Gen 2x2 Type-C (rear)
• Networking: Realtek® 2.5Gbps LAN, Intel® Wi-Fi 6E, Bluetooth® 5.3
• Audio: Realtek® ALC897 Codec, 7.1-Channel Audio
• Video Outputs: 1x HDMI 2.1, 1x DisplayPort 1.4
• Operating System: Windows® 11 64-bit, Windows® 10 64-bit
• Form Factor: ATX, dimensions 243.84mm x 304.8mm

Conclusion:

The MSI MAG B760 Tomahawk WiFi motherboard is engineered to deliver outstanding performance and connectivity for high-end computing and gaming. With its support for the latest Intel processors, DDR5 memory, and PCIe 5.0, it provides a future-proof foundation for building a powerful PC. The advanced thermal design and robust connectivity options ensure reliability and speed, making it an excellent choice for enthusiasts and professionals alike.
