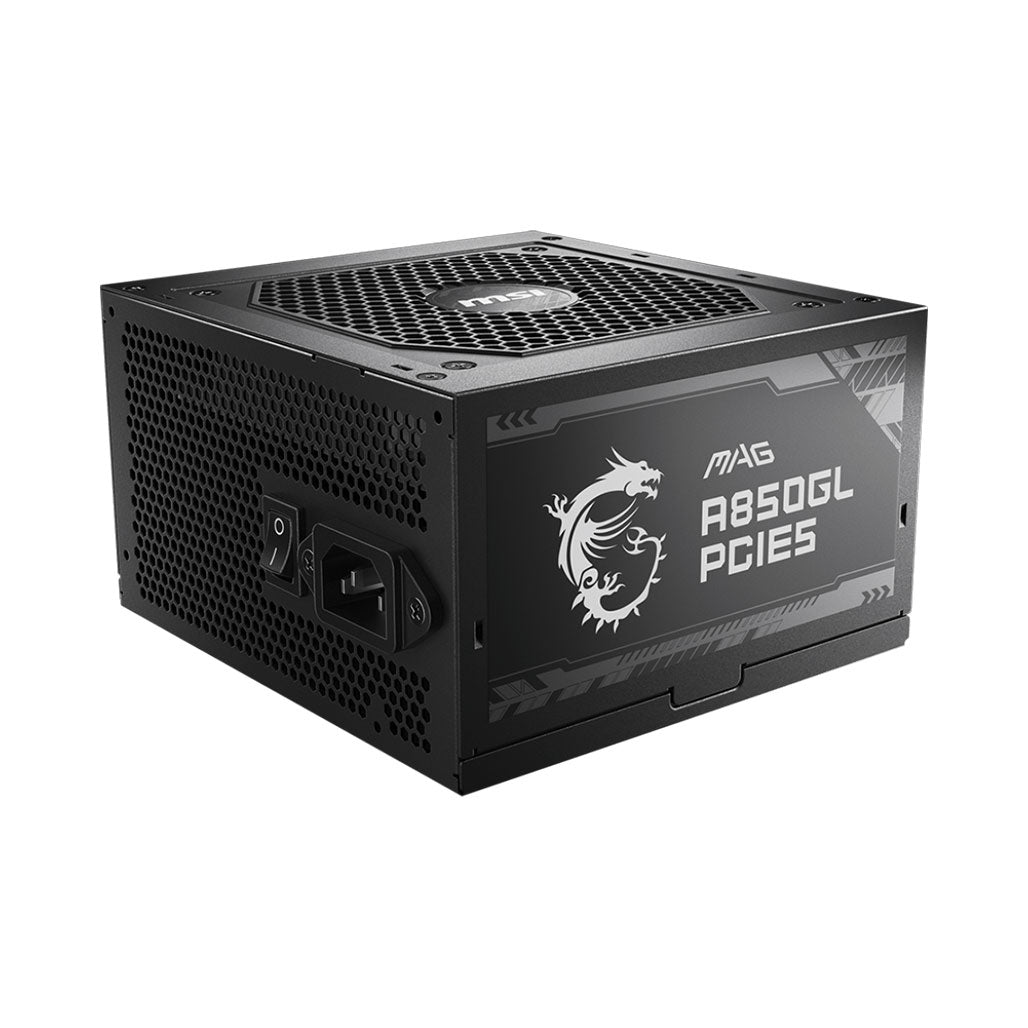

MSI MAG A850GL – 850W PCIe 5.0 Power Supply with 80 PLUS Gold Certification and Full Modular Design

The MSI MAG A850GL 850W PCIe 5.0 Power Supply is designed to provide top-notch performance and efficiency for demanding systems. Adhering to ATX 3.0 and PCIe 5.0 standards, this power supply supports up to 2x total power excursion and 3x GPU power excursion, ensuring reliable and stable power delivery even under intense load. With its 80 PLUS Gold certification, the MAG A850GL offers up to 90% efficiency, translating to lower energy consumption and reduced electricity costs.

Featuring a compact design, this power supply helps save space within your PC case, allowing for improved cable management and better airflow. Its full modular design ensures that only the necessary cables are used, minimizing clutter and simplifying system assembly. The flat cables included with the MAG A850GL make cable organization easier and reduce potential airflow obstructions. Additionally, the fluid dynamic bearing fan balances efficient cooling with low noise levels. The power supply’s DC-to-DC and Full Bridge technologies enhance conversion efficiency and provide stable output voltage, accommodating various usage scenarios seamlessly.

Key Features:

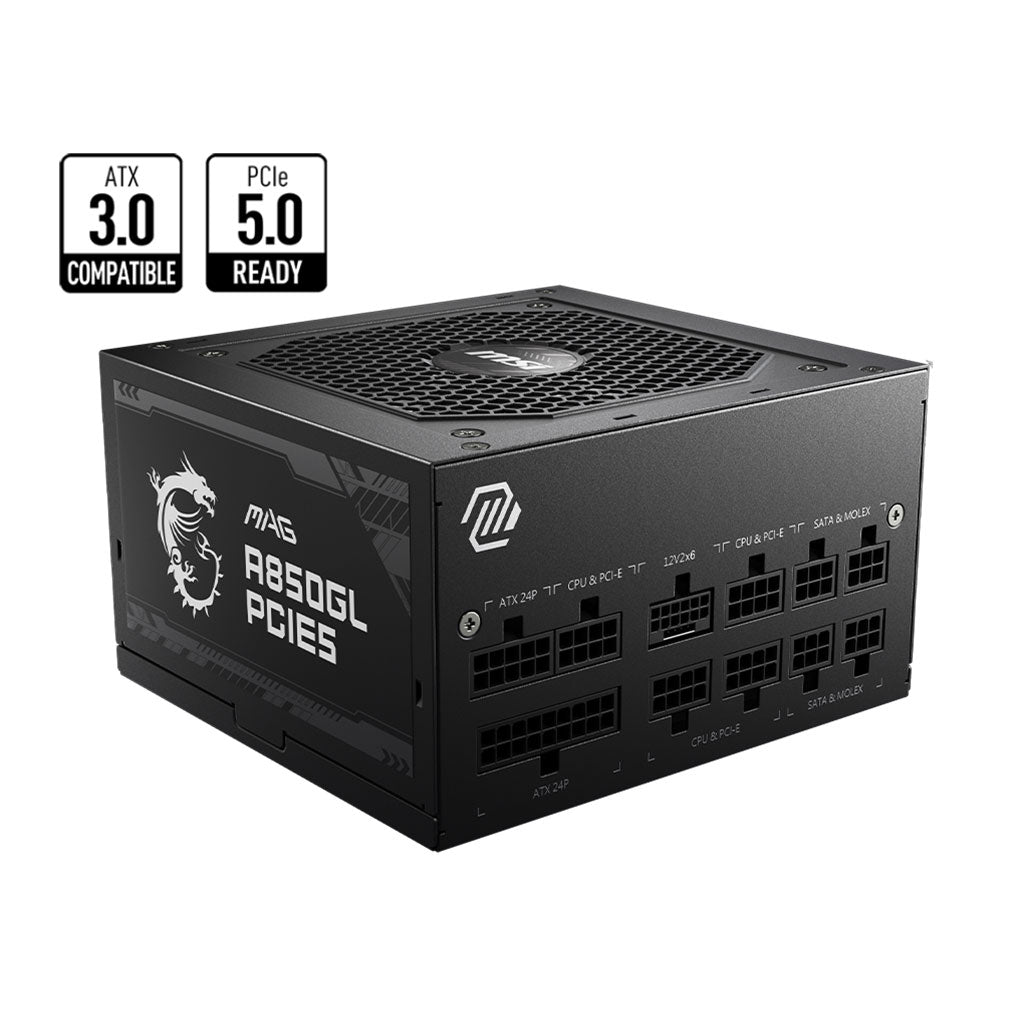

• ATX 3.0 and PCIe 5.0 Compatibility: Supports advanced power delivery standards with up to 2x total power excursion and 3x GPU power excursion.
• 80 PLUS Gold Certification: Delivers up to 90% efficiency, reducing energy consumption and operating costs.
• Compact Sizing: Space-saving design facilitates better cable management and more room for airflow.

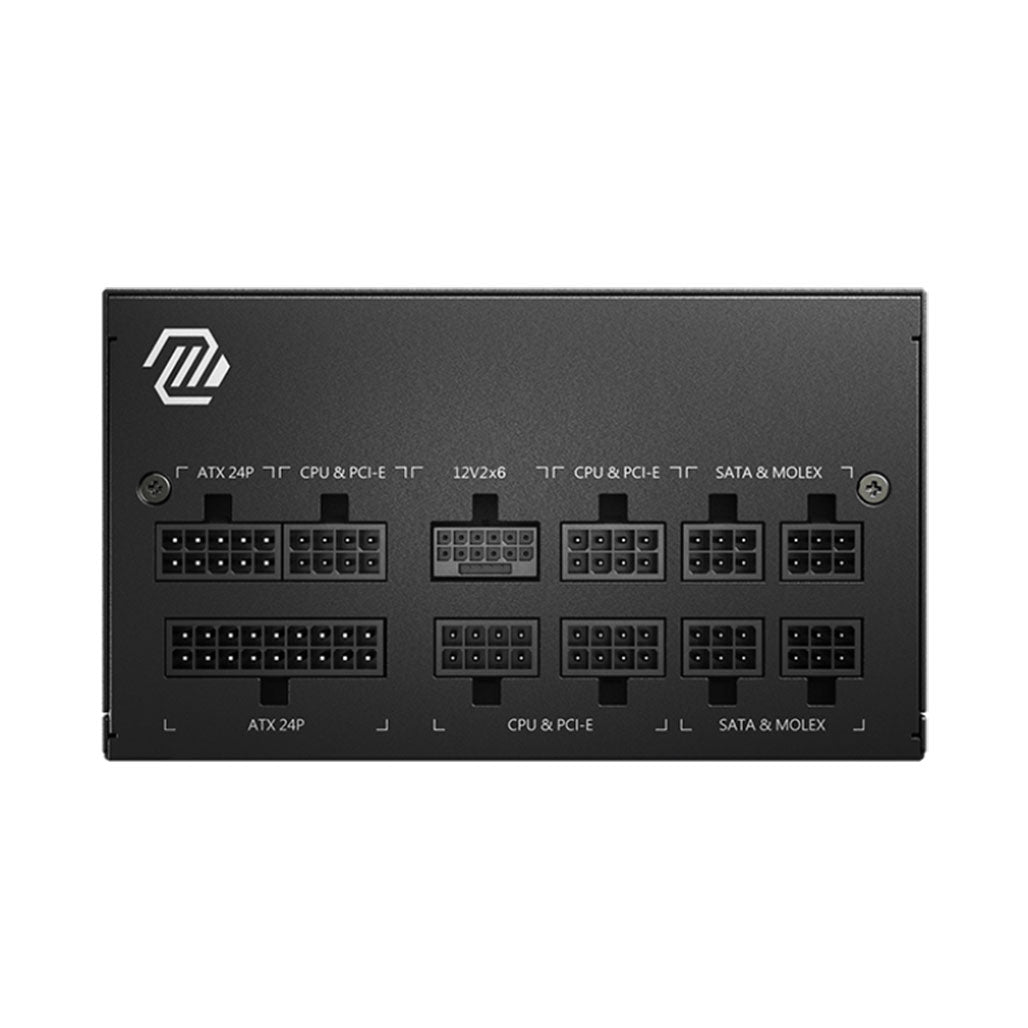

• Full Modular Design: Allows use of only required cables, reducing clutter and simplifying installation.
• Flat Cables: Enhances cable management and improves airflow by reducing obstructions.

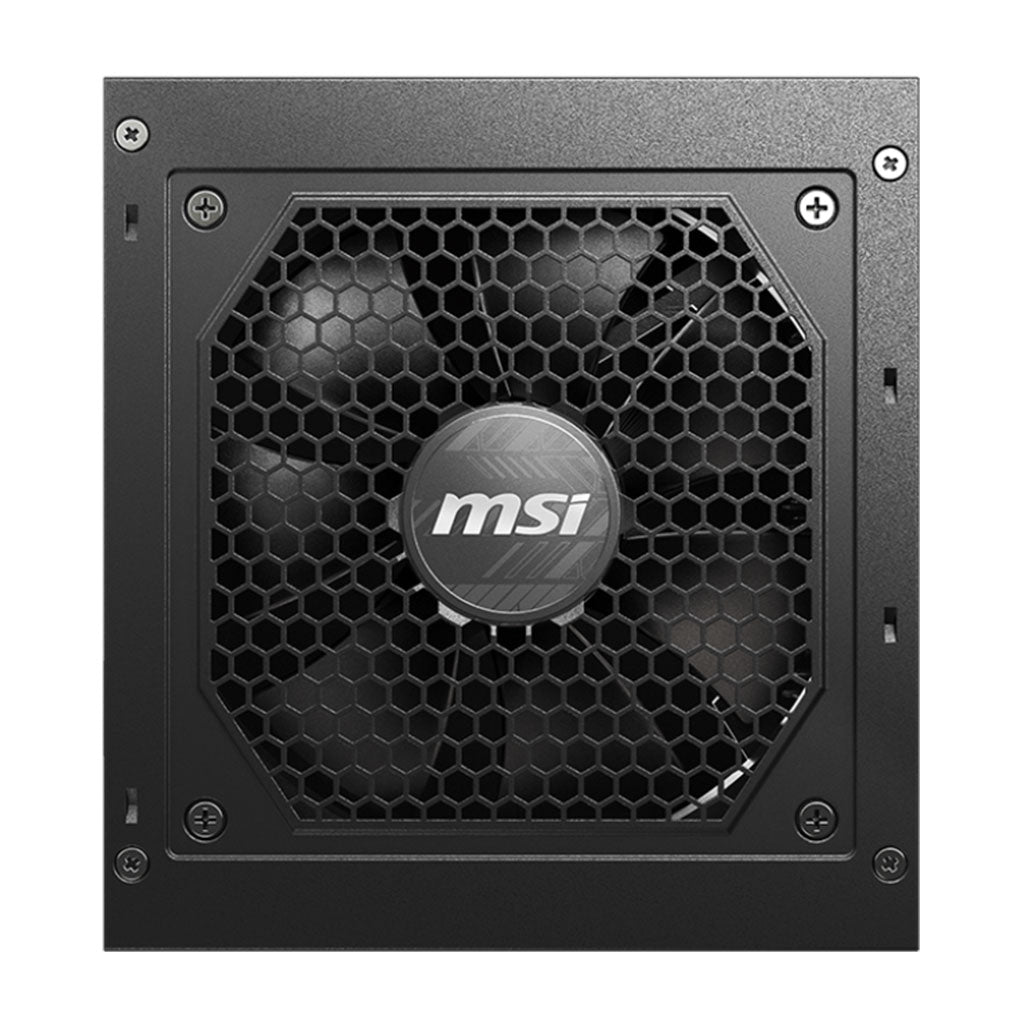

• Fluid Dynamic Bearing Fan: Balances cooling performance with low noise operation.
• DC-to-DC & Full Bridge Technology: Achieves high conversion efficiency and stable output voltage for varied scenarios.
• Single Rail Power Supply: Adequate for high-performance graphics cards and CPUs with 5 CPU & PCI-E slots.
• Comprehensive Protection: Includes OCP, OVP, OPP, OTP, SCP, and UVP for robust system safety.

Specifications:

• EFFICIENCY RATING: 80 PLUS Gold (up to 90%)
• MODULAR: Yes (full modular)
• FAN SIZE: 120 mm
• FAN BEARING: Fluid Dynamic Bearing
• DIMENSIONS (DXWXH): 140 x 150 x 86 mm
• PFC TYPE: Active PFC
• INPUT VOLTAGE RANGE: 100~240 VAC
• POWER WATT: 850W
• POWER EXCURSION: 1700W (*up to 200% of the PSU's rated power for 100μs)
• INPUT FREQUENCY RANGE: 47-63Hz
• PROTECTION: OCP / OVP / OPP / OTP / SCP / UVP
• ATX (24 PIN): 1
• EPS (4+4 PIN): 2
• PCI-E 5.0 (16 PIN): 1 (600W)
• PCI-E (6+2 PIN): 4
• SATA (15 PIN): 8
• MOLEX (4 PIN): 4
• FDD (4 PIN): 1

The MSI MAG A850GL Power Supply ensures reliable and efficient power for high-performance systems, providing the stability and efficiency needed for demanding computing tasks.
