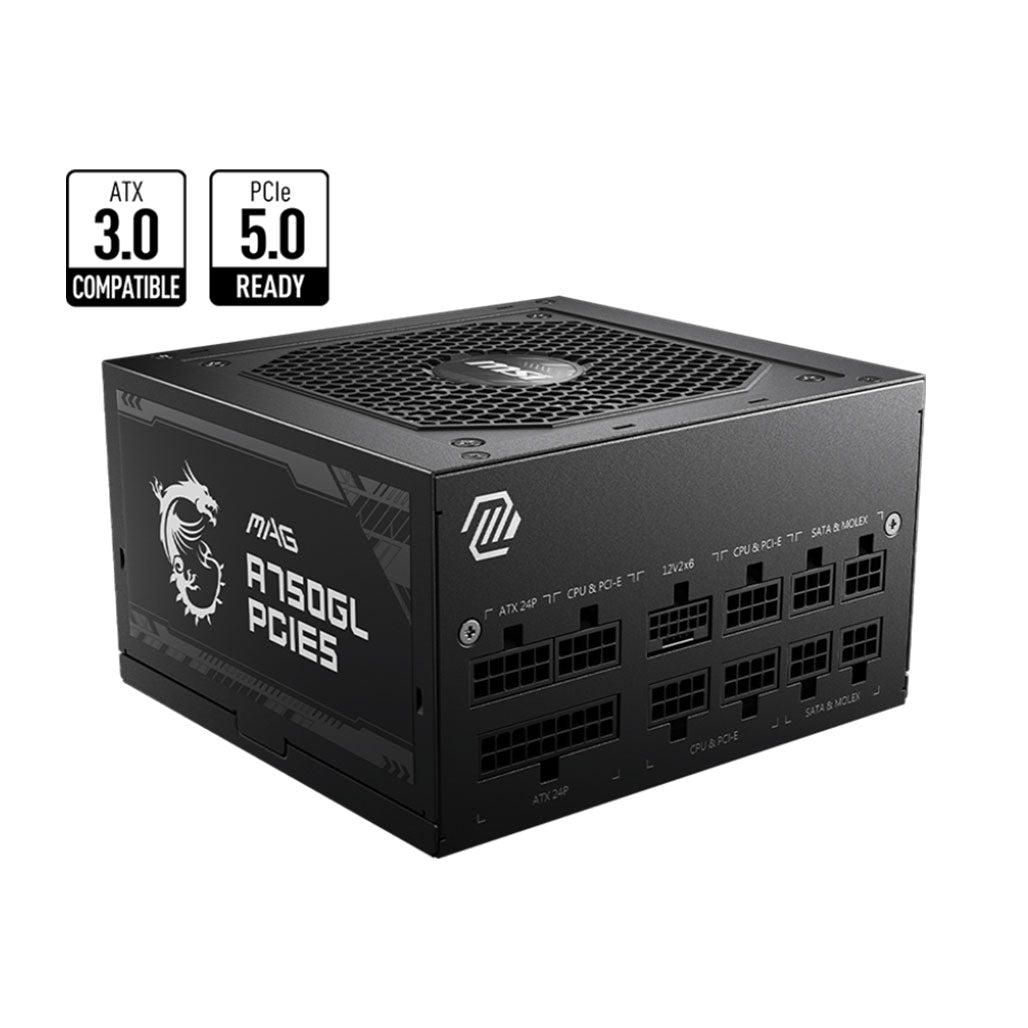

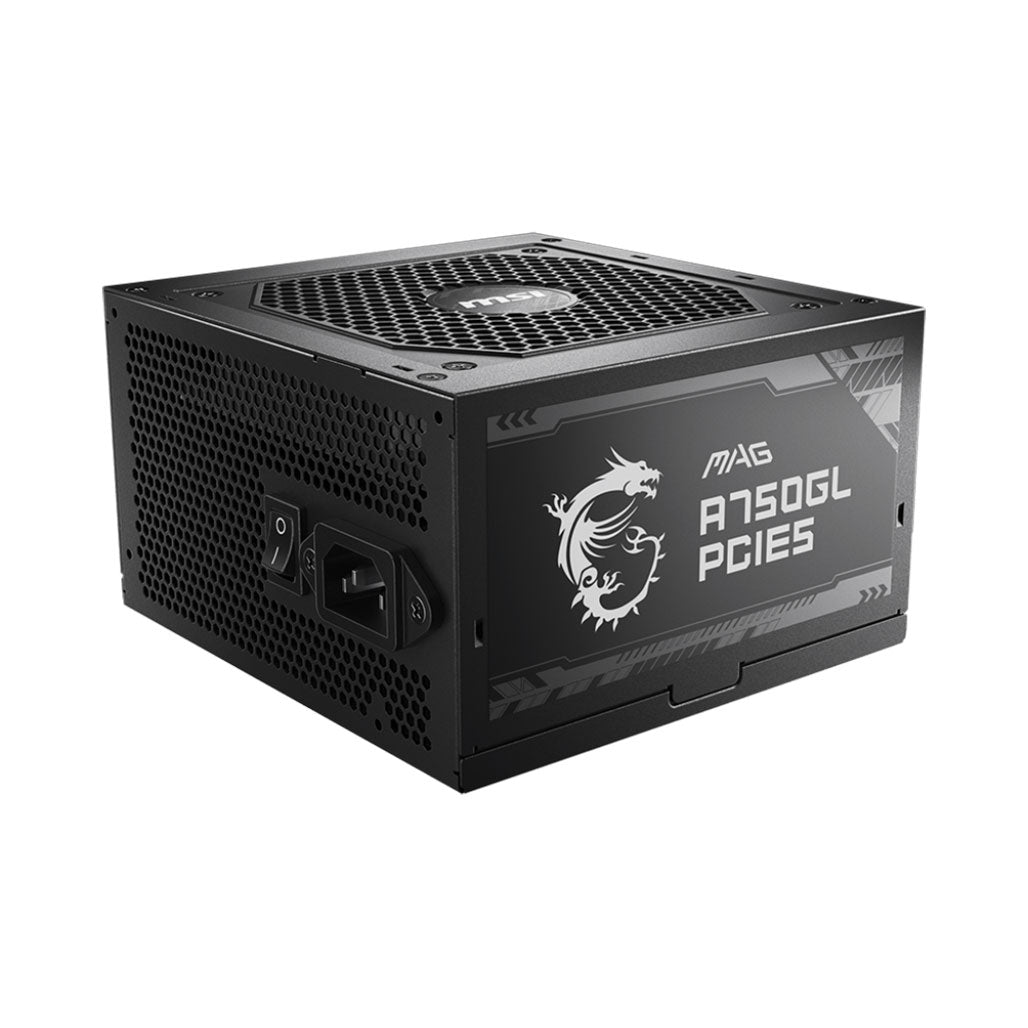

MSI MAG A750GL – 750W PCIe 5.0 Power Supply with 80 PLUS Gold Certification and Full Modular Design

Enhance your system's performance and efficiency with the MSI MAG A750GL 750W PCIe 5.0 Power Supply. Designed to meet the latest ATX 3.0 and PCIe 5.0 standards, this power supply supports up to 2x total power excursion and 3x GPU power excursion, ensuring reliable power delivery for high-performance components. With an 80 PLUS Gold certification, it offers up to 90% efficiency, reducing energy consumption and lowering operational costs.

The compact design of the MAG A750GL not only saves space but also facilitates easier cable management, keeping your PC case organized and airflow unobstructed. Its full modular design allows for the use of only necessary cables, minimizing clutter and simplifying your build. The included cable pack offers convenient storage for unused cables. The power supply features a fluid dynamic bearing fan that balances cooling performance with minimal noise. Additionally, its DC-to-DC and Full Bridge technologies ensure high conversion efficiency, stable output voltage, and rapid voltage adjustments for various usage scenarios.

Key Features:

• ATX 3.0 Compatible: Supports PCIe 5.0 and Intel PSDG (Power Supply Design Guide) with up to 2x total power excursion and 3x GPU power excursion.
• 80 PLUS Gold Certification: Provides up to 90% efficiency, reducing energy consumption and lowering electricity costs.
• Compact Sizing: Space-saving design for easier cable management and improved airflow within the PC case.

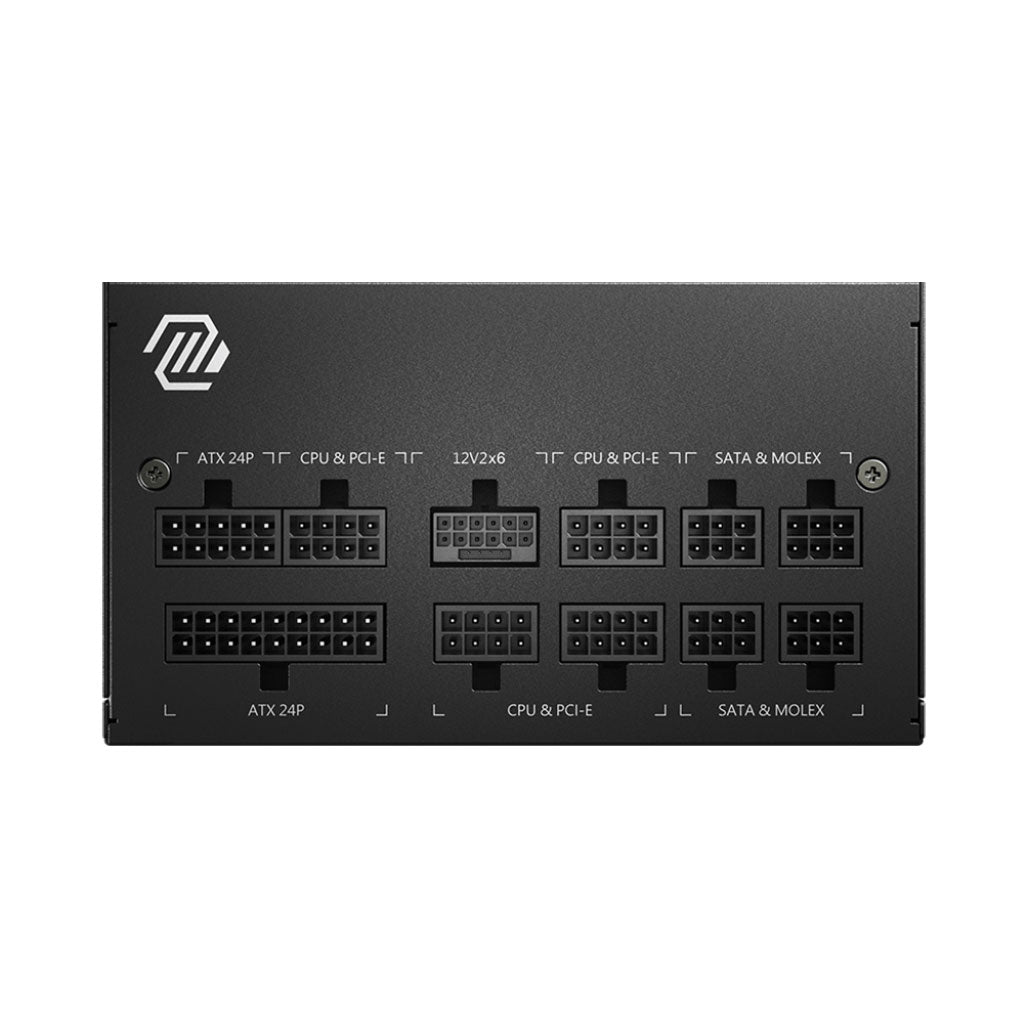

• Full Modular Design: Use only necessary cables to minimize clutter and simplify the system build.

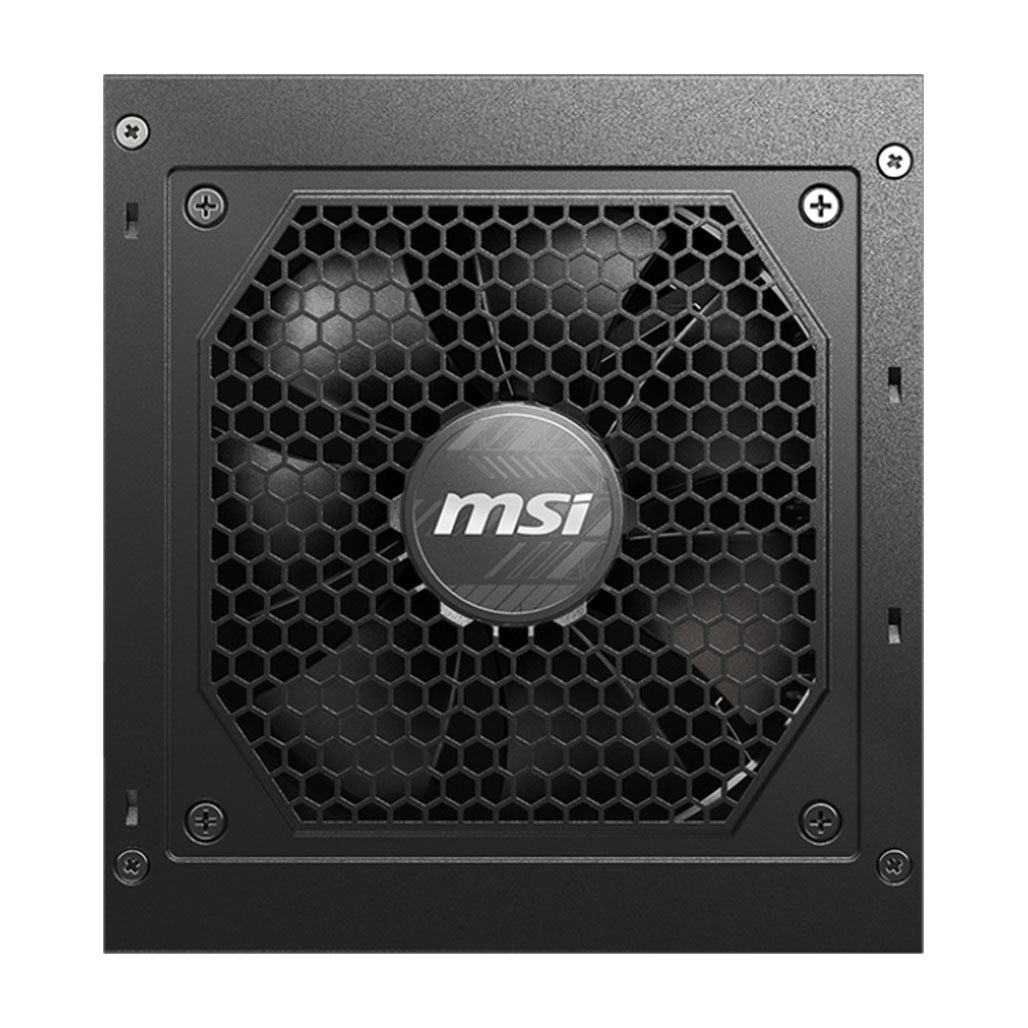

• Fluid Dynamic Bearing: Ensures a balance between effective cooling and low noise levels.
• DC-to-DC & Full Bridge Technology: Delivers high conversion efficiency, stable output voltage, and rapid voltage adjustments.
• Single Rail Power Supply: Adequate for high-performance graphics cards and CPUs with 5 CPU & PCI-E slots.
• Protection Mechanisms: Includes OCP, OVP, OPP, OTP, SCP, and UVP for comprehensive system safety.

Specifications:

• EFFICIENCY RATING: 80 PLUS Gold (up to 90%)
• MODULAR: Yes (full modular)
• FAN SIZE: 120 mm
• FAN BEARING: Fluid Dynamic Bearing
• DIMENSIONS (DXWXH): 140 x 150 x 86 mm
• PFC TYPE: Active PFC
• INPUT VOLTAGE RANGE: 100~240 VAC
• POWER WATT: 750W
• POWER EXCURSION: 1500W (*up to 200% of the PSU's rated power for 100μs)
• INPUT FREQUENCY RANGE: 47-63Hz
• PROTECTION: OCP / OVP / OPP / OTP / SCP / UVP
• ATX (24 PIN): 1
• EPS (4+4 PIN): 2
• PCI-E 5.0 (16 PIN): 1 (450W)
• PCI-E (6+2 PIN): 3
• SATA (15 PIN): 8
• MOLEX (4 PIN): 4
• FDD (4 PIN): 1

The MSI MAG A750GL Power Supply is crafted to provide dependable and efficient power, ensuring that your high-performance system operates smoothly and safely.
