MSI A320M Grenade Motherboard - 911-7A39-009 | Reliable Performance with Advanced Connectivity

The MSI A320M Grenade motherboard offers a robust and versatile foundation for your computing needs. Designed for users seeking reliability and advanced connectivity in a compact form factor, this motherboard supports a wide range of components and peripherals, making it an excellent choice for both everyday computing and more demanding tasks.

The A320M Grenade features a range of connectivity options to enhance your system's performance. It includes multiple USB ports, both USB 2.0 and USB 3.0, as well as video outputs such as DVI-D, HDMI, and VGA. With a variety of internal connections, including fan headers, RGB header, and additional USB headers, this motherboard allows for flexible expansion and customization.

Built with a focus on durability and functionality, the A320M Grenade is equipped with essential features such as a Realtek RTL8111H network chip for reliable wired connections and a Realtek ALC887 audio chipset for immersive 7.1 audio. The board supports up to 32 GB of DDR4 memory at speeds up to 3200 MHz, and includes an M.2 slot for high-speed storage options.

Key Features:

• Connectivity: Multiple USB ports (2x USB 2.0, 4x USB 3 Gen 1), video outputs (DVI-D, HDMI, VGA), and audio jacks for comprehensive connectivity options.
• Network: Equipped with Realtek RTL8111H for stable wired network connections.
• Audio: Realtek ALC887 chipset supports 7.1 channel audio for high-quality sound.
• Memory Support: 2 DIMM slots for DDR4 memory, supporting up to 32 GB at speeds up to 3200 MHz.
• Expansion: Includes 1x PCI-E 3.0 x16 and 2x PCI-E 2.0 x1 slots for additional components.
• Storage: 4x SATA3 ports and 1x M.2 slot for versatile storage options.
• Internal Headers: 3x 4-pin fan headers, RGB header, TPM header, and more for enhanced system cooling and customization.

Specifications:

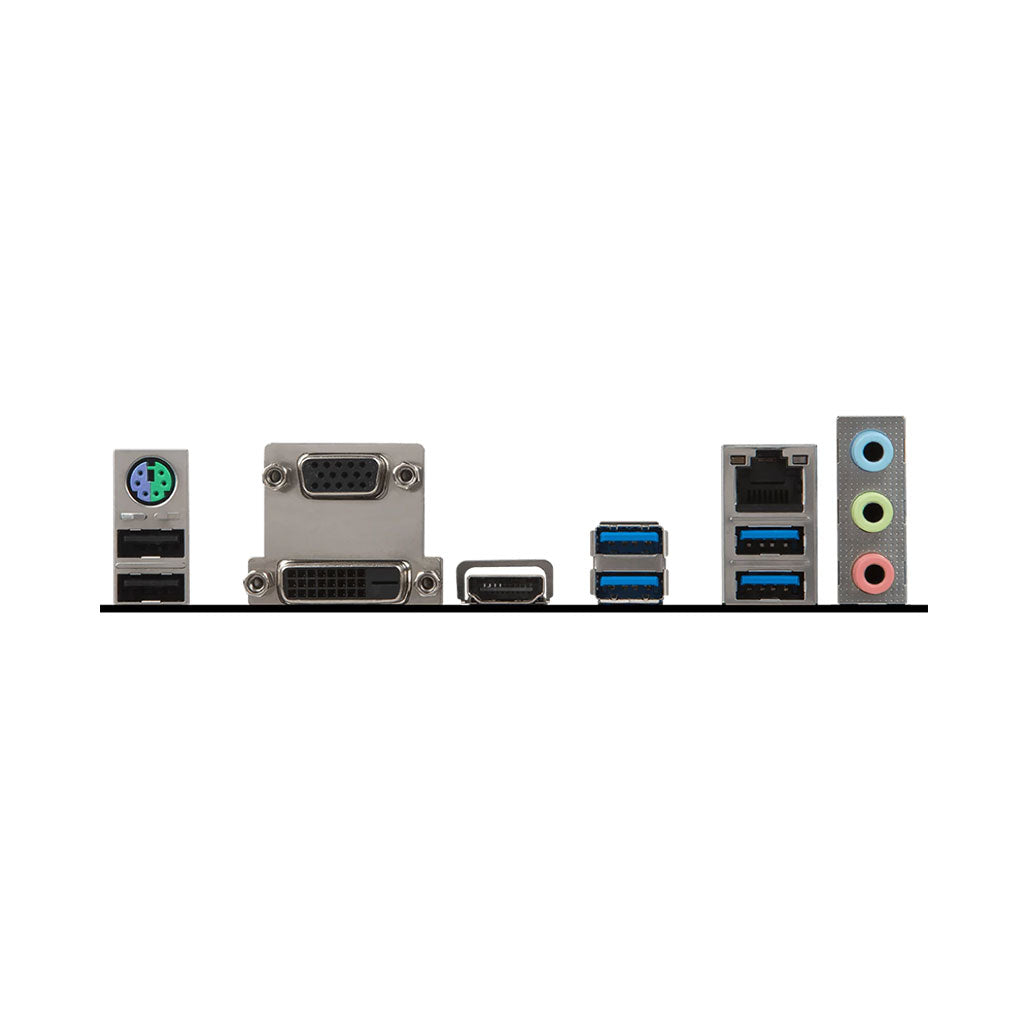

• Back IO:

  • Audio: 3x Analog Audio Jack
  • Misc: 1x PS/2
  • Network: 1x RJ-45 (Realtek RTL8111H, 1000 Mbit)
  • USB: 2x USB 2.0 Type-A, 4x USB 3 Gen 1 Type-A
  • Video: 1x DVI-D, 1x HDMI Out, 1x VGA

• Internal Connections:

  • Fans: 3x 4-pin Fan Header
  • Misc: 1x 2-pin Slow Mode Header, 1x Chassis Intrusion Header, 1x Parallel Header, 1x RGB Header, 1x Serial Header, 1x TPM Header
  • Power: 1x 8-pin 12V Power
  • Storage: 4x SATA3
  • USB: 2x USB 2 Header, 1x USB 3 Gen 1 Header

• PCB Color: Brown (also available in Black, Red)

• LED Color: Red

• Memory:

  • Slots: 2x DDR4 DIMM
  • Maximum Speed: 3200 MHz
  • Maximum Capacity: 32 GB
  • ECC Support: No

• M.2 Slot:

  • Amount: 1x M-Key
  • Sizes: 2242, 2260, 2280
  • Speeds: PCI-E 3.0 x4, SATA3

Conclusion:

The MSI A320M Grenade motherboard delivers reliable performance and versatile connectivity options, making it a solid choice for various computing needs. Its durable design, combined with support for high-speed memory and storage, ensures that your system can handle both everyday tasks and more intensive applications. With its comprehensive set of features and robust build quality, this motherboard provides a dependable foundation for your PC build.
