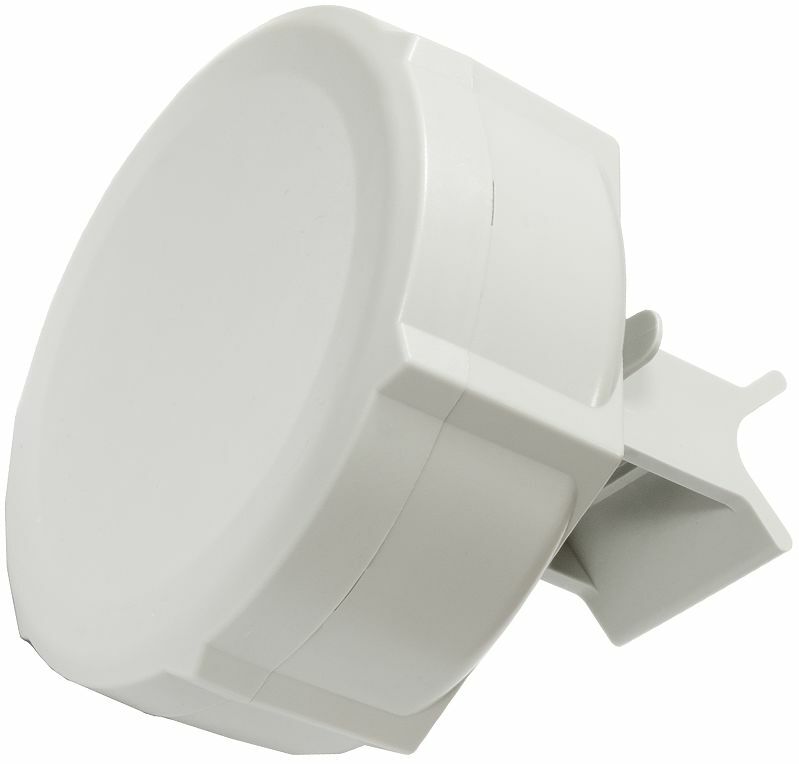

The MikroTik SXT 6 RBSXTG-6HPnD represents a high-performance solution for licensed 5.9-6.4GHz frequency bands, designed to provide reliable and high-speed wireless connectivity. This device is equipped with a 16dBi dual-chain antenna and a 28-degree beamwidth, making it suitable for use as both a base station and a customer premises equipment (CPE). Additionally, two units can be paired to establish a point-to-point link, offering robust and stable communication over long distances.
Operating with RouterOS Level 4 license, the SXT 6 is engineered to meet the rigorous demands of professional wireless networking. Its passive cooling system ensures efficient operation even under extreme temperatures, ranging from -40°C to 70°C. It is important to note that this product is intended exclusively for licensed frequency bands, and its use is subject to regional regulations and availability.
Key Features:
-
High-Power Antenna: The integrated 16dBi dual-chain antenna with a 28-degree beamwidth provides excellent signal strength and coverage, making it ideal for long-range point-to-point connections and base station setups.
-
Licensed Frequency Band: Designed for the 5.9-6.4GHz frequency range, this device supports licensed band operations, ensuring compliance with regulatory requirements for specific regions.
-
RouterOS Integration: The device operates with RouterOS Level 4, offering advanced configuration options and features for professional network management.
-
Robust Build Quality: Engineered to withstand harsh environmental conditions, the SXT 6 operates effectively in temperatures ranging from -40°C to 70°C.
-
Powering Flexibility: The device supports passive PoE with an input voltage range of 7-30 V, providing versatile powering options for different installation scenarios.
Specifications:
-
Product code: RBSXTG-6HPnD
-
Architecture: MIPSBE
-
CPU: AR9344
-
CPU core count: 1
-
CPU nominal frequency: 600 MHz
-
Dimensions: 140 x 140 x 56 mm
-
RouterOS license: 4
-
Operating System: RouterOS
-
Size of RAM: 64 MB
-
Storage size: 16 MB
-
Storage type: FLASH
-
MTBF: Approximately 100,000 hours at 25°C
-
Tested ambient temperature: -40°C to 70°C
Powering:
-
Number of DC inputs: 1 (PoE-IN)
-
Max power consumption: 14 W
-
Cooling type: Passive
-
PoE in: Passive PoE
-
PoE in input Voltage: 7-30 V
Wireless Specifications:
-
Wireless 6 GHz Max data rate: 300 Mbit/s
-
Wireless 6 GHz number of chains: 2
-
Wireless 6 GHz standards: 802.11a/n
-
Antenna gain dBi for 6 GHz: 16
-
Wireless 6 GHz chip model: AR9344
-
Wireless 6 GHz generation: Wi-Fi 4
Ethernet:
-
10/100/1000 Ethernet ports: 1
Peripherals:
-
Number of USB ports: 1
-
USB Power Reset: Yes
-
USB slot type: USB type A
-
Max USB current (A): 1
Other:
-
PCB temperature monitor: Yes
-
Voltage Monitor: Yes
-
Beeper: Yes
Certification & Approvals:
In summary, the MikroTik SXT 6 RBSXTG-6HPnD is a powerful and reliable wireless system designed for licensed frequency bands. Its high-gain antenna, durable build, and advanced RouterOS capabilities make it an excellent choice for establishing robust and high-speed wireless connections in demanding environments.
