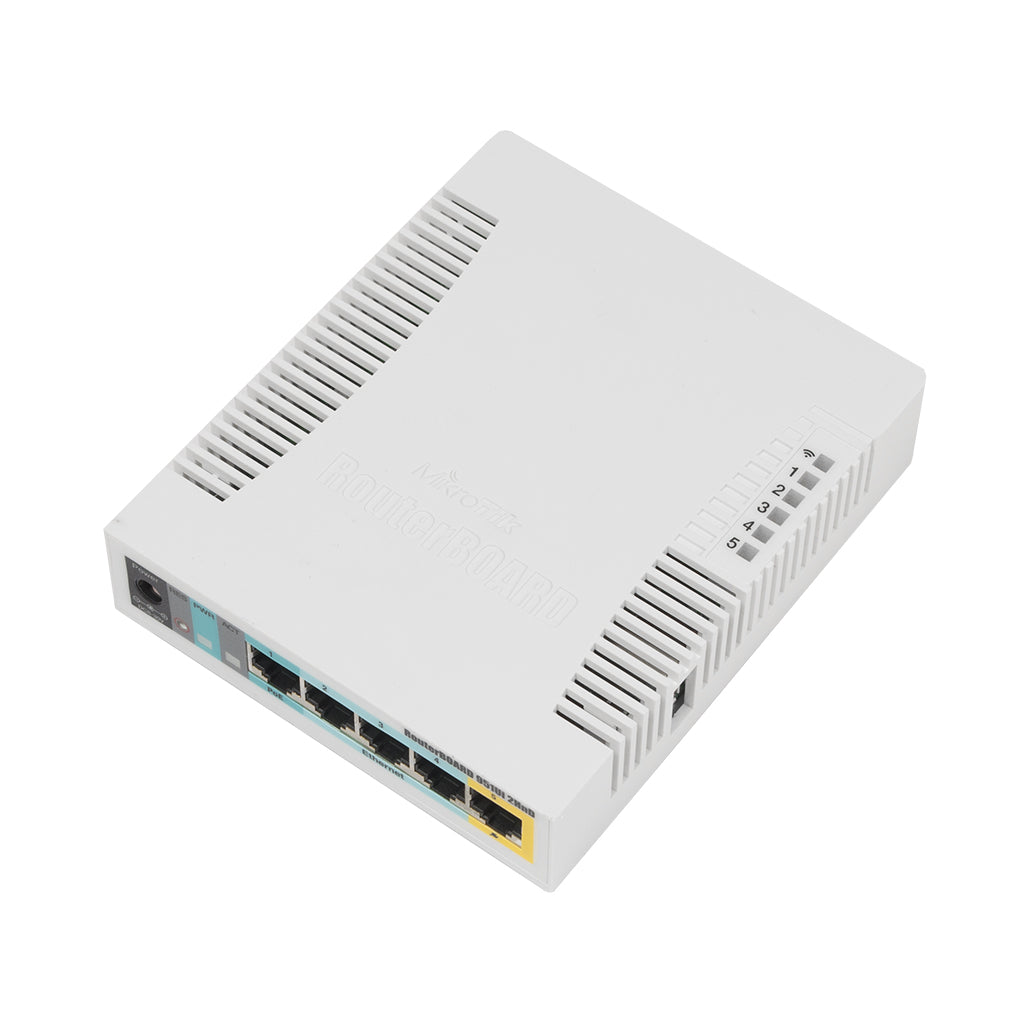

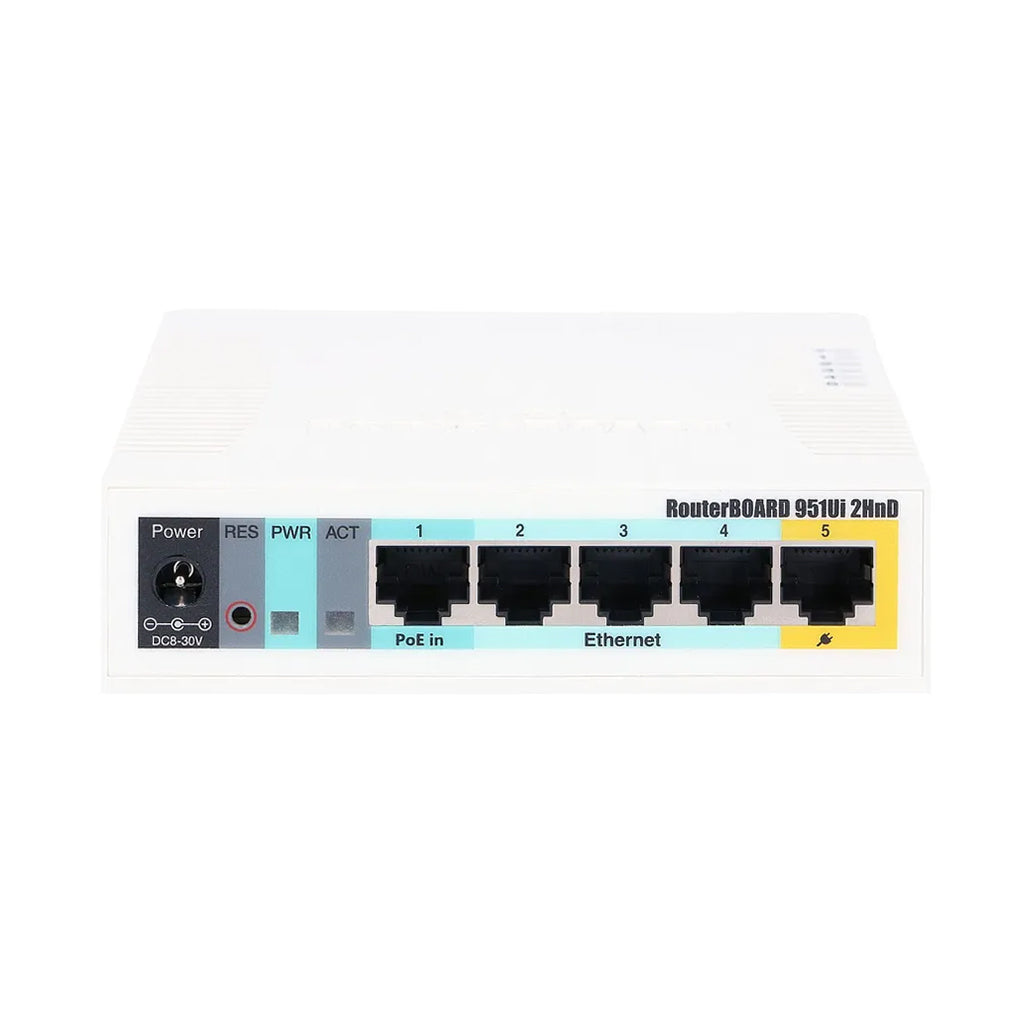

MikroTik RB951Ui-2HnD - 2.4GHz Wireless Access Point with 5 Ethernet Ports and PoE Output

The MikroTik RB951Ui-2HnD is a versatile and high-performance wireless access point designed for small office and home office (SOHO) environments. Featuring a robust 600MHz Atheros CPU and 128MB of RAM, this device provides reliable network connectivity with its integrated 2.4GHz wireless AP and five Ethernet ports.

The RB951Ui-2HnD supports advanced wireless standards with its 2.4GHz 802.11b/g/n capabilities, delivering a maximum data rate of 300 Mbps. It includes built-in antennas for optimal coverage and a PoE output function on port #5, allowing it to power other PoE-capable devices with the same voltage applied to the unit (up to 500mA).

The router comes equipped with a USB 2.0 port, offering additional connectivity options. It operates on RouterOS, providing a comprehensive set of features and easy configuration through a web-based interface.

Key Features:

• High Performance: Equipped with a 600MHz CPU and 128MB RAM for efficient processing and multitasking.
• Wireless Connectivity: 2.4GHz AP with a maximum data rate of 300 Mbps and integrated antennas.
• PoE Output: Powers other PoE devices through port #5 with a maximum load of 500mA.
• Multiple Ports: Five Ethernet ports for wired connections and one USB 2.0 port for peripheral connectivity.
• Versatile Power Options: Supports both PoE and DC input with a wide voltage range.

Specifications:

• Product Code: RB951Ui-2HnD
• Architecture: MIPSBE
• CPU: AR9344
• CPU Core Count: 1
• CPU Nominal Frequency: 600 MHz
• Dimensions: 113 x 138 x 29 mm
• RouterOS License: 4
• Operating System: RouterOS
• RAM Size: 128 MB
• Storage Size: 128 MB
• Storage Type: NAND
• MTBF: Approximately 100,000 hours at 25°C
• Tested Ambient Temperature: -20°C to +60°C

Wireless Capabilities:

• 2.4 GHz:
  • Max Data Rate: 300 Mbps
  • Number of Chains: 2
  • Standards: 802.11b/g/n
  • Antenna Gain: 2.5 dBi
  • Chip Model: AR9344
  • Generation: Wi-Fi 4

Ethernet:

• 10/100 Ethernet Ports: 5

Peripherals:

• USB Ports: 1
• USB Slot Type: USB Type A
• USB Power Reset: Yes
• Max USB Current: 1 A

Powering:

• Number of DC Inputs: 2 (PoE-IN, DC Jack)
• DC Jack Input Voltage: 8-30 V
• Max Power Consumption: 24 W
• Max Power Consumption Without Attachments: 7 W
• Cooling Type: Passive
• PoE In: Passive PoE
• PoE In Input Voltage: 8-30 V

PoE-Out:

• PoE-Out Ports: Ether5
• PoE Out: Passive PoE
• Max Out per Port Output (Input 18-30 V): 500 mA
• Max Total Out (A): 500 mA

Certification & Approvals:

• Certification: CE, FCC, IC, EAC, ROHS
• IP Rating: IP20

Other:

• Beeper: Yes

Wireless Specifications:

• 2.4 GHz:
  • Transmit (dBm):
    • 6MBit/s: 30
    • 54MBit/s: 25
    • MCS0: 30
    • MCS7: 23
  • Receive Sensitivity:
    • 6MBit/s: -96 dBm
    • 54MBit/s: -80 dBm
    • MCS0: -96 dBm
    • MCS7: -78 dBm

Conclusion:

The MikroTik RB951Ui-2HnD is an ideal solution for small network setups, offering a combination of performance, flexibility, and ease of use. Its robust wireless capabilities, PoE output function, and multiple connectivity options make it a valuable addition to any SOHO environment. The device's compact design and comprehensive features ensure reliable network performance and versatility.
