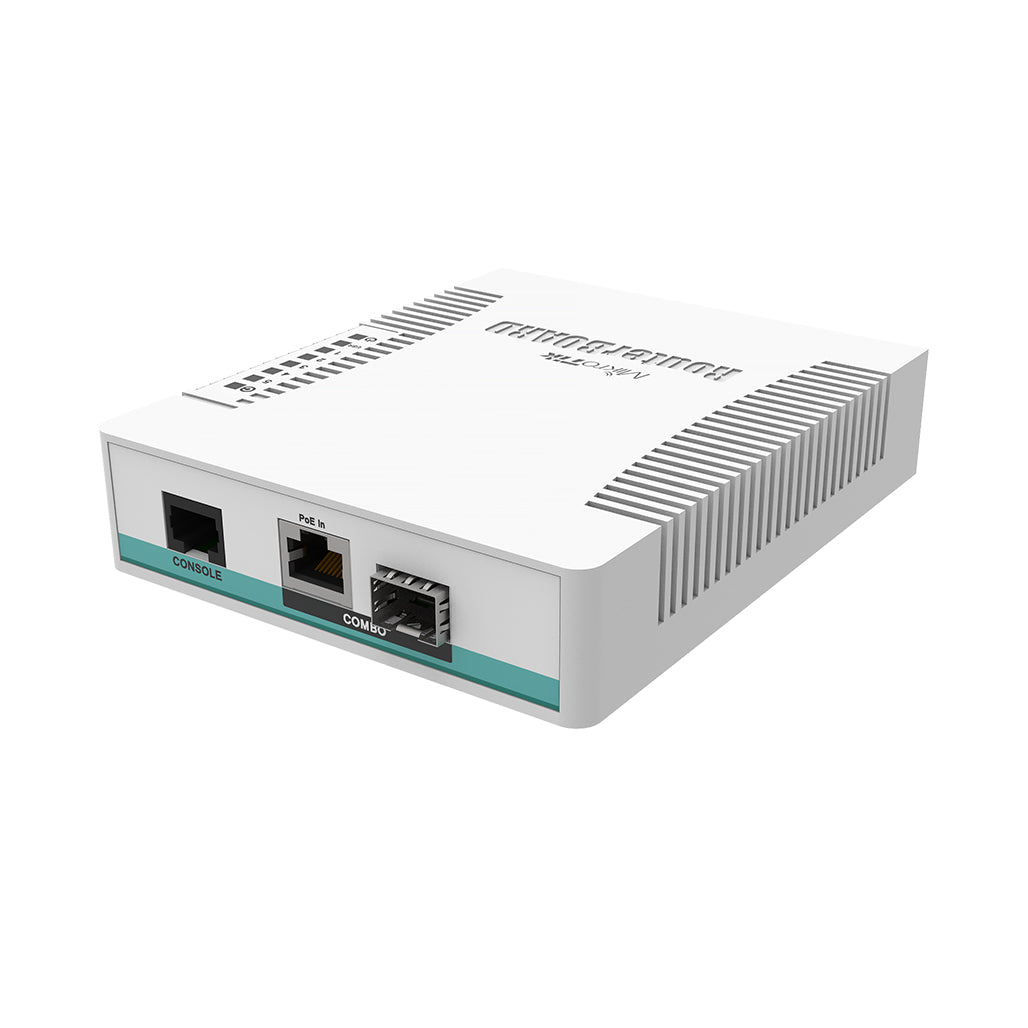

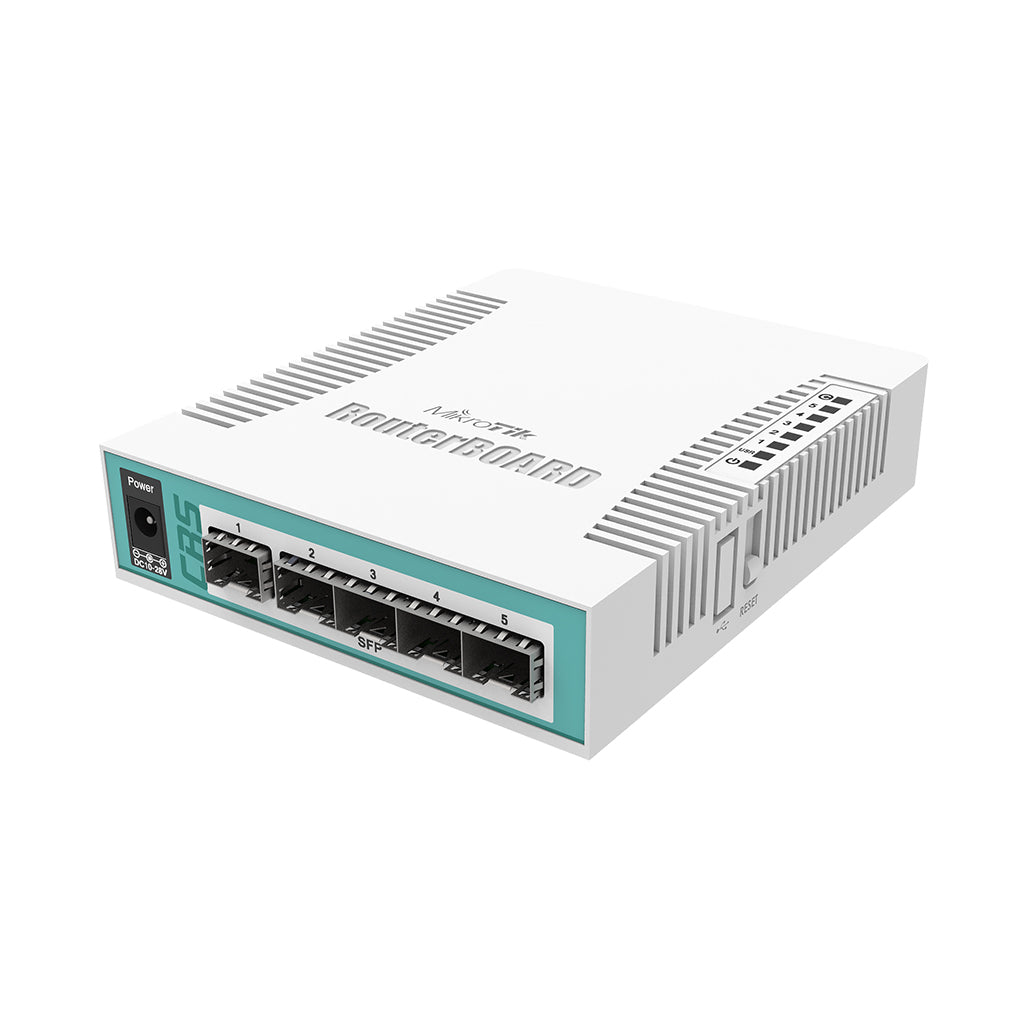

MikroTik Cloud Router Switch 106-1C-5S - Desktop Smart Switch with 5x SFP Cages

The MikroTik Cloud Router Switch 106-1C-5S is a compact and versatile desktop switch, designed for efficient network management. It features one Gigabit Ethernet/SFP combo port and five 1.25Gbps SFP cages, making it ideal for high-speed fiber connections.

Powered by a 400MHz CPU and 128MB of RAM, the switch runs on RouterOS with a Level 5 license, offering advanced features for network configuration. The device supports Passive PoE and comes with a power supply, ensuring flexible deployment and reliable performance.

Key Features:

• Versatile Connectivity: One Gigabit Ethernet/SFP combo port and five 1.25Gbps SFP cages.
• Advanced Management: Runs RouterOS with Level 5 license for extensive network management capabilities.
• Compact Design: Desktop size, suitable for various setups.
• Power Efficiency: Supports Passive PoE and operates within a broad voltage range.

Specifications:

• Product Code: CRS106-1C-5S
• Architecture: MIPSBE
• CPU: QCA8511
• CPU Core Count: 1
• CPU Nominal Frequency: 400 MHz
• Dimensions: 114 x 137 x 29 mm
• RouterOS License: 5
• Operating System: RouterOS
• Size of RAM: 128 MB
• Storage Size: 16 MB
• Storage Type: FLASH
• MTBF: Approximately 100,000 hours at 25°C
• Tested Ambient Temperature: -20°C to 70°C

Powering:

• Number of DC Inputs: 2 (DC jack, PoE-IN)
• DC Jack Input Voltage: 11-30 V
• Max Power Consumption: 11 W
• Cooling Type: Passive
• PoE In: Passive PoE
• PoE In Input Voltage: 11-30 V

Ethernet:

• Ethernet Combo Ports: 1

Fiber:

• SFP Ports: 5

Peripherals:

• Serial Console Port: RJ45

Certification & Approvals:

• Certification: CE, EAC, ROHS
• IP Rating: IP20

Conclusion:

The MikroTik Cloud Router Switch 106-1C-5S offers a robust solution for network connectivity with its combination of Gigabit Ethernet/SFP ports and five 1.25Gbps SFP cages. Its compact size, combined with the power of RouterOS and support for Passive PoE, makes it an excellent choice for high-speed, flexible network setups in desktop environments.
