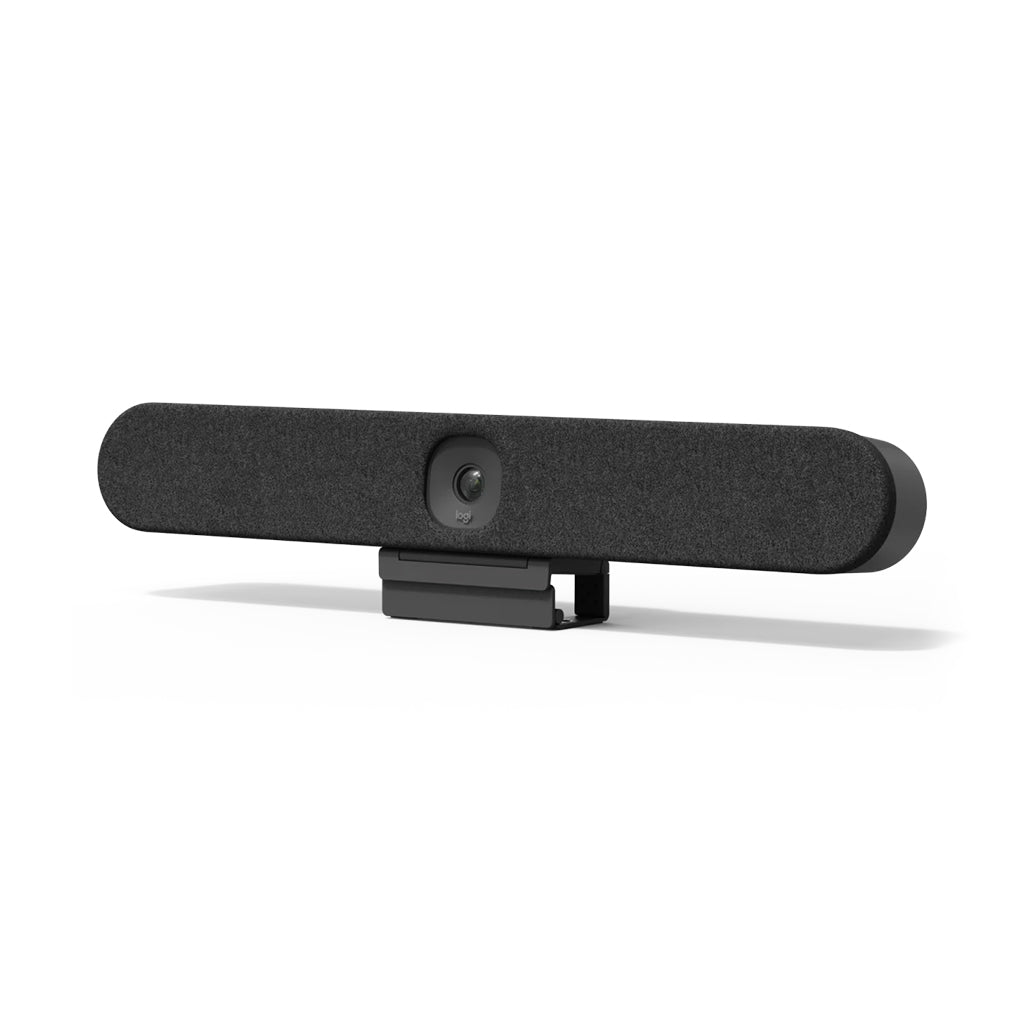

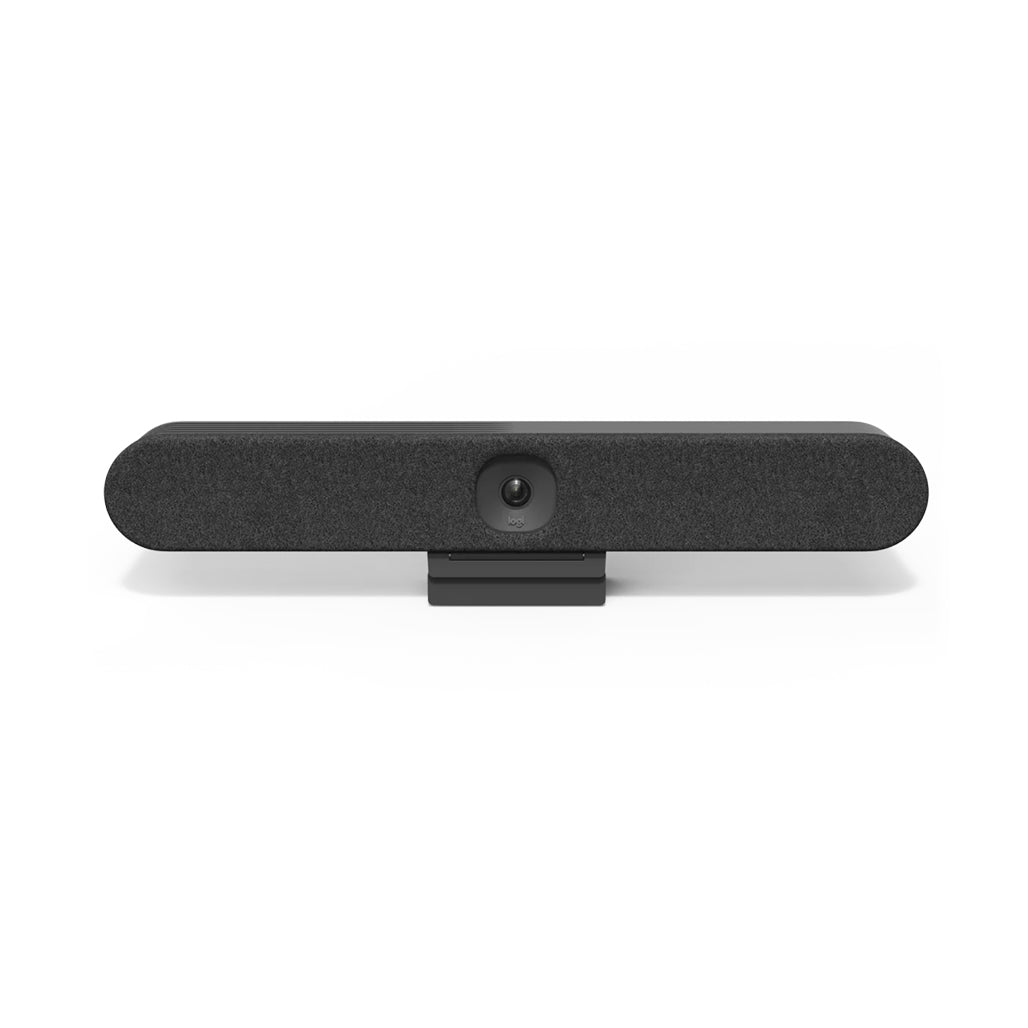

Logitech 960-001577 Rally Bar Huddle - Compact All-in-One Video Conferencing Solution

The Logitech Rally Bar Huddle is a sleek and efficient video conferencing system designed for small meeting spaces. This compact device combines advanced technology with user-friendly features to ensure seamless virtual meetings. The Rally Bar Huddle's streamlined design complements any environment while delivering high-quality video and audio performance, making it an ideal choice for small offices, huddle rooms, and collaborative spaces.

Equipped with AI-driven video intelligence, the Rally Bar Huddle offers a clear and natural meeting experience. It features advanced sound pickup capabilities, noise suppression, and ongoing software enhancements to ensure that every participant is seen and heard with exceptional clarity. The device can be set up in minutes and offers multiple deployment options, including use as a standalone appliance, USB mode connected to a meeting room PC, or via laptop connection. The Rally Bar Huddle's adaptability to various configurations makes it a versatile addition to any meeting space.

Key Features

• AI-Powered Video Intelligence: Delivers clear and natural video and audio with advanced sound pickup and noise suppression technologies.
• Flexible Deployment Options: Can be used as a standalone appliance, connected via USB to a meeting room PC, or through a laptop.
• Quick Setup: Designed for easy installation and integration with Logitech Tap IP through CollabOS.
• Sustainable Design: Constructed with 42% post-consumer recycled plastic, reducing environmental impact.
• Effortless Management: Managed through Logitech Sync for monitoring room health, deploying updates, and adjusting settings from a cloud-based platform.
• Customizable Appearance: Features interchangeable covers, including a cleanable option and an off-white fabric cover, to match different environments.
• Business Continuity with Select Service Plan: Provides expert assistance, fast product replacements, and premium Sync functionality for optimized performance.

Specifications

• Dimensions:

  • Width: 549.6 mm
  • Height: 78.9 mm
  • Depth: 76.0 mm
  • Weight: 1.8 kg

• Compatibility:

  • Internet Connection: Wired or wireless
  • USB Mode: Windows 11, Windows 10, macOS (two most recent versions)
  • Appliance Mode: Room solution software license (not included)

• Technical Specifications:

  • Certifications and Compatibility: For the latest information, visit www.logitech.com/support/vc-certifications.
  • Built-in Components: 6 DMIC microphone array, digital PTZ camera, 1 full range ported speaker, cable management & retention system, Multi Mount, integrated motorized privacy shutter, Logitech Collab OS platform.
  • Enclosure: All-in-one enclosure with field replaceable front cover.
  • Device Management: Logitech Sync.
  • Displays Supported: 1 (2nd display support is coming soon).
  • Display Resolution: 1080p.
  • Network Protocol Support: IPv4, IPv6.
  • Proxy Support: IP-based Proxy, FQDN-based Proxy, Proxy using PAC file.
  • Camera:
    • Digital Pan: ±48° at 4x zoom
    • Digital Tilt: ±32° at 4x zoom
    • Zoom: 4X HD digital zoom
    • Diagonal Field of View: 120°
    • Horizontal Field of View: 113°
    • Vertical Field of View: 80°
    • Resolution: 4K.
  • Speakers:
    • Driver: 55 mm with bass reflex enclosure and patented suspension design.
    • Sensitivity: 83 dB SPL @1W +/-2dB @ 1 meter.
    • Rated Power: 8W.
    • THD at 1W, 1kHz: <2%.
    • Speaker Sampling Rate: 48KHz.
    • Impedance: 4 Ohms.
  • Microphones:
    • Frequency Response: 90Hz – 16kHz.
    • Sensitivity: -36dBFS +/-1 dB @ 1Pa.
    • Microphone Data Rate Output: 48 kHz.
    • Pickup Range: Up to 7m.
    • Beamforming Elements: Six omnidirectional digital MEMS microphones forming five adaptive acoustic broadside beams.
    • Audio Processing: AEC (Acoustic Echo Cancellation), VAD (Voice Activity Detector).
    • Noise Suppression: AI-based de-noising algorithm.
  • Interfaces:
    • HDMI Out: 1
    • HDMI In: 1
    • USB: 1x Type A USB 3.1, 1x Type C USB 3.1
    • Network: 10/100/1G Ethernet
    • WiFi: 802.11a/b/g/n/ac
    • Bluetooth: Bluetooth® Low Energy.
  • Power and Cables:
    • Power Supply: Auto-sensing.
    • Operating Voltage/Power: 100-240V, 19V, 2.1A.
    • Power Supply Dimensions: 114 mm x 47 mm x 32.3 mm.
    • DC Cable: 1.5 m.
    • AC Cable: 1 m.
    • HDMI 1.4 Cable: 2 m.
    • USB A to USB C 3.0 Cable: 2.2 m.
  • Environmental:
    • Operating Temperature: 0 to 40°C.
    • Storage Temperature: -25 to 70°C.
    • Humidity: 10 to 90%.
  • Security:
    • File Based Encryption: AES-128.
    • Data Encryption: Symmetric Keys, PKI.
    • Device Identity: Protected by device attestation.
    • Device Access: Authenticated using API.
    • Key Protection: Arm TrustZone, RPMP.
  • Accessories:
    • Covers: Rally Bar Huddle Front Cover-Cleanable, Off-White Fabric.
    • Mounts: Wall Mount for Video Bars, TV Mount for Video Bars.
    • Touch Controller: Logitech Tap (coming soon) and Tap IP.

Conclusion

The Logitech Rally Bar Huddle stands out as an effective and elegant solution for small meeting spaces, combining advanced video and audio technology with ease of use and sustainability. Its compact design and versatile deployment options ensure it meets the needs of various collaborative environments while minimizing environmental impact. Whether used as a standalone unit or part of a larger room solution, the Rally Bar Huddle offers a reliable and high-performance experience for modern virtual meetings.
