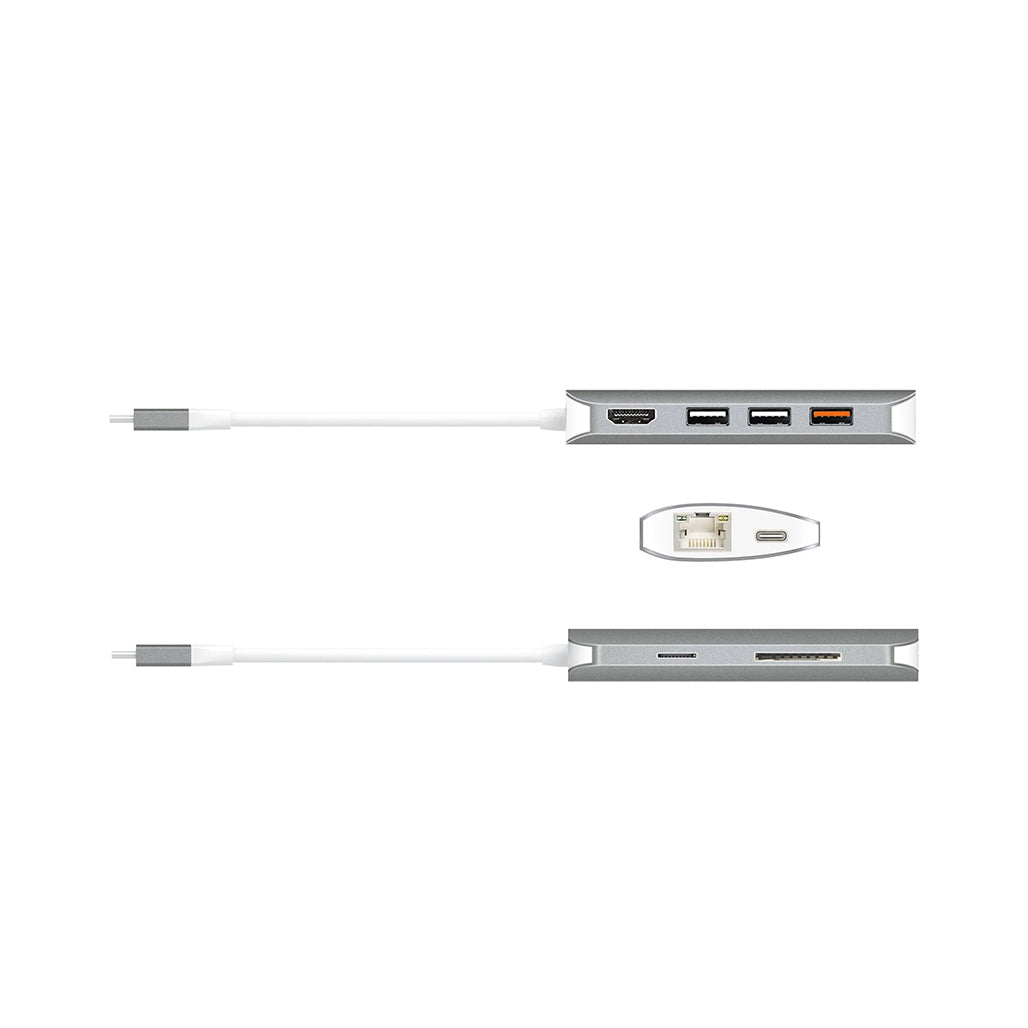

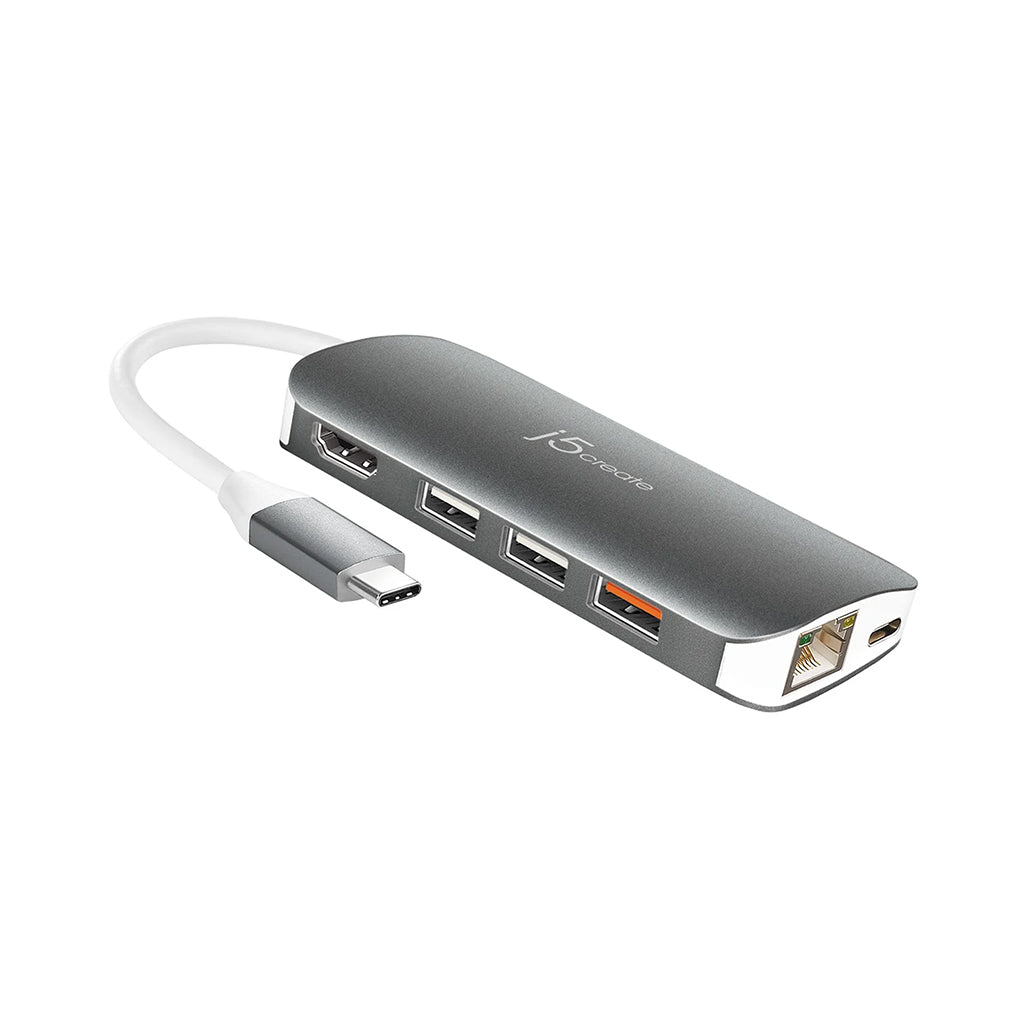

J5 Create USB-C Multi Adapter JCD383 - 9-in-1 Portable Hub with 4K HDMI, Power Delivery, and Gigabit Ethernet

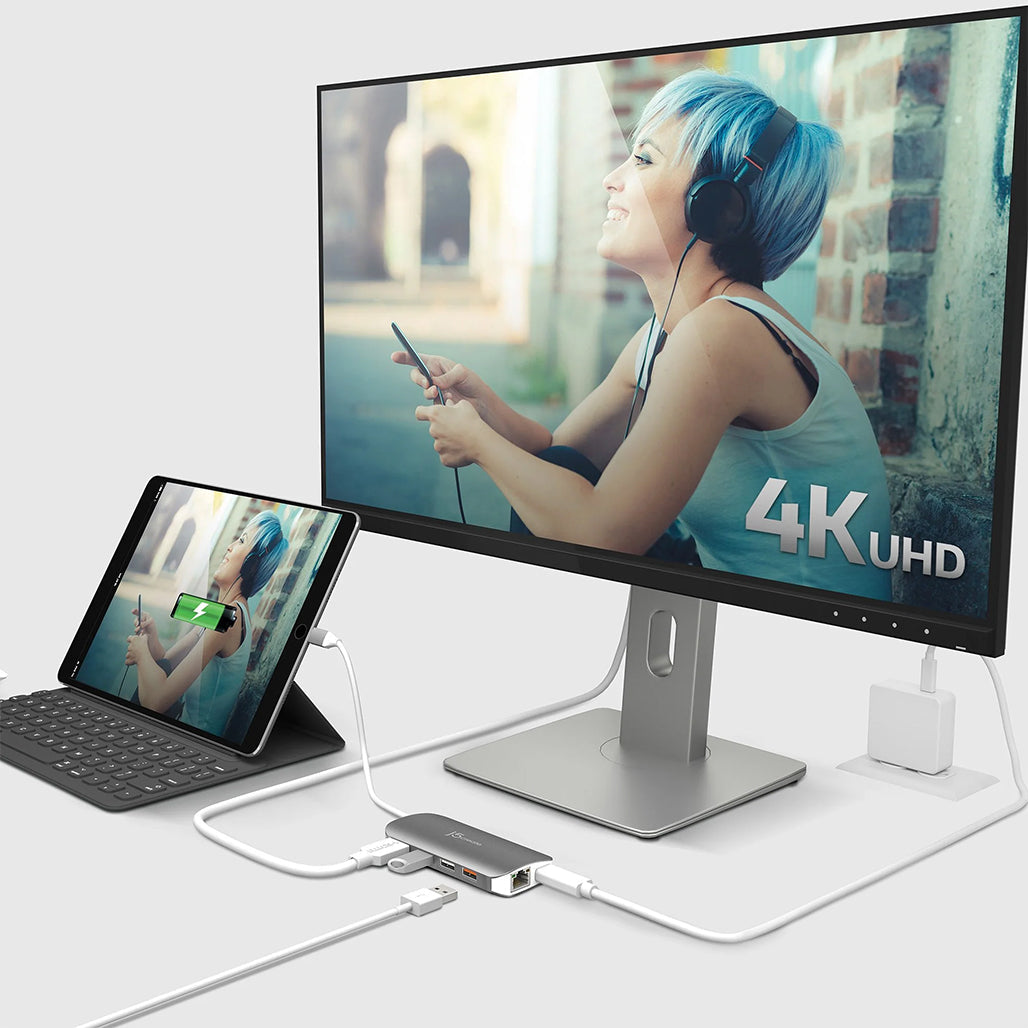

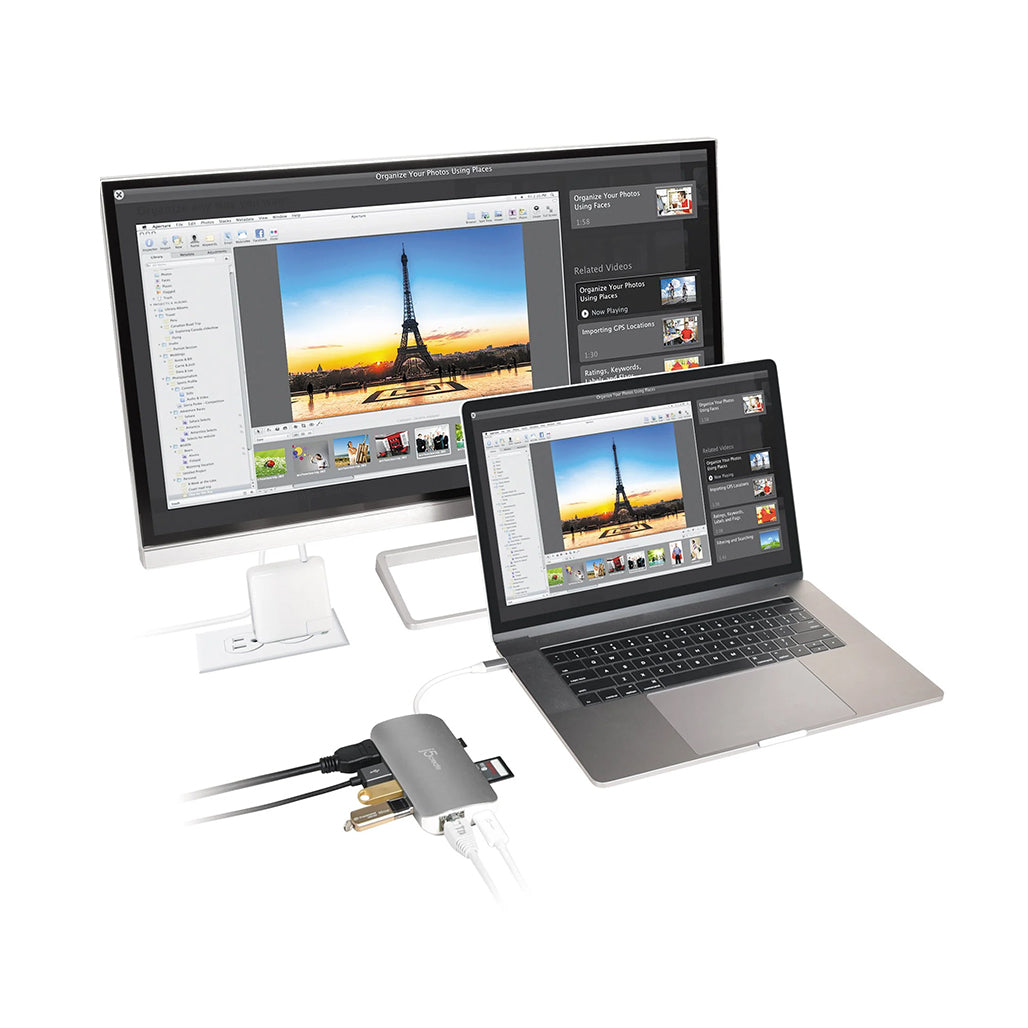

The J5 Create USB-C Multi Adapter JCD383 is your all-in-one solution for expanding the connectivity of your USB-C enabled device. With nine essential functions packed into a pocket-sized adapter, this device maximizes your productivity whether you are at home, in the office, or on the go. The JCD383 allows you to seamlessly connect to a 4K HDMI monitor, providing ultra-high-definition video output. Additionally, it supports connection to ultrawide monitors, making it ideal for both professional and entertainment purposes.

This versatile adapter includes two USB Type-A ports for peripherals, a fast-charging USB Type-A port with BC 1.2, and a Gigabit Ethernet port for reliable wired internet access. The built-in SD and microSD card readers enable quick and easy data transfer. Power Delivery 3.0 ensures that your connected devices remain charged while in use, providing both upstream and downstream charging capabilities when connected to a USB-C power adapter. Compact and lightweight, the JCD383 is the perfect companion for small workspaces, home offices, and mobile professionals.

Key Features:

• 9-in-1 Multi-Adapter: Combines nine functions in one compact device, including HDMI output, USB ports, and Ethernet connectivity.
• Power Delivery 3.0: Provides efficient charging for connected devices and supports data transfer through USB-C.
• 4K Ultra HD Support: Delivers a maximum resolution of 3840 x 2160 at 30Hz, perfect for high-definition displays.
• USB Fast Charging: Features a USB Type-A port with BC 1.2 for quick charging of mobile devices.
• Gigabit Ethernet: Ensures a stable and fast network connection through the RJ45 port.

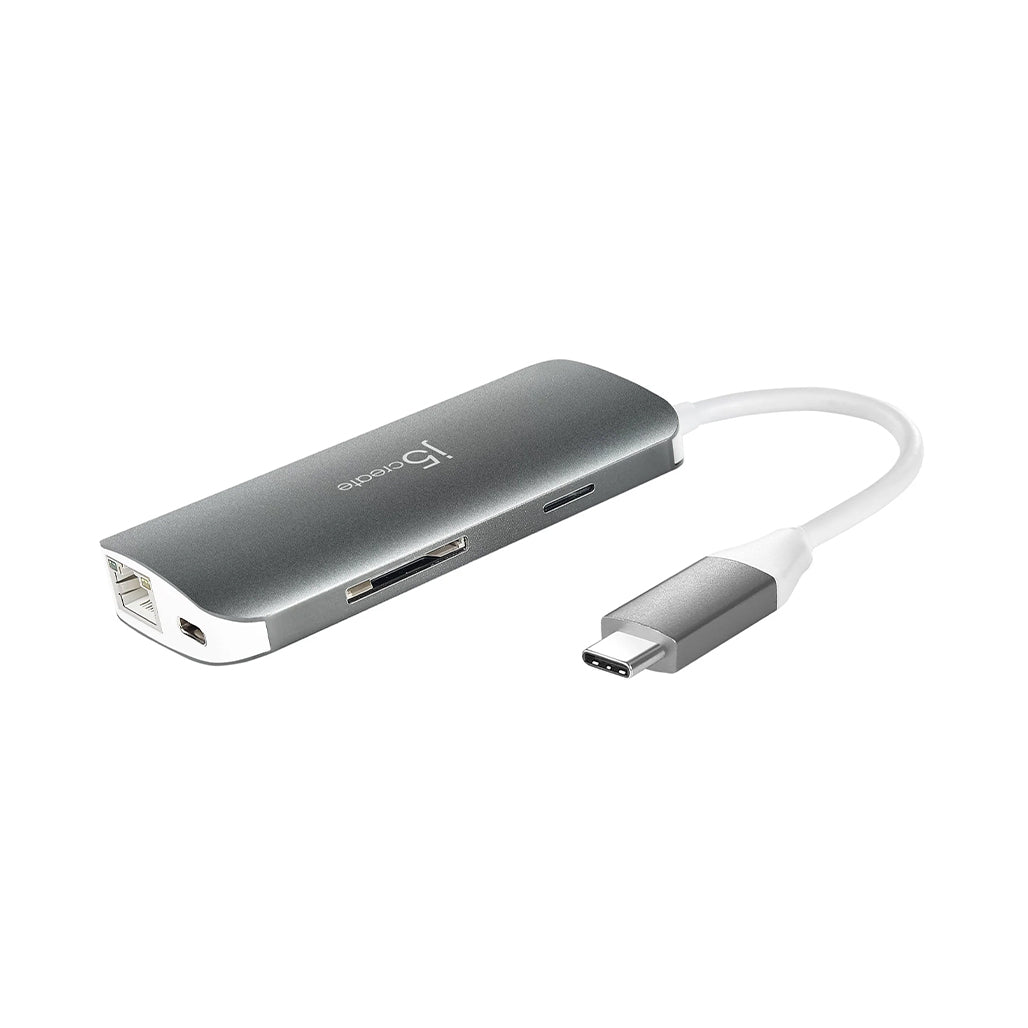

• Memory Card Reader: Provides easy access to SD and microSD memory cards with a secure spring push design.

Specifications (Rewritten):

• Audio Supported: Yes
• Host Connector: 1 - USB-C™ Male
• Network Interface: RJ45 (Gigabit Ethernet)

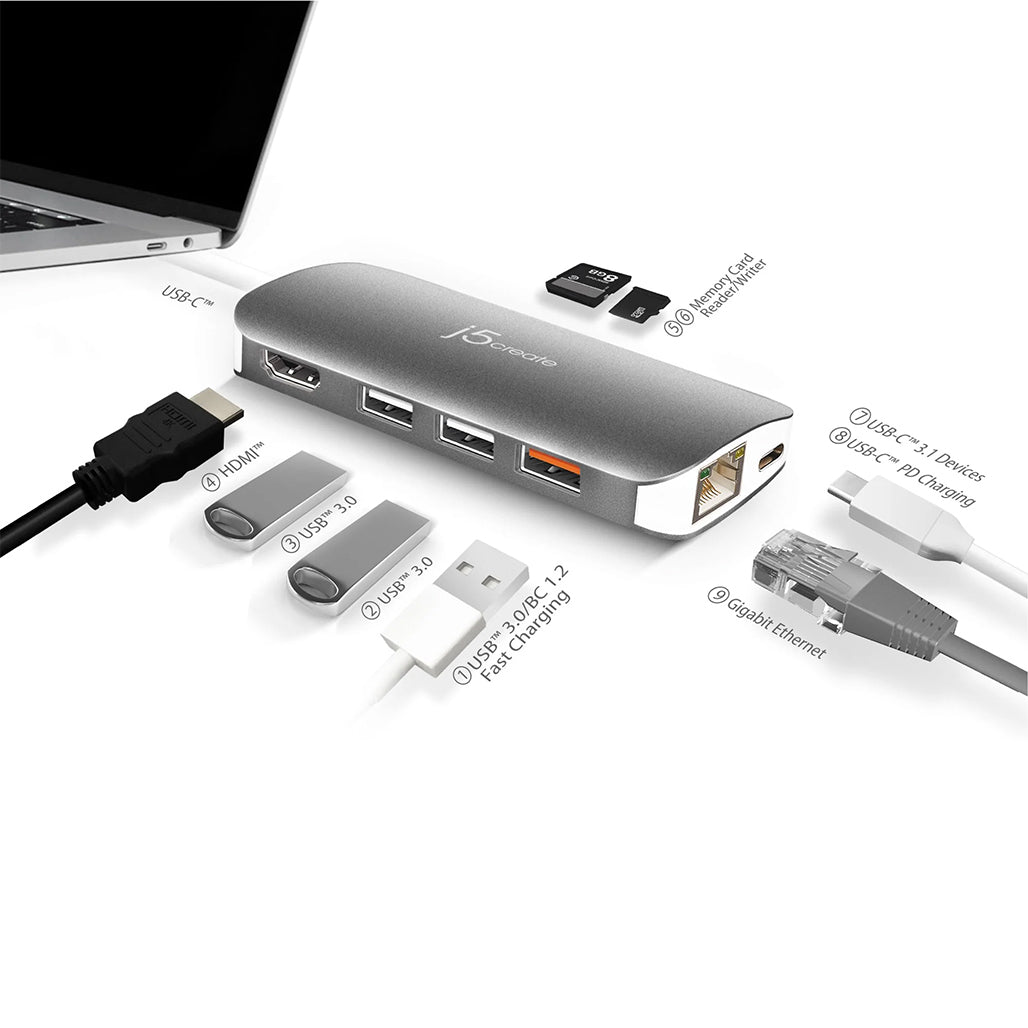

Ports:

• 1 - USB-C™ 3.0 (upstream & downstream charging, power delivery 3.0, and data transfer)

• 2 - USB™ Type-A 3.1 Gen 1

• 1 - USB™ Type-A 3.1 Gen 1 with BC 1.2

• 1 - SD™ & microSD™

• 1 - 4K HDMI™

• 1 - RJ45 Gigabit Ethernet

• Power Source: Can be bus-powered or self-powered

• Video Output: 1 - HDMI™ Female

Performance:

• Audio Channel: 2.1 via HDMI™
• Compatible Networks: 10/100/1000 Base-T, auto-negotiating
• Displays Supported: 1
• Max Data Transfer Rate: 5 Gbps
• Max Display Refresh Rate: 30 Hz
• Max Display Resolution: 3840 x 2160

Power Specifications:

• Input Current: Up to 5A
• Input Voltage: Up to 20V
• Output Current: Up to 4.25A
• Output Voltage: Up to 20V
• Power Consumption: ≤ 500 mA
• Power Delivery: 100W

Physical Specifications:

• Cable Length: 5.4 in. (137 mm)
• Color: Silver
• Enclosure Type: Aluminum
• Operating Humidity: < 85% non-condensing
• Operating Temperature: 32 to 118°F (0 to 48°C)
• Product Depth: 0.65 in. (16.5 mm)
• Product Height: 4.13 in. (105 mm)
• Product Weight: 2.75 oz (78g)
• Product Width: 1.97 in. (50 mm)
• Storage Humidity: < 85% non-condensing
• Storage Temperature: 14 to 149°F (-10 to 65°C)

Package Contents:

• 1 - JCD383 USB-C™ 9-in-1 Multi Adapter
• 1 - Quick Installation Guide

Conclusion:

The J5 Create USB-C Multi Adapter JCD383 offers a compact, comprehensive solution for extending your device’s connectivity. With its nine versatile functions, including 4K HDMI output, USB fast charging, and Gigabit Ethernet, this adapter is perfect for enhancing productivity in any setting. Its portable design ensures that all your essential peripherals and connections are within easy reach, making it a reliable companion for both work and travel.
