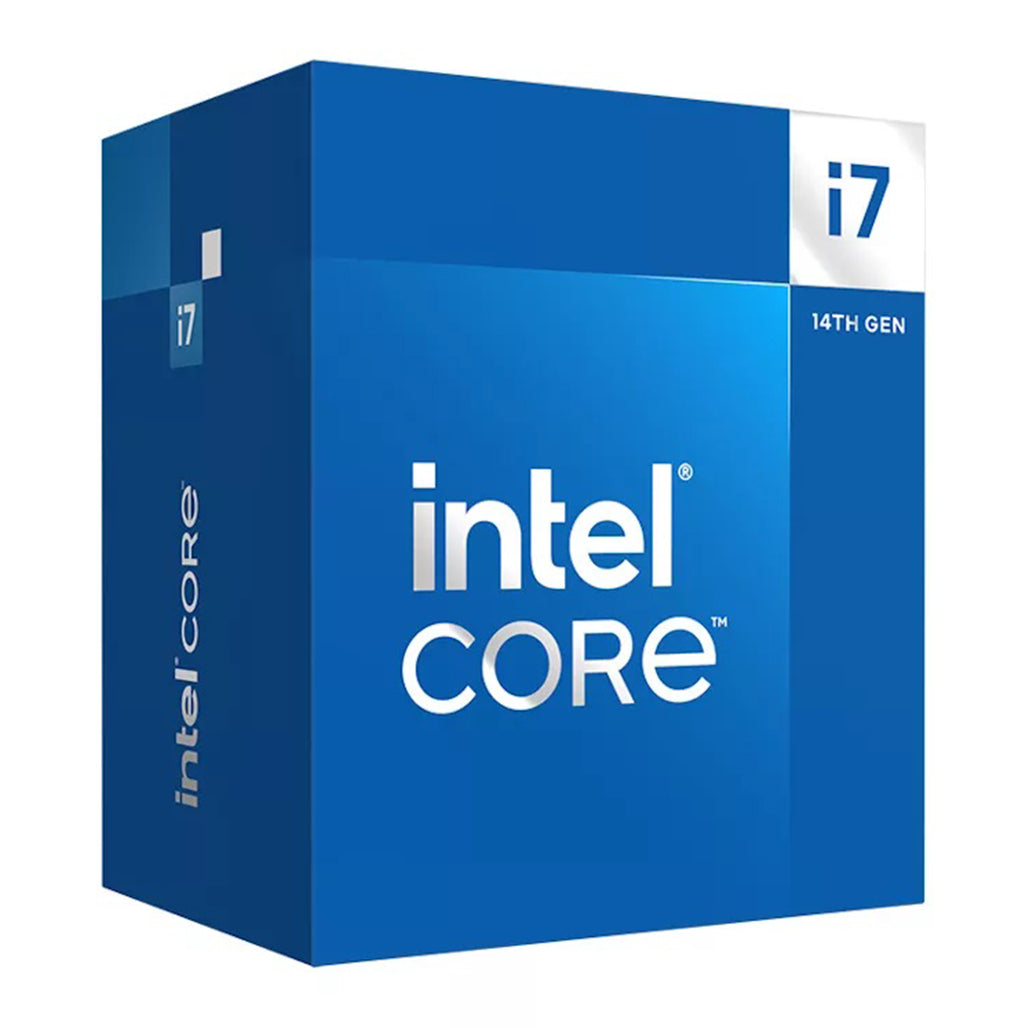

Intel Core i7 14700K Tray

CPU Specifications

Cores & Threads

• Total Cores: 20
  • Performance Cores: 8
  • Efficient Cores: 12
• Total Threads: 28

Frequencies

• Max Turbo Frequency: 5.6 GHz
• Intel® Turbo Boost Max Technology 3.0 Frequency: 5.6 GHz
• Performance-core Max Turbo Frequency: 5.5 GHz
• Efficient-core Max Turbo Frequency: 4.3 GHz
• Performance-core Base Frequency: 3.4 GHz
• Efficient-core Base Frequency: 2.5 GHz

Cache

• Intel® Smart Cache: 33 MB
• Total L2 Cache: 28 MB

Power

• Processor Base Power: 125 W
• Maximum Turbo Power: 253 W

Supplemental Information

• Marketing Status: Launched
• Launch Date: Q4'23
• Embedded Options Available: No
• Use Conditions: PC/Client/Tablet, Workstation

Memory Specifications

• Max Memory Size: 192 GB (dependent on memory type)
• Memory Types:
  • DDR5 up to 5600 MT/s
  • DDR4 up to 3200 MT/s
• Max # of Memory Channels: 2
• Max Memory Bandwidth: 89.6 GB/s
• ECC Memory Supported: Yes

GPU Specifications

• GPU Name: Intel® UHD Graphics 770
• Graphics Base Frequency: 300 MHz
• Graphics Max Dynamic Frequency: 1.6 GHz
• Graphics Output: eDP 1.4b, DP 1.4a, HDMI 2.1
• Execution Units: 32
• Max Resolution (HDMI): 4096 x 2160 @ 60Hz
• Max Resolution (DP): 7680 x 4320 @ 60Hz
• Max Resolution (eDP - Integrated Flat Panel): 5120 x 3200 @ 120Hz
• DirectX Support: 12
• OpenGL Support: 4.5
• OpenCL Support: 3.0
• Multi-Format Codec Engines: 2
• Intel® Quick Sync Video: Yes
• Intel® Clear Video HD Technology: Yes
• # of Displays Supported: 4
• Device ID: 0xA780

Expansion Options

• Direct Media Interface (DMI) Revision: 4.0
• Max # of DMI Lanes: 8
• Scalability: 1S Only
• PCI Express Revision: 5.0 and 4.0
• PCI Express Configurations: Up to 1x16+4, 2x8+4
• Max # of PCI Express Lanes: 20

Package Specifications

• Sockets Supported: FCLGA1700
• Max CPU Configuration: 1
• Thermal Solution Specification: PCG 2020A
• TJUNCTION (Max Operating Temperature): 100°C
• Package Size: 45.0 mm x 37.5 mm

Advanced Technologies

• Intel® Volume Management Device (VMD): Yes
• Intel® Gaussian & Neural Accelerator: 3.0
• Intel® Thread Director: Yes
• Intel® Deep Learning Boost (Intel® DL Boost) on CPU: Yes
• Intel® Speed Shift Technology: Yes
• Intel® Turbo Boost Max Technology 3.0: Yes
• Intel® Turbo Boost Technology: 2.0
• Intel® Hyper-Threading Technology: Yes
• Intel® 64: Yes
• Instruction Set: 64-bit
• Instruction Set Extensions: Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
• Idle States: Yes
• Enhanced Intel SpeedStep® Technology: Yes
• Thermal Monitoring Technologies: Yes

Security & Reliability

• Intel vPro® Eligibility: Intel vPro® Enterprise, Intel vPro® Essentials, Intel vPro® Platform
• Intel® Threat Detection Technology (TDT): Yes
• Intel® Active Management Technology (AMT): Yes
• Intel® Standard Manageability (ISM): Yes
• Intel® Remote Platform Erase (RPE): Yes
• Intel® One-Click Recovery: Yes
• Intel® Hardware Shield Eligibility: Yes
• Intel® Control-Flow Enforcement Technology: Yes
• Intel® Total Memory Encryption - Multi Key: Yes
• Intel® AES New Instructions: Yes
• Secure Key: Yes
• Intel® OS Guard: Yes
• Intel® Trusted Execution Technology: Yes
• Execute Disable Bit: Yes
• Intel® Boot Guard: Yes
• Mode-based Execute Control (MBEC): Yes
• Intel® Stable IT Platform Program (SIPP): Yes
• Intel® Virtualization Technology with Redirect Protection (VT-rp): Yes
• Intel® Virtualization Technology (VT-x): Yes
• Intel® Virtualization Technology for Directed I/O (VT-d): Yes
• Intel® VT-x with Extended Page Tables (EPT): Yes
