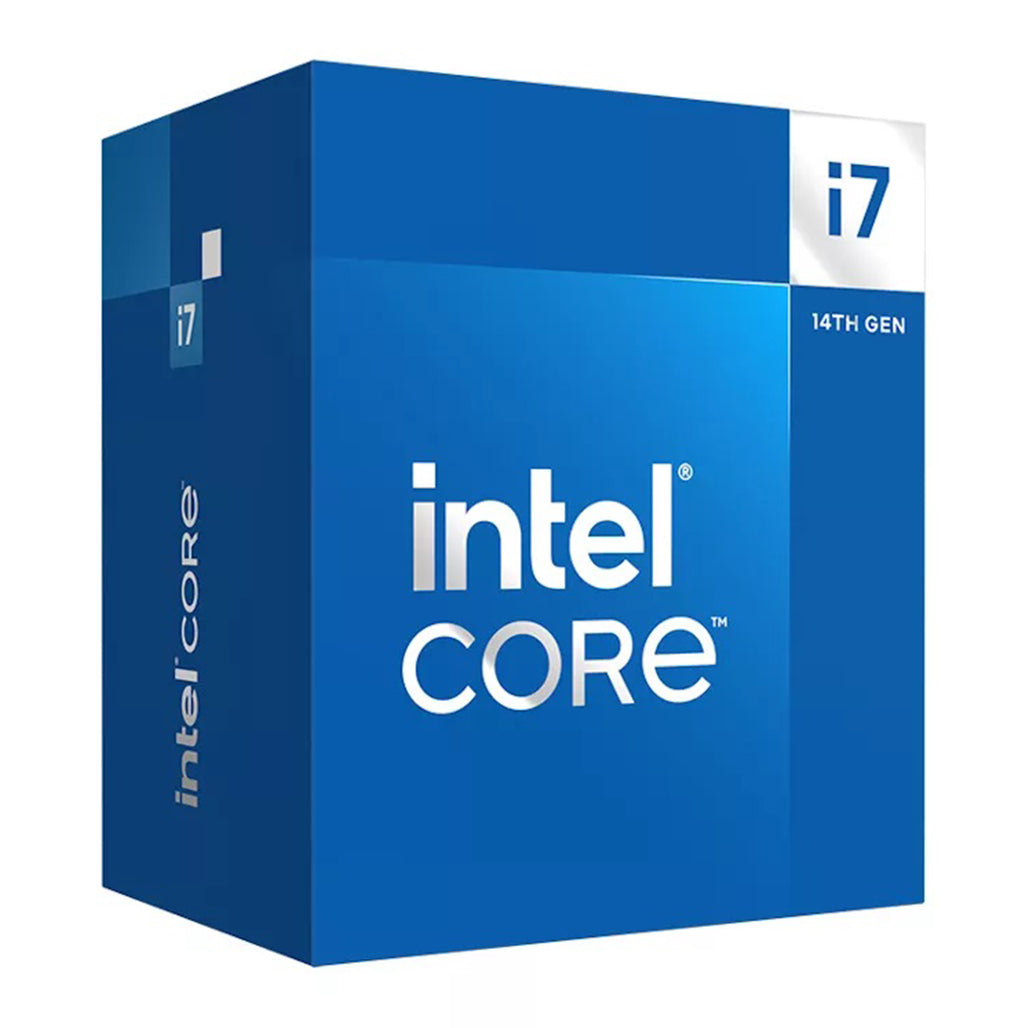

Intel Core i7 14700F Tray

CPU Specifications

Core Configuration

• Total Cores: 20
  • Performance Cores: 8
  • Efficient Cores: 12
• Total Threads: 28

Clock Speeds

• Max Turbo Frequency: 5.4 GHz
• Intel® Turbo Boost Max Technology 3.0 Frequency: 5.4 GHz
• Performance-core Max Turbo Frequency: 5.3 GHz
• Efficient-core Max Turbo Frequency: 4.2 GHz
• Performance-core Base Frequency: 2.1 GHz
• Efficient-core Base Frequency: 1.5 GHz

Cache Memory

• Intel® Smart Cache: 33 MB
• Total L2 Cache: 28 MB

Power Requirements

• Processor Base Power: 65 W
• Maximum Turbo Power: 219 W

Additional Information

• Marketing Status: Launched
• Launch Date: Q1 2024
• Embedded Options Available: No
• Use Conditions: PC/Client/Tablet

Memory Specifications

• Max Memory Size (dependent on memory type): 192 GB
• Supported Memory Types:
  • Up to DDR5 5600 MT/s
  • Up to DDR4 3200 MT/s
• Max Number of Memory Channels: 2
• Max Memory Bandwidth: 89.6 GB/s

Expansion Options

• Direct Media Interface (DMI) Revision: 4.0
• Max Number of DMI Lanes: 8
• Scalability: 1S Only
• PCI Express Revision: 5.0 and 4.0
• PCI Express Configurations: Up to 1x16+4, 2x8+4
• Max Number of PCI Express Lanes: 20

Package Specifications

• Sockets Supported: FCLGA1700
• Max CPU Configuration: 1
• Thermal Solution Specification: PCG 2020C
• TJUNCTION (Max Operating Temperature): 100°C
• Package Size: 45.0 mm x 37.5 mm

Advanced Technologies

• Intel® Gaussian & Neural Accelerator: 3.0
• Intel® Thread Director: Yes
• Intel® Deep Learning Boost (Intel® DL Boost) on CPU: Yes
• Intel® Speed Shift Technology: Yes
• Intel® Turbo Boost Max Technology 3.0: Yes
• Intel® Turbo Boost Technology: 2.0
• Intel® Hyper-Threading Technology: Yes
• Intel® 64: Yes
• Instruction Set: 64-bit
• Instruction Set Extensions: Intel® SSE4.1, SSE4.2, AVX2
• Idle States: Yes
• Enhanced Intel SpeedStep® Technology: Yes
• Thermal Monitoring Technologies: Yes
• Intel® Volume Management Device (VMD): Yes

Security & Reliability

• Intel® Standard Manageability (ISM): Yes
• Intel® Control-Flow Enforcement Technology: Yes
• Intel® AES New Instructions: Yes
• Secure Key: Yes
• Intel® OS Guard: Yes
• Execute Disable Bit: Yes
• Intel® Boot Guard: Yes
• Mode-based Execute Control (MBEC): Yes
• Intel® Virtualization Technology (VT-x): Yes
• Intel® Virtualization Technology for Directed I/O (VT-d): Yes
• Intel® VT-x with Extended Page Tables (EPT): Yes
