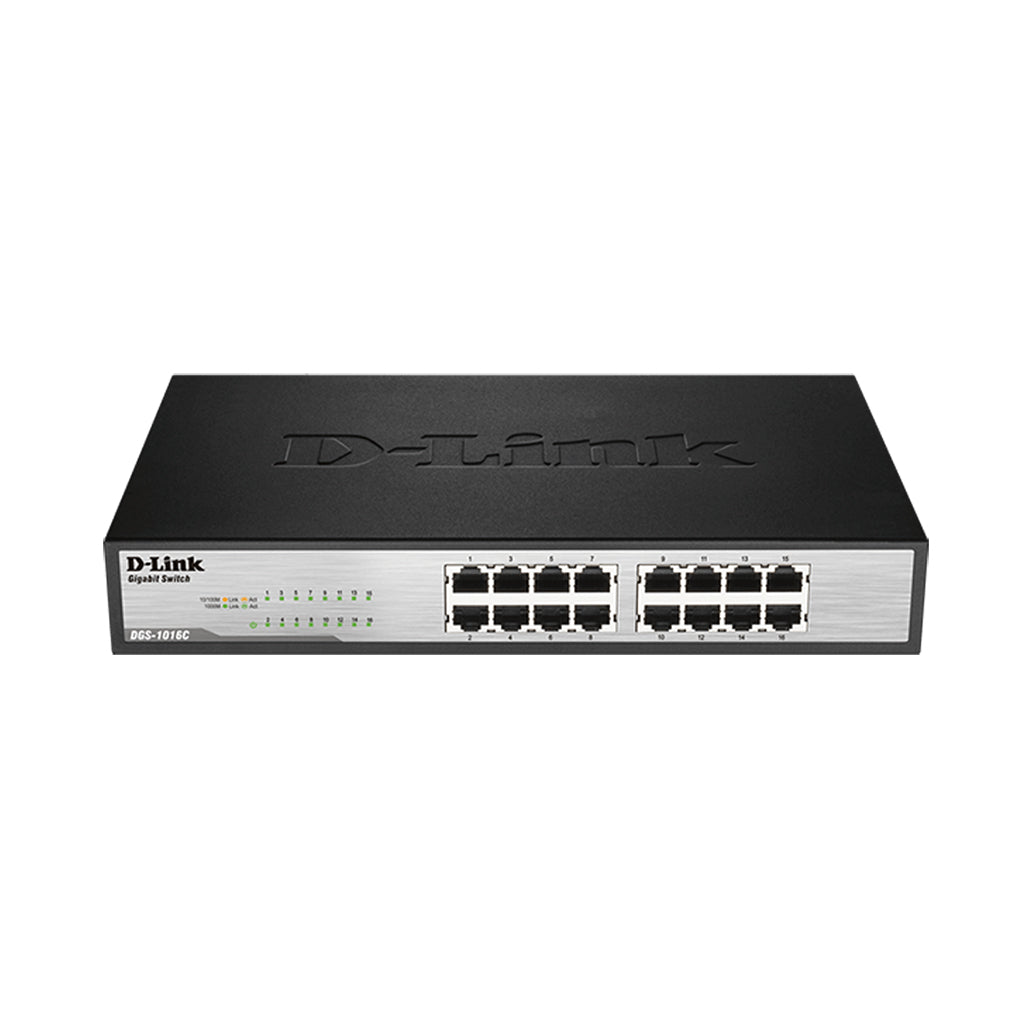

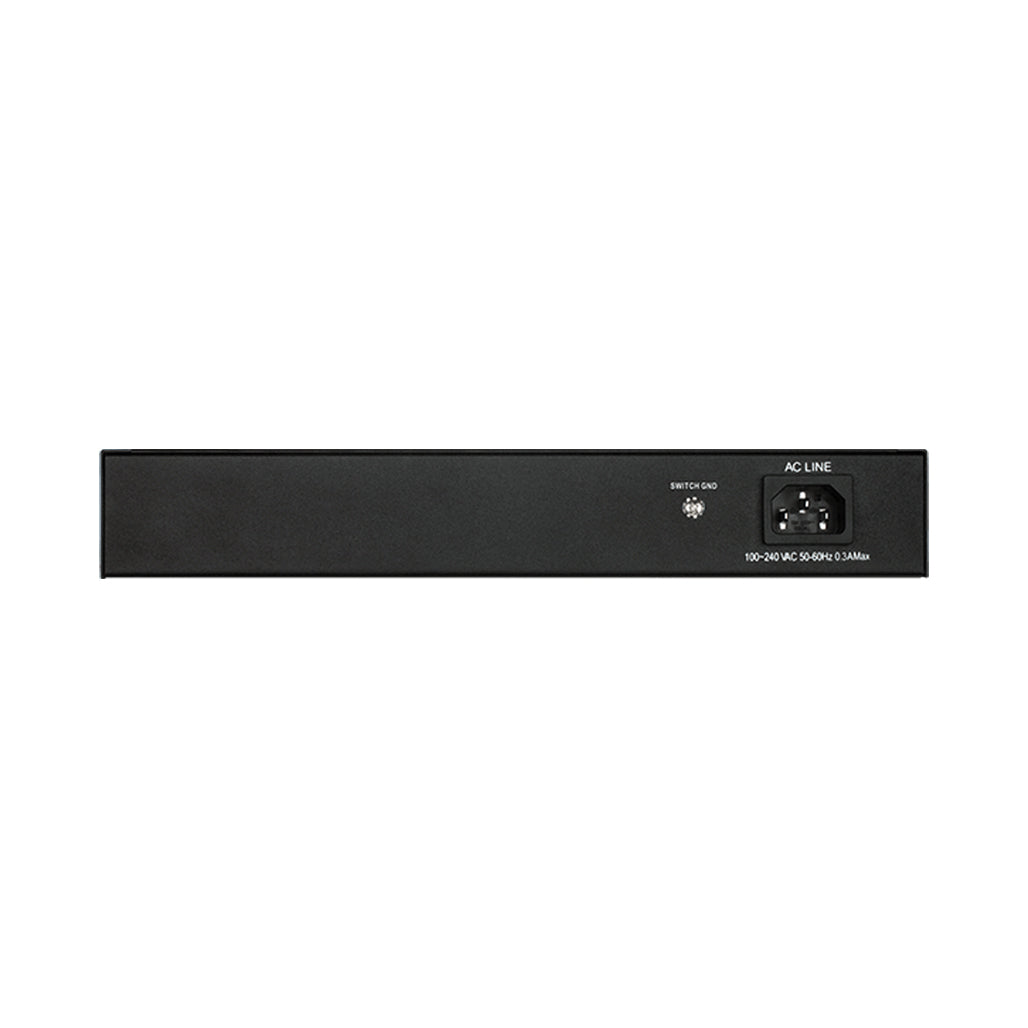

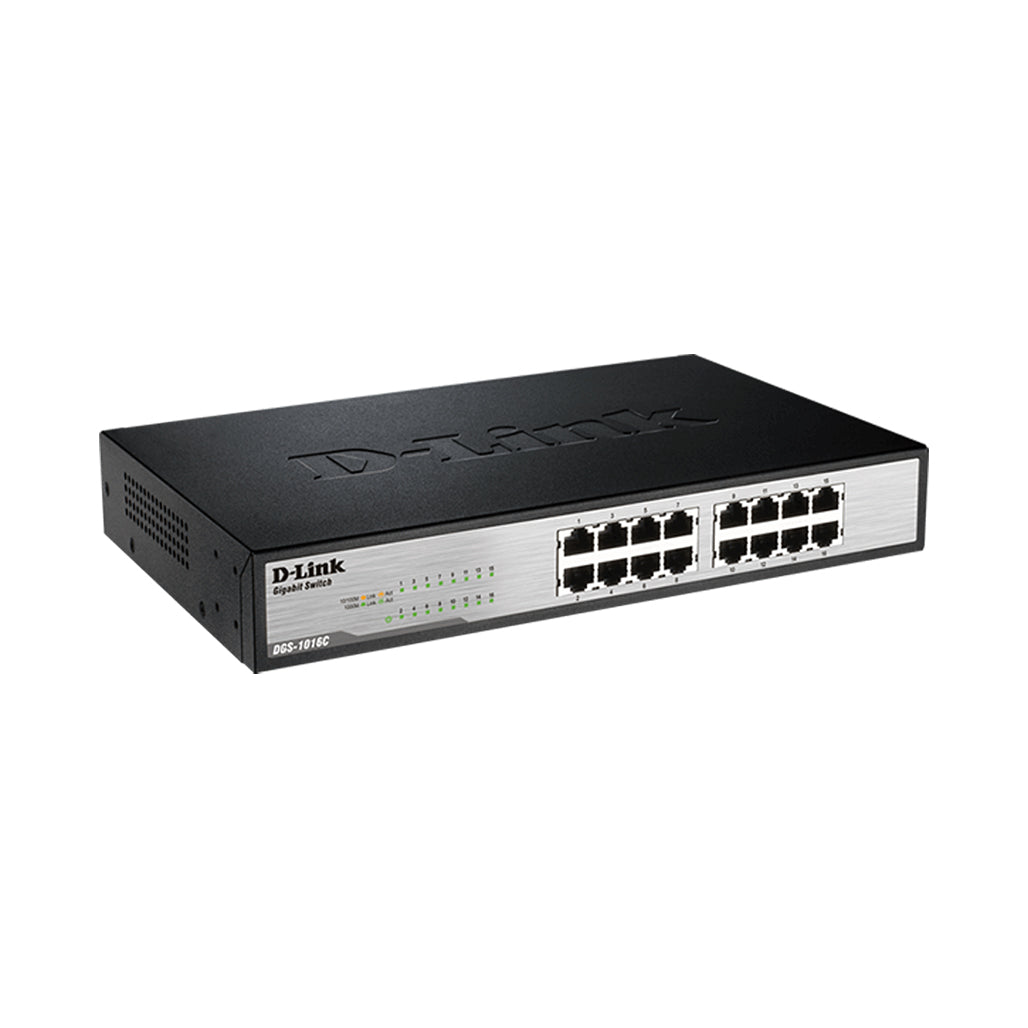

D-Link 16-Port Gigabit Unmanaged Switch - DGS-1016C

The D-Link DGS-1016C is a high-performance 16-port Gigabit unmanaged switch designed to provide reliable and efficient network connectivity. Featuring 16 Gigabit LAN ports, this switch facilitates fast and smooth data transfer at speeds up to 2000 Mbps in full duplex mode, making it ideal for quick file transfers, online gaming, and seamless media streaming. The switch is engineered for easy Plug-and-Play installation, allowing users to set up their network without any configuration hassles.

Equipped with advanced energy-saving features, the DGS-1016C is designed to optimize power consumption. It supports 802.3az Energy Efficient Ethernet (EEE), which automatically reduces power usage when network traffic is low or when devices are turned off. This switch also adjusts power usage based on the cable length, ensuring efficient operation and contributing to overall energy savings. The result is a more sustainable and cost-effective networking solution that maintains high performance while reducing energy costs.

Key Features:

• 16 Gigabit Ports: Provides high-speed connectivity for various network devices.
• Energy Efficiency: Implements 802.3az EEE to minimize power consumption and heat generation.
• Auto MDI/MDIX: Simplifies network setup with automatic crossover detection.
• QoS Support: Ensures optimal performance for streaming media and VoIP calls by prioritizing network traffic.
• Fanless Design: Operates silently, making it suitable for noise-sensitive environments.
• Plug-and-Play Installation: Offers hassle-free setup with no configuration required.
• Surge Protection: Each port features up to 4 kV surge protection to enhance network reliability.

Specifications:

• Interface: 1000Base-T
• Number of Ports: 16
• Switching Capacity: 32 Gbps
• Max. Packet Forwarding Rate: 23.808 Mpps
• Dimension: 282.2 x 178 x 44.5 mm (11.11 x 7.01 x 1.75 in)
• Weight: 1.06 kg
• Operating Temperature: 0 ~ 40°C
• Storage Temperature: -40 ~ 70°C
• Operating Humidity: 10% ~ 90% RH
• Storage Humidity: 5% ~ 95% RH
• Maximum Power Consumption: 9.3 watts
• Standby Power Consumption: 4.48 watts
• Maximum Heat Dissipation: 33.554 BTU/h
• Acoustic: 0 dB
• MTBF: 208,124 hours
• Power Input: AC 100V-240V
• Packet Buffer Size: 256KBytes
• Fan: Fanless
• Compliance: RoHS 6
• Energy Efficiency Ethernet (EEE): Yes
• Power Saving By Link Status: Yes
• Power Saving By Cable Length: Yes
• MAC Address Table Size: 8000
• 802.3x Flow Control: Yes
• Head-of-Line (HOL) Blocking Prevention: Yes
• Jumbo Frame: 9,216 Bytes

The D-Link DGS-1016C is a robust and efficient solution for network expansion, offering high-speed connectivity and energy-saving features that make it a valuable addition to any small office or home network. Its ease of use and advanced capabilities ensure reliable performance for various networking needs.
