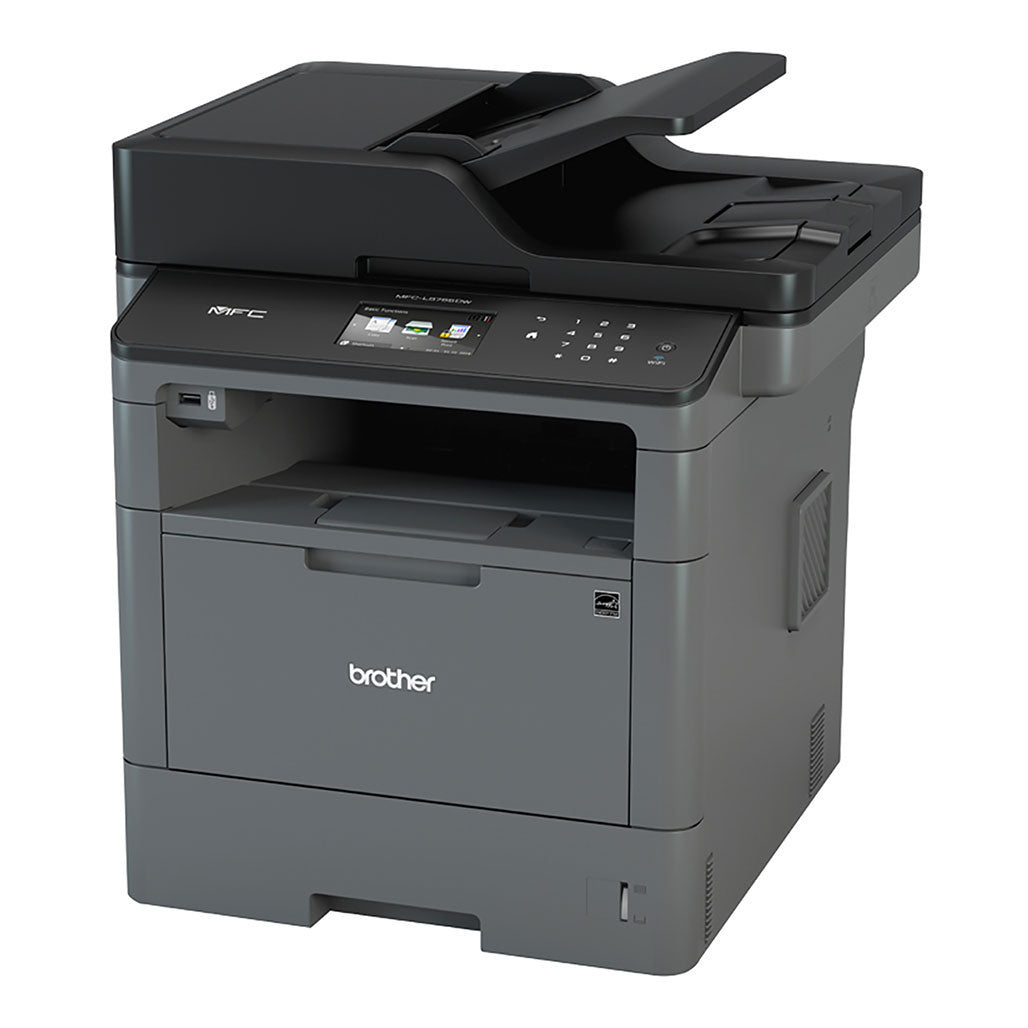

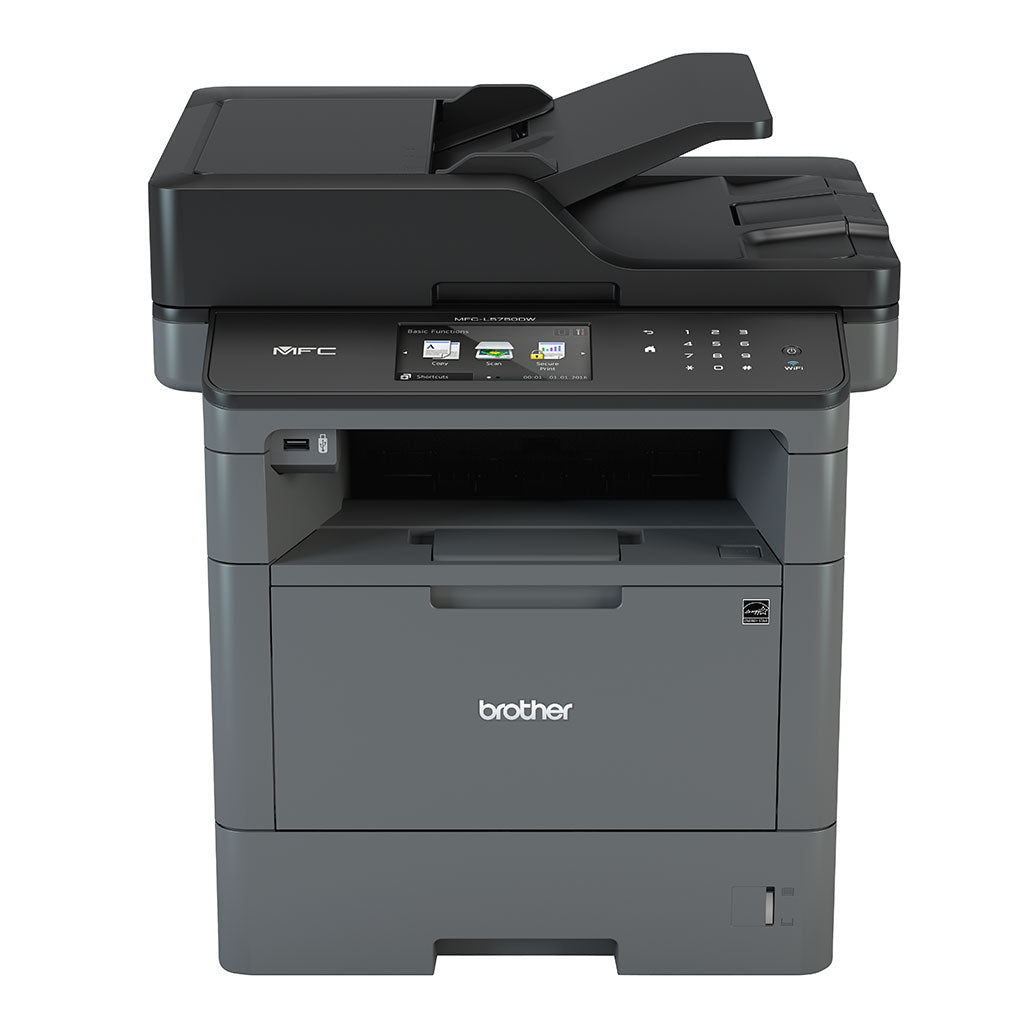

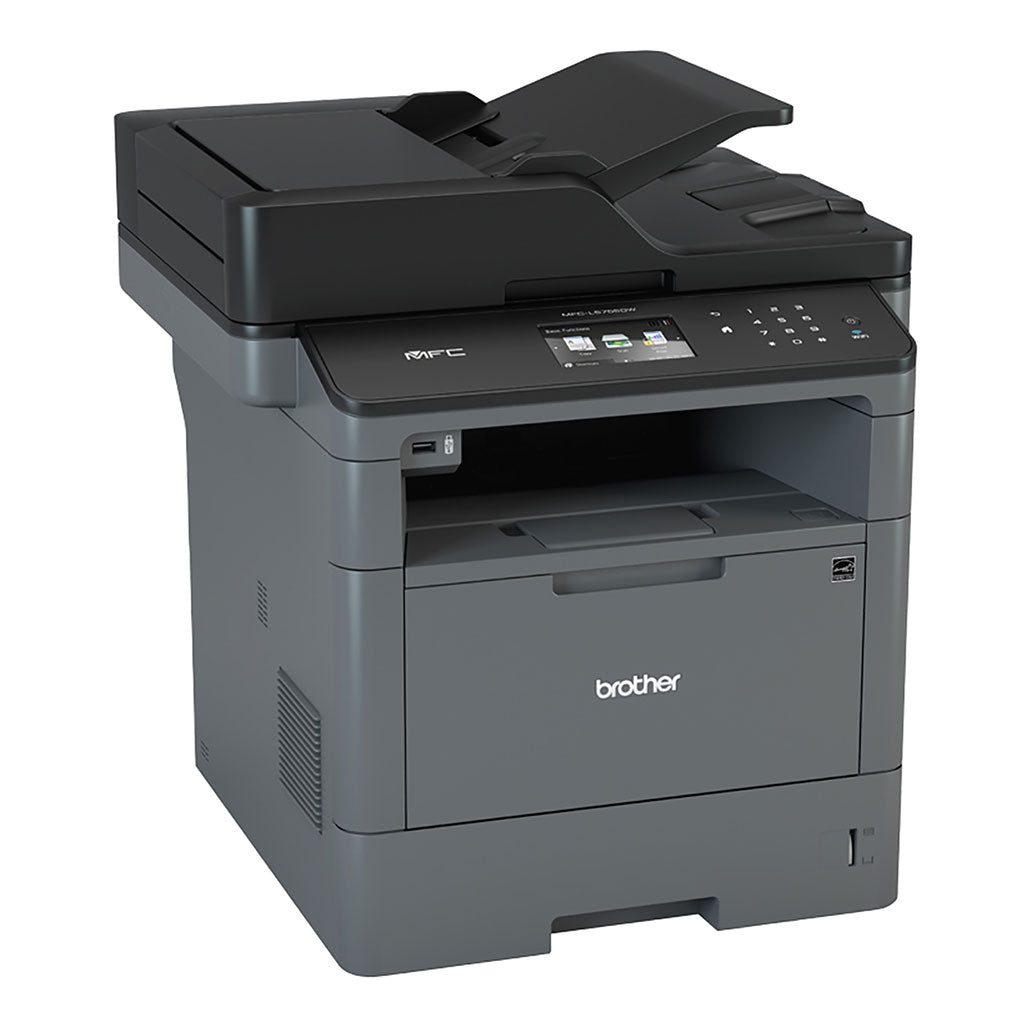

The Brother MFC-L5755DW is a versatile monochrome laser multi-function center designed for efficiency and cost-effectiveness in busy offices and workgroups. It combines high-speed printing, automatic duplexing, and robust paper handling to support a wide range of office tasks with minimal effort.
Key Features:
-
High-Speed Printing: Delivers fast print speeds of up to 40 pages per minute (ppm).
-
Large Paper Capacity: Standard paper tray holds 570 sheets, expandable up to 1,610 sheets.
-
High-Yield Toner: Comes with an 8,000-page toner and offers an optional ultra high-yield 12,000-page toner cartridge for reduced printing costs.
-
Automatic Duplex Printing: Enables automatic two-sided printing to save paper and reduce costs.
-
User-Friendly Interface: 9.3 cm color touchscreen LCD for easy navigation and operation.
-
Wireless Connectivity: Supports both standard and direct wireless connections.
Specifications:
-
Functions: Fax, Print, Scan, Copy
-
Printer Type: Laser
-
Dimensions (W x D x H): 435 mm x 427 mm x 486 mm
-
Weight: 16.9 kg
-
Print Speed: Up to 40 ppm
-
Print Resolution: Up to 1,200 x 1,200 dpi
-
Paper Types Supported: Plain Paper, Thin Paper, Thick Paper, Recycled Paper
-
Paper Sizes Supported: A4, Letter, B5 (JIS), A5, A5 (Long Edge), A6, Executive, Legal, Folio, Mexico Legal, India Legal
-
Maximum Paper Capacity: Up to 1,610 sheets (with optional trays)
Print Media Handling:
-
Tray #1: Up to 250 sheets (80 gsm plain paper)
-
Multi-Purpose Tray: Up to 50 sheets (plain paper) / 10 sheets (envelopes)
-
ADF (Automatic Document Feeder): Up to 50 sheets
-
Paper Output: Up to 150 sheets (face-down) and 1 sheet (face-up, straight paper path)
Copy Specifications:
-
Monochrome: Yes
-
Enlarge/Reduce: 25% to 400% (in 1% increments)
-
Resolution: Up to 1,200 x 600 dpi
Scan Specifications:
-
Resolution (Interpolated): Up to 19,200 x 19,200 dpi
-
Resolution (Scanner Glass): Up to 1,200 x 1,200 dpi
-
Resolution (ADF): Up to 600 x 600 dpi
-
Color Depth (Input): 48-bit color processing
-
Color Depth (Output): 24-bit color processing
-
Grayscale Depth (Input): 16-bit color processing
-
Grayscale Depth (Output): 8-bit color processing
Fax Specifications:
-
Compatibility: Super G3
-
Modem Speed: 33,600 bps
-
Scanning Width (Single-Sided Document): Up to 208 mm
-
Groups: Up to 20 groups
-
Speed Dial: 300 locations
-
Automatic Redial: Yes
-
Out of Paper Reception: Up to 500 pages
Connectivity:
-
USB: Hi-Speed 2.0
-
LAN: 10Base-T/100Base-TX Ethernet
-
Wireless LAN: IEEE 802.11b/g/n (Infrastructure/Ad-hoc Mode), IEEE 802.11g/n (Wi-Fi Direct™)
Display & Memory:
-
Display Type: 3.7" (9.3 cm) TFT Color Touchscreen LCD
-
Memory Capacity: 512 MB
Operation:
-
Power Source: 220V to 240V AC 50/60 Hz
-
Power Consumption:
-
Printing: Approximately 645 W
-
Ready Mode: Approximately 34 W
-
Sleep Mode: Approximately 7.5 W
-
Power Off Mode: Approximately 0.04 W
-
Noise Level: Approximately 54 dB(A)
-
Operating Temperature: 10 to 32 °C
Network Security:
-
Wireless Security: WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (AES)
Supported Operating Systems:
-
Windows: XP Home Edition, XP Professional Edition, XP Professional x64 Edition, Server 2003, Server 2003 x64 Edition, Vista, Server 2008, Server 2008 R2, 7, 8, 8.1, 10, Server 2012, Server 2012 R2
-
Mac OS: X v10.8.5, 10.9.x, 10.10.x (Download only)
-
Linux: CUPS, LPD/LPRng (x86/x64 environment)
The Brother MFC-L5755DW offers high-speed monochrome printing and versatile functionality in a robust, cost-effective package. With its large paper capacity, high-yield toner options, and advanced features like automatic duplex printing and wireless connectivity, it's well-suited for high-demand office environments.
