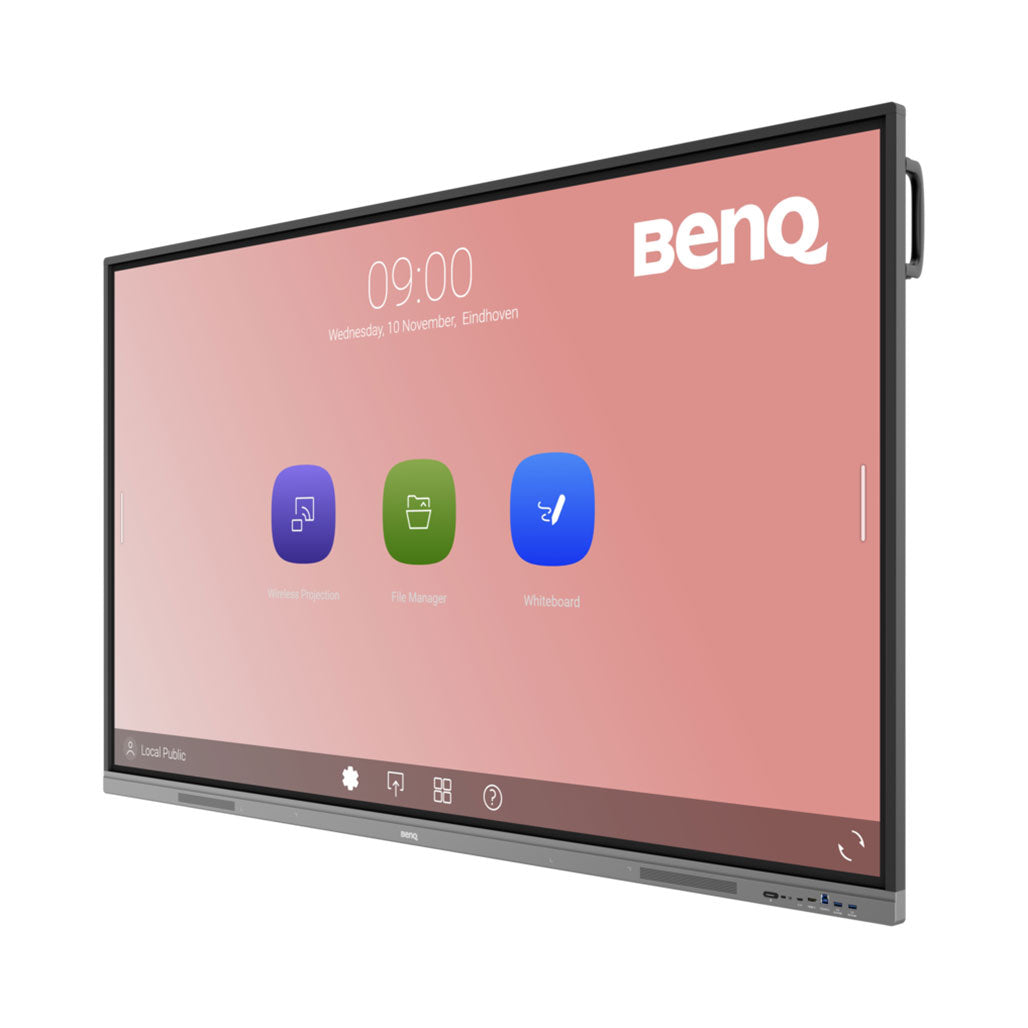

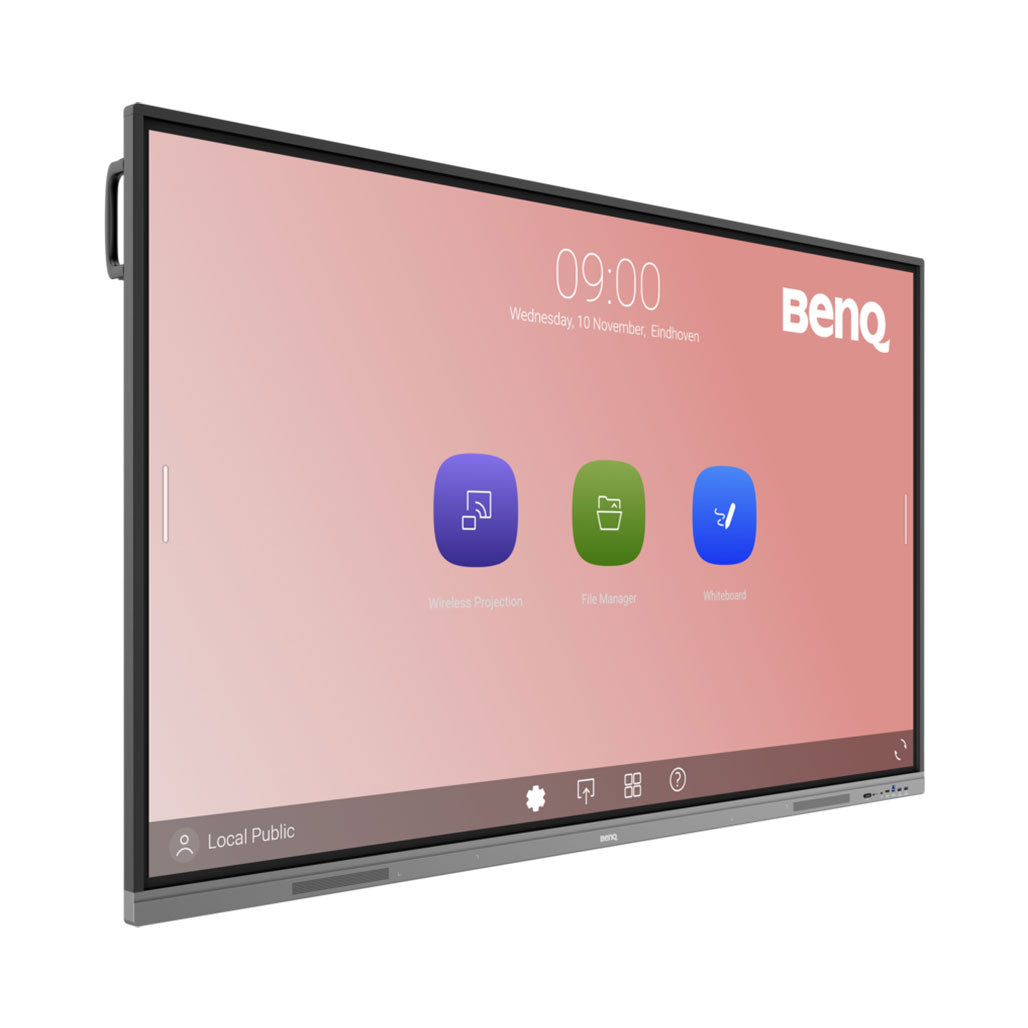

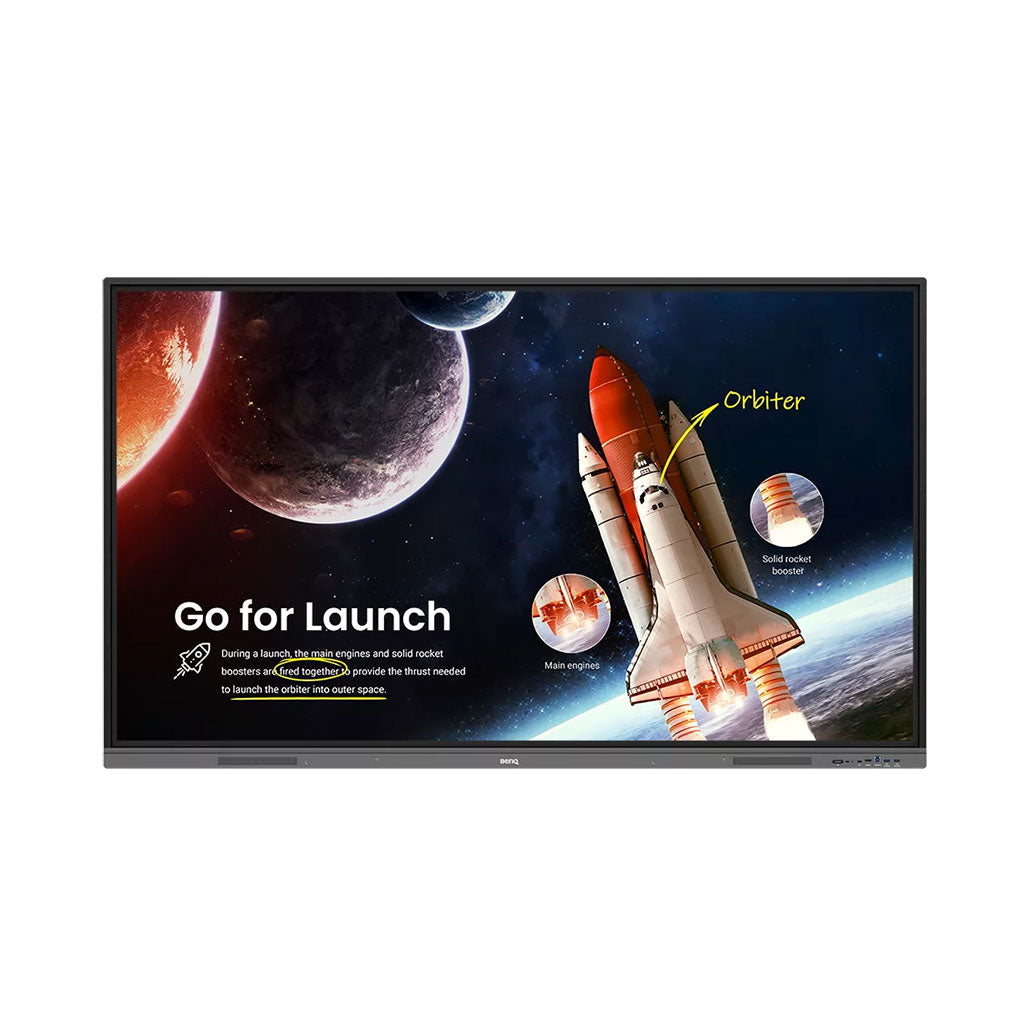

The BenQ RE7503A is a 75-inch interactive display tailored for educational environments, combining health-focused features with advanced interactive tools to enhance teaching and learning. With a 4K UHD resolution and built-in touch technology, this display supports up to 40 touch points, making it ideal for collaborative and engaging classroom activities. It features antimicrobial screens and eye care technologies to ensure a healthy learning environment. The display includes essential software for whiteboarding, wireless screen sharing, and device management, providing an all-in-one solution for modern classrooms.
Key Features:
-
Interactive Touch Display: 75-inch screen with Precision IR touch technology, supporting up to 40 touch points for collaborative work.
-
Health Protection: Antimicrobial coating on the touchscreen and front panel buttons, recognized by TÜV for 99.9% effectiveness against common germs.
-
Eye Care Technology: Anti-glare 4K UHD screen with low blue light and flicker-free technologies to reduce eye strain.
-
Advanced Whiteboarding: EZWrite 6.0 for versatile whiteboarding with interactive tools, media integration, and templates.
-
Wireless Sharing: InstaShare 2 for easy screen sharing from laptops or tablets, with support for Miracast and AirPlay.
-
Flexible Connectivity: Multiple I/O ports including USB-C, HDMI, and VGA for various connection needs.
-
Remote Management: Device management via DMS, with remote updates, app installations, and analytics.
-
Built-In Speakers: 2 × 16W speakers for clear audio without the need for external speakers.
-

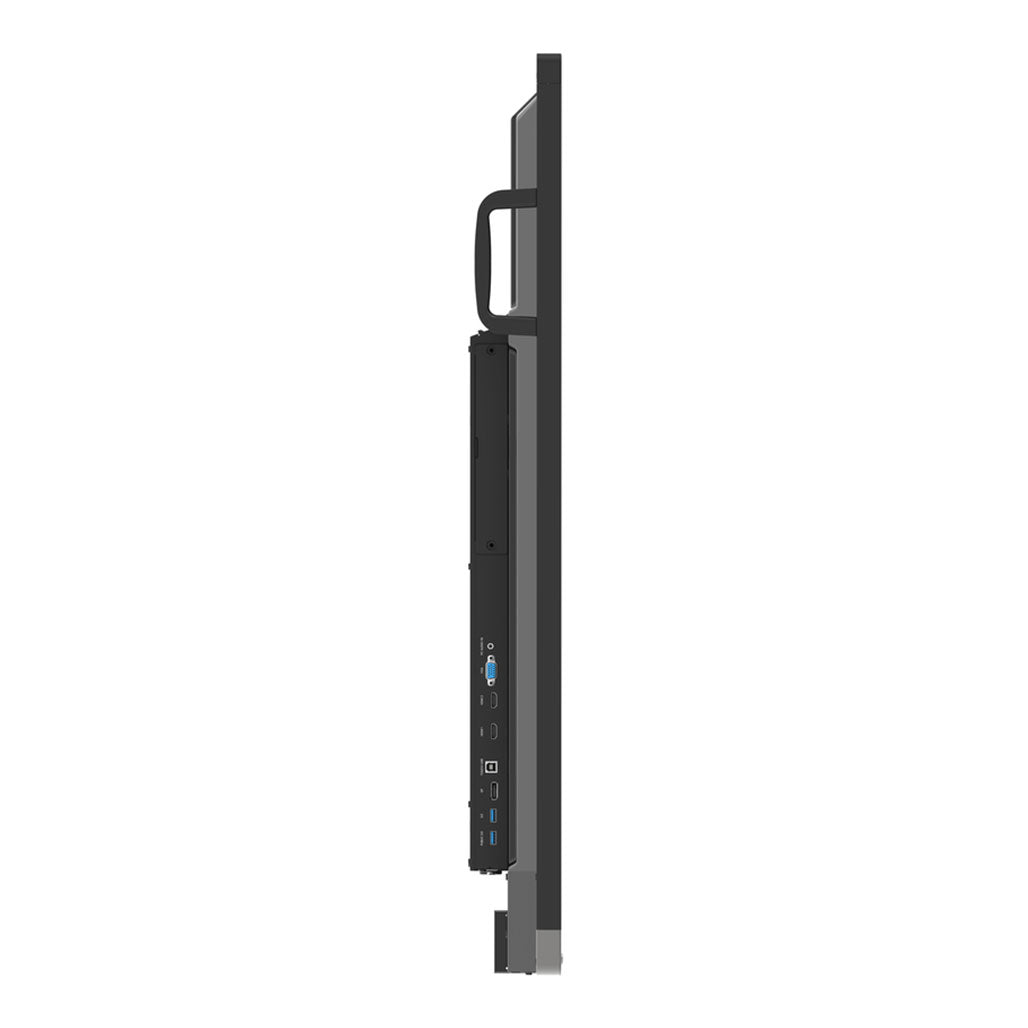

Convenient Setup: Front I/O ports and intuitive controls for easy access and management.
Specifications:
-
Panel Size: 75 inches
-
Panel Type: IPS
-
Active Area: 1649.7 × 927.9 mm
-
Resolution: UHD 3840 × 2160 pixels
-
Aspect Ratio: 16:9
-
Panel Brightness: 450 nits
-
Contrast Ratio: 1200:1 (typical), Dynamic 30,000:1
-
Response Time: 8 ms
-
Color Gamut: 72% NTSC
-
Color Depth: 10-bit
-
Light Life: 50,000 hrs (typical)
Glass:
-
Anti-glare Coating: Yes
-
Hardness: 9H tempered
Touch Screen:
-
Touch Technology: Precision IR
-
Touch Points: Up to 40
-
Response Time: < 10 ms
System:
-
Memory | Storage: 4GB | 32GB
-
Operating System: Android 11.0
-
GPU: G52 2EE MC1
-
CPU: A55 × 4
Connectivity:
-
VGA: 1
-
HDMI (in | out): 3 × HDMI 2.0
-
DisplayPort: 1 × 1.2
-
USB-A: 1 × 2.0 + 3 × 3.0
-
USB-C: 1 × 2.0
-
USB-B (for touch): 2 × 2.0
-
3.5 mm Line in: 1 (PC Audio)
-
3.5 mm Line out: 1 (Earphone)
-
Slot-in PC (OPS): 1
-
SPDIF (in | out): 0 | 1 (optical)
-
Ethernet LAN: 10 / 100 / 1000 Mbps
-
RS-232: 1
Built-in Peripherals:
-
Ambient Light Sensor: Yes
-
IR Sensor: Yes
-
Speaker: 2 × 20 W (max)
Power:
-
ENERGY STAR®: Yes
-
Power Supply: AC 100-240V 50/60Hz
-
Standby Power Consumption: <0.5 W
-
Typical Power Consumption: 135W
Physical:
-
Dimensions (W x H x D): 1705.7 × 1032.3 × 90.2 mm
-
Shipping Dimensions (W x H x D): 1880 × 1160 × 230 mm
-
Weight (Product | Shipping): 50.4 kg | 66.5 kg
Environment:
-
Operating Temperature: 0°C ~ 40°C | 32°F ~ 104°F
-
Storage Temperature: -10°C ~ 60°C | 14°F ~ 140°F
-
Operating Humidity: 20% ~ 85% RH
-
Storage Humidity: 10% ~ 90% RH
Software:
-
Whiteboarding: EZWrite 6.0
-
Wireless Screen Sharing: InstaShare 2
-
Device Management: DMS
-
Account Management: AMS
-
Quick Access Tool: Floating Tool
-
Broadcast System: X-Sign Broadcast
Accessories:
-
Cables: 1 × VGA (3 m), 1 × HDMI (3 m), 1 × USB-B for touch (3 m), 1 × USB-C (1.5 m)
-
Wall Mount: Included
-
Stylus: 2
-
Remote Control: 1
Enhance your classroom with the BenQ RE7503A Essential Series Interactive Display, offering a blend of health-focused features and advanced interactive capabilities for a modern educational experience.
