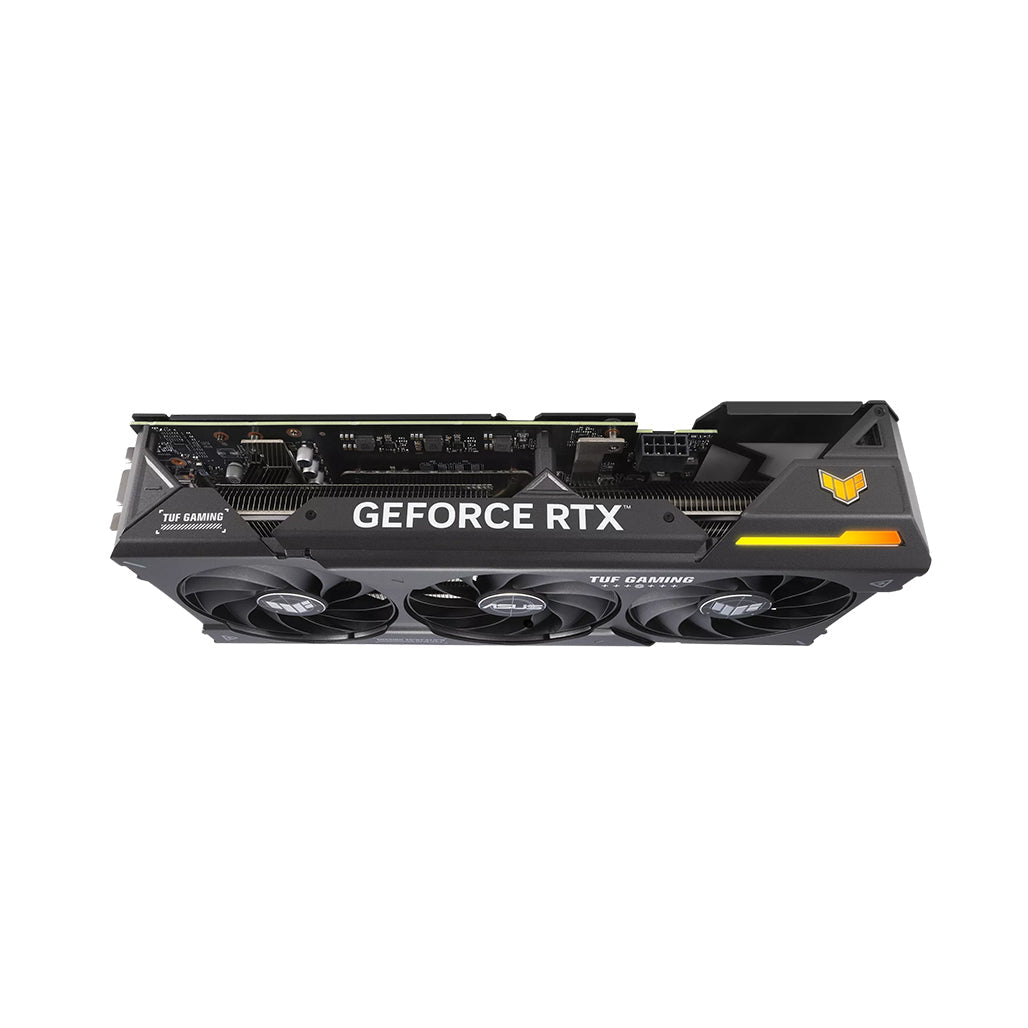

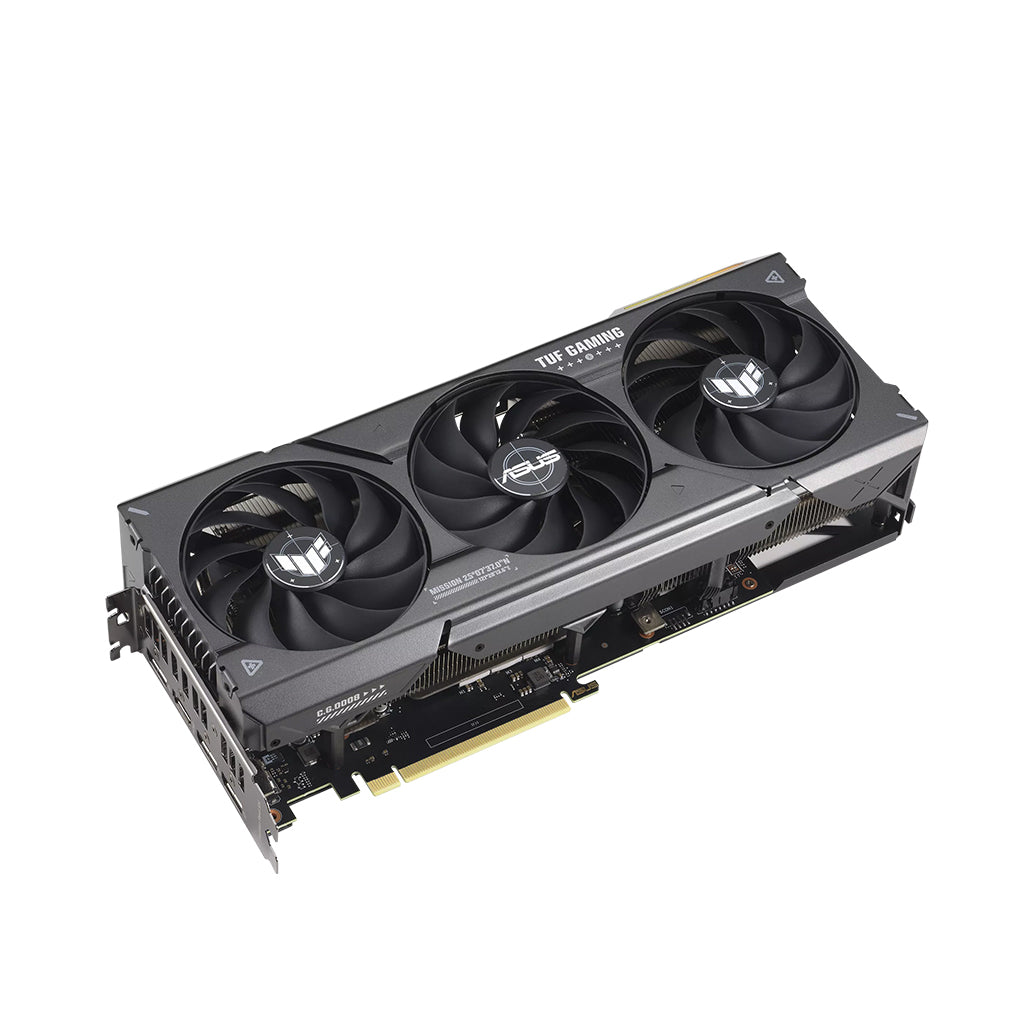

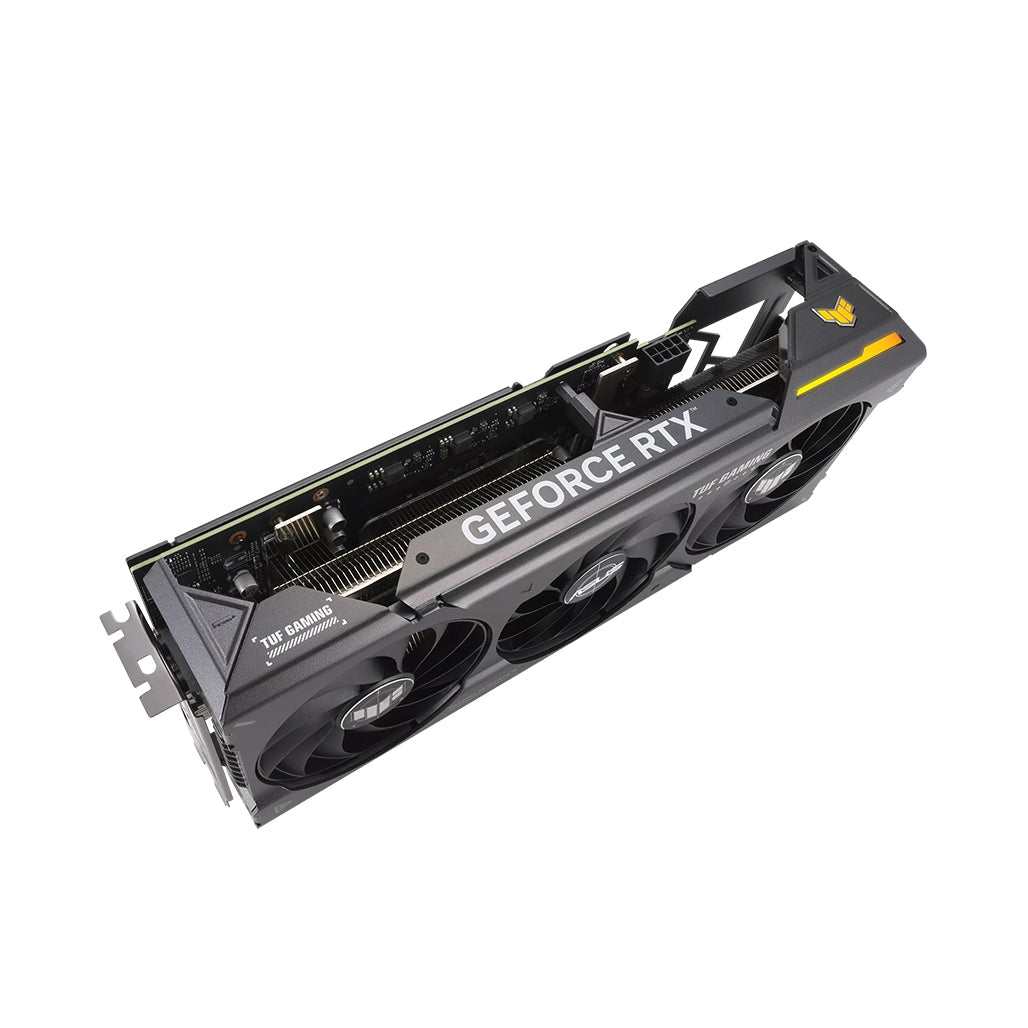

The ASUS TUF Gaming GeForce RTX™ 4070 12GB GDDR6X OC Edition is engineered for gamers and creators, offering superior performance and durability. Powered by NVIDIA DLSS 3 and the Ada Lovelace architecture, this GPU delivers exceptional ray tracing capabilities and enhanced efficiency.
Key Features
-
NVIDIA DLSS3: Achieves up to 4x performance with DLSS 3 compared to traditional rendering methods.
-
4th Generation Tensor Cores: Enhanced AI performance for more realistic graphics.
-
3rd Generation RT Cores: Doubled ray tracing performance.
-
OC Mode: Boosts to 2580 MHz, with a default boost of 2550 MHz.
-

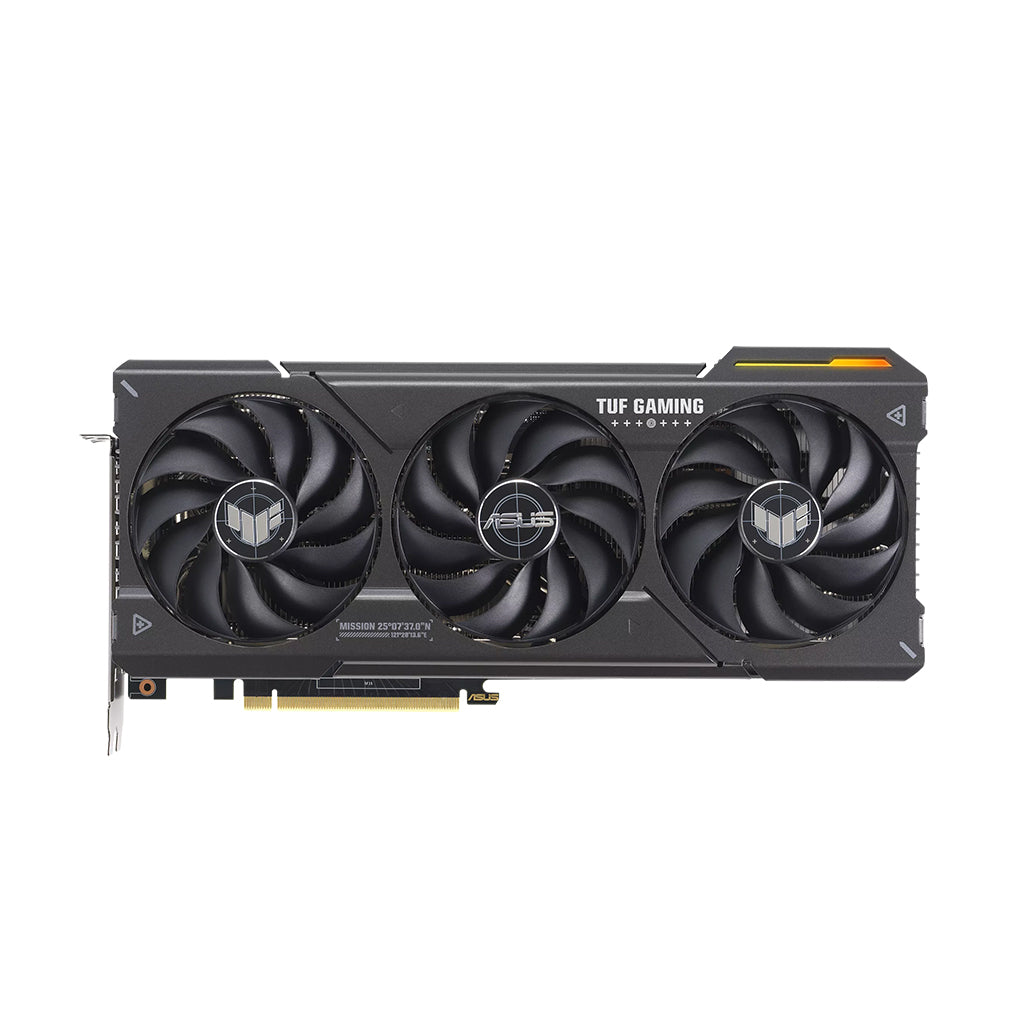

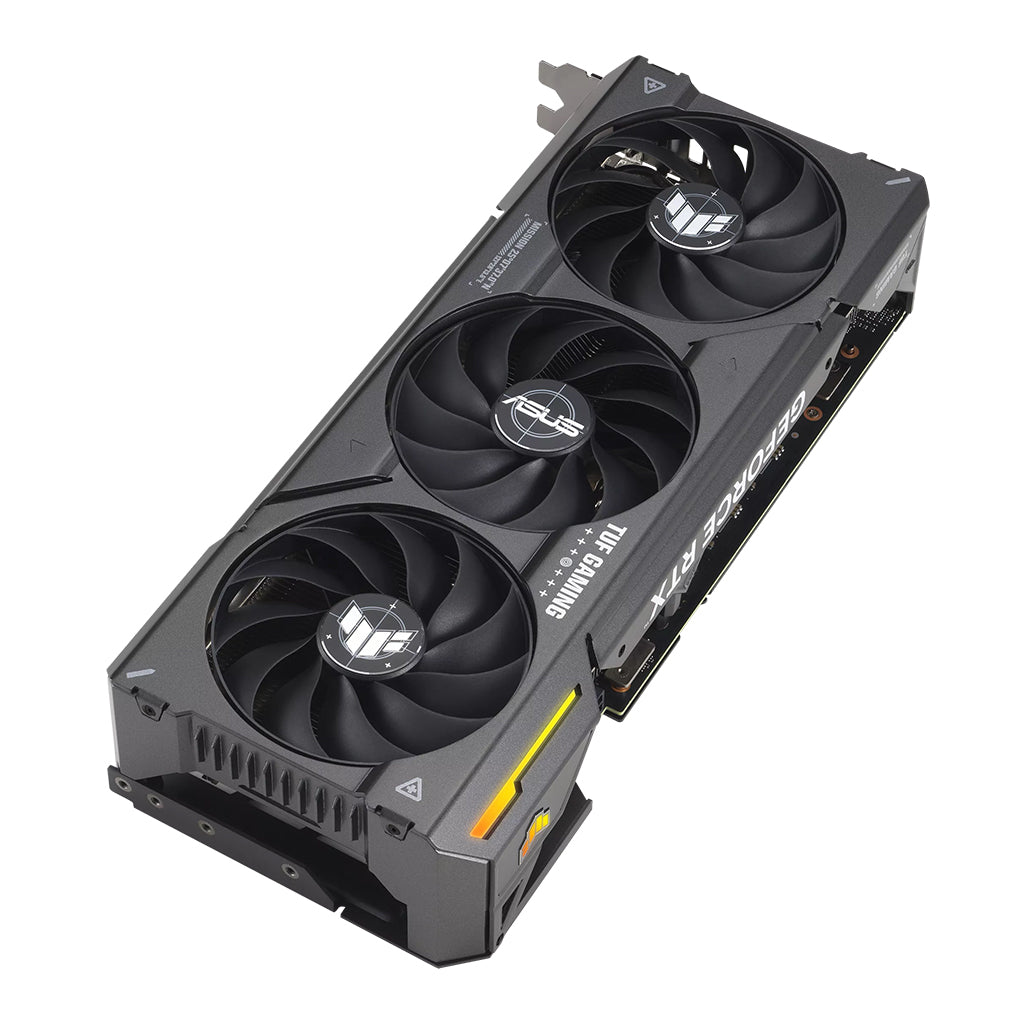

Axial-tech Fans: Increased airflow by 21%, reducing temperatures and noise.
-
Dual Ball Fan Bearings: Provides longer lifespan compared to traditional designs.
-
Military-grade Capacitors: Rated for 20K hours at 105°C, enhancing durability.
-
Vented Exoskeleton: Adds structural rigidity and improves heat dissipation.
-
Auto-Extreme Manufacturing: Ensures higher reliability through precision automated processes.
-
GPU Tweak III: Software for performance tuning, thermal management, and system monitoring.
Detailed Specifications
-
Model: TUF-RTX4070-O12G-GAMING
-
Graphic Engine: NVIDIA® GeForce RTX™ 4070
-
Bus Standard: PCI Express 4.0
-
OpenGL: OpenGL® 4.6
-
Video Memory: 12GB GDDR6X
-
Engine Clock:
- OC mode: 2580 MHz
- Default mode: 2550 MHz (Boost)
-
CUDA Core: 5888
-
Memory Speed: 21 Gbps
-
Memory Interface: 192-bit
-
Maximum Resolution: 7680 x 4320
-

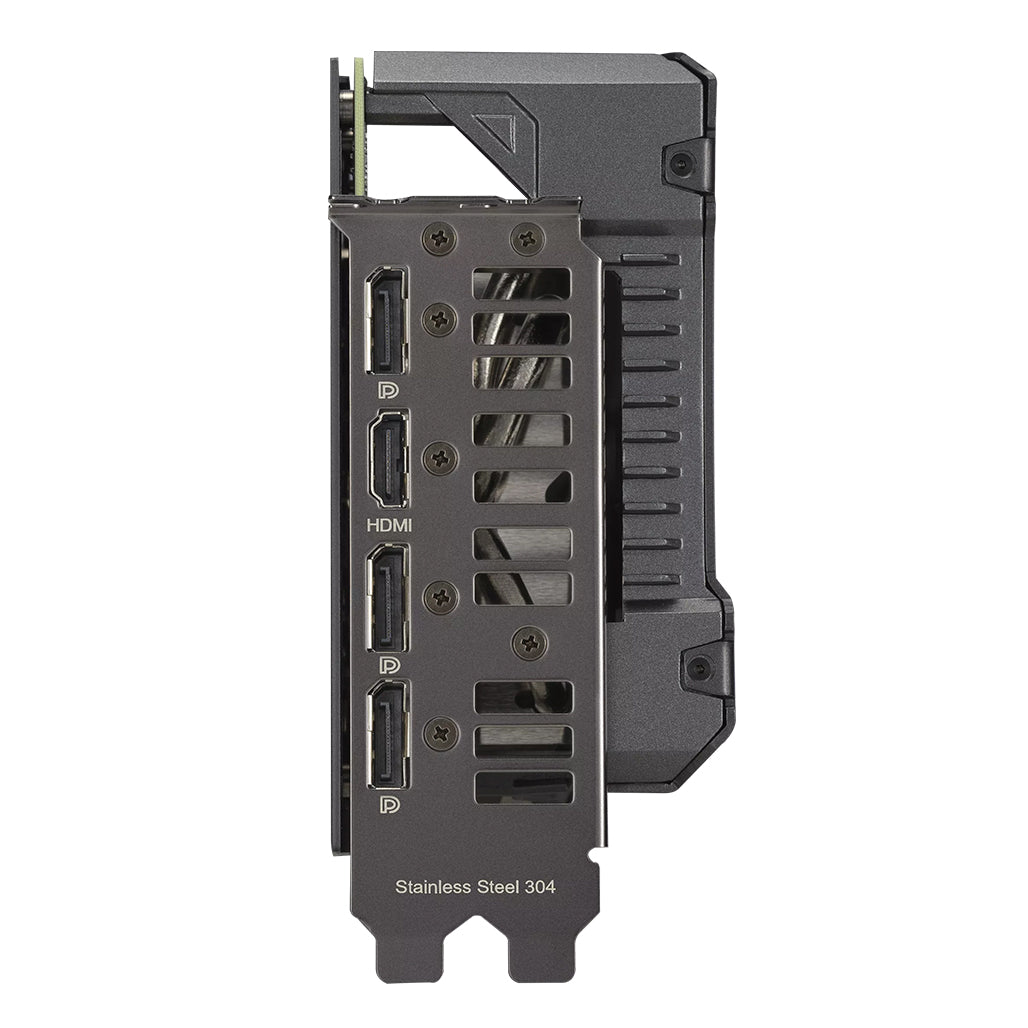

Interfaces:
- 1 x HDMI 2.1 (Native)
- 3 x DisplayPort 1.4a (Native)
- HDCP Support: Yes (2.3)
-
Maximum Display Support: 4
-
NVLink/Crossfire Support: No
Physical Attributes
-
Dimensions: 301 x 139 x 63 mm
-
Slot: 3.15 Slot
-
Power Connectors: 1 x 8-pin
-
Recommended PSU: 650W
Cooling and Durability
-
Axial-Tech Upgrades: Enhanced airflow and cooling with scaled-up fans.
-
Military-Grade Capacitors: Ensures resilience in demanding conditions.
-

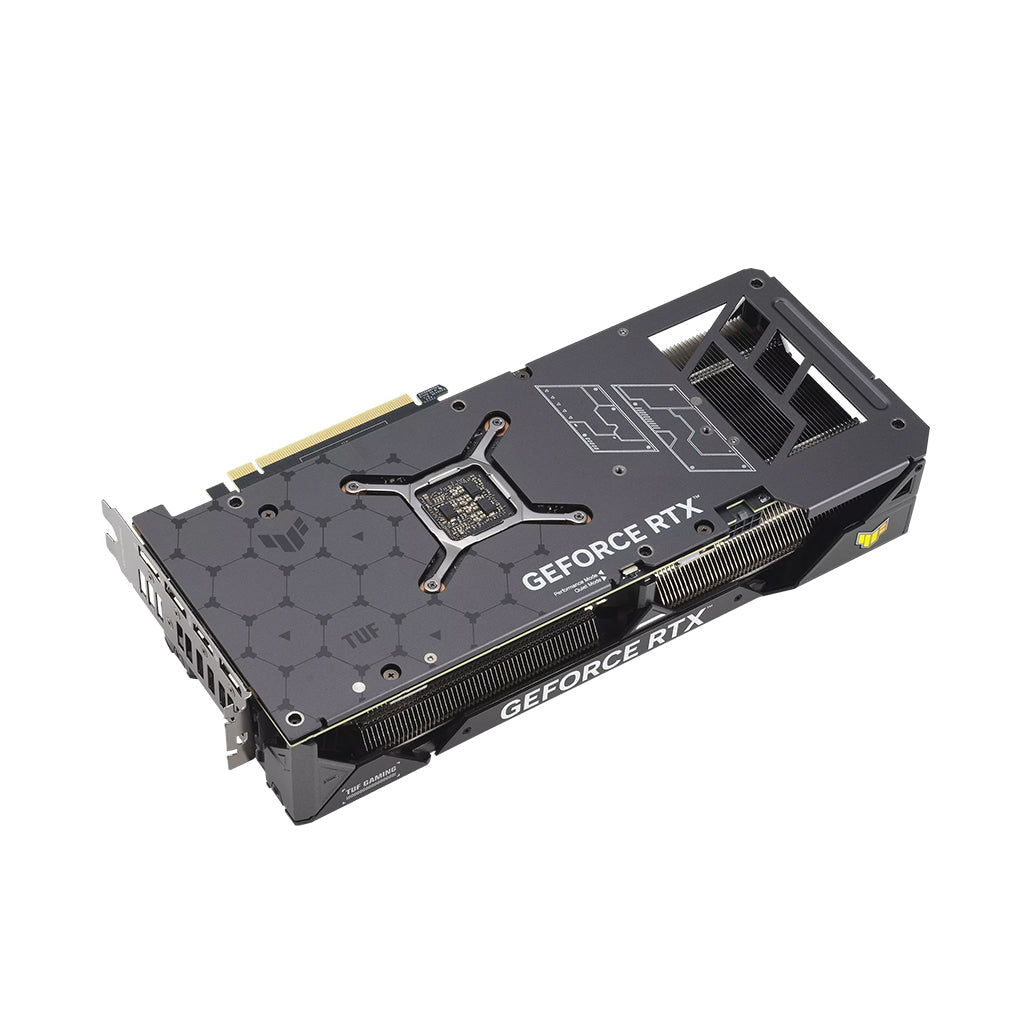

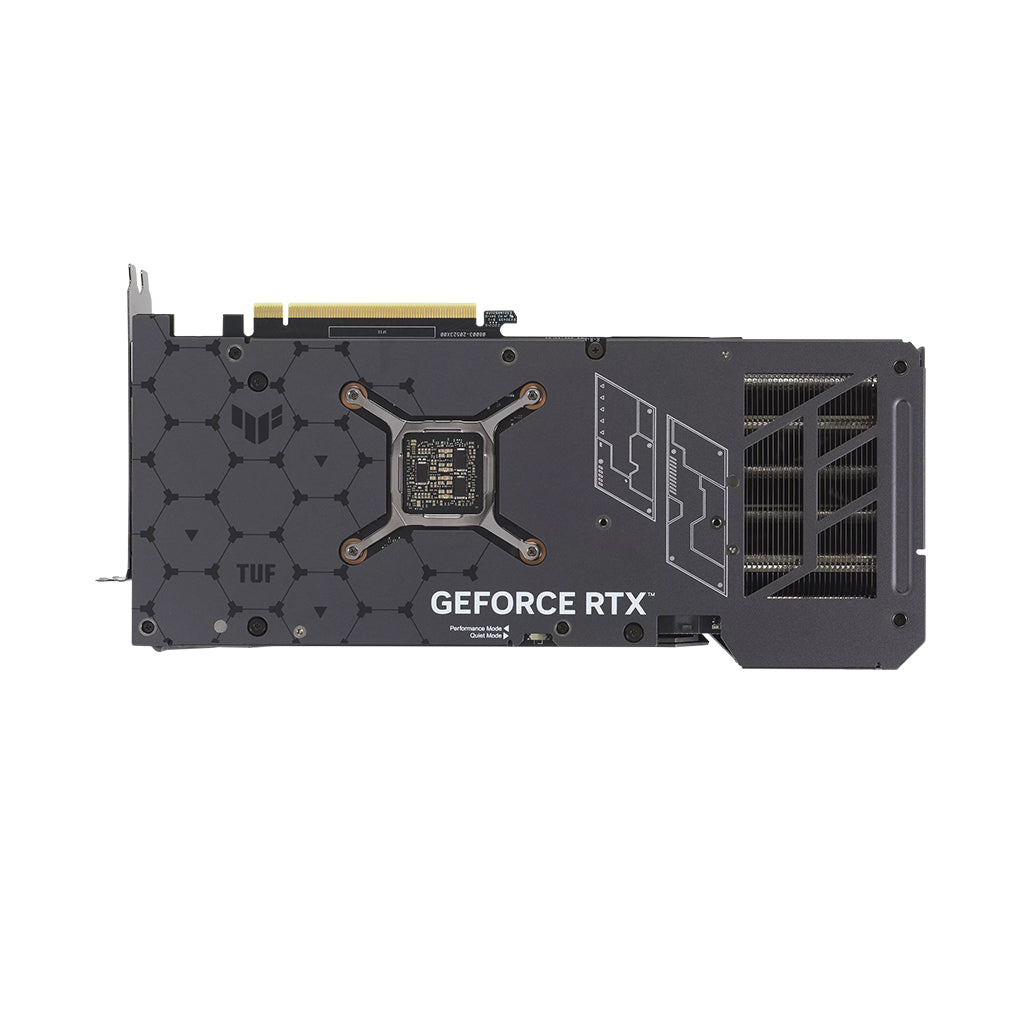

Vented Exoskeleton: A robust backplate for heat management and structural support.
Software and Extras
-
AURA SYNC: Customizable ARGB lighting for personalized setups.
-
GPU Tweak III: Intuitive software for tweaking performance and monitoring.
-
Accessories:
- Collection Card
- Speedsetup Manual
- Thank You Card
- TUF Velcro Hook & Loop
- TUF Graphics Card Holder
- TUF Gaming Certificate
Notes
-
Cooling Design: Fans stop below 50°C for quieter operation and resume above 55°C.
-
Auto-Extreme Technology: Reduces thermal strain and environmental impact.
Conclusion
The ASUS TUF Gaming GeForce RTX™ 4070 12GB GDDR6X OC Edition is a robust and high-performing GPU designed for gamers and creators seeking superior performance, efficient cooling, and long-term durability. With advanced cooling technologies, military-grade components, and customizable lighting, it stands as a formidable choice for any high-end gaming or creative setup.
