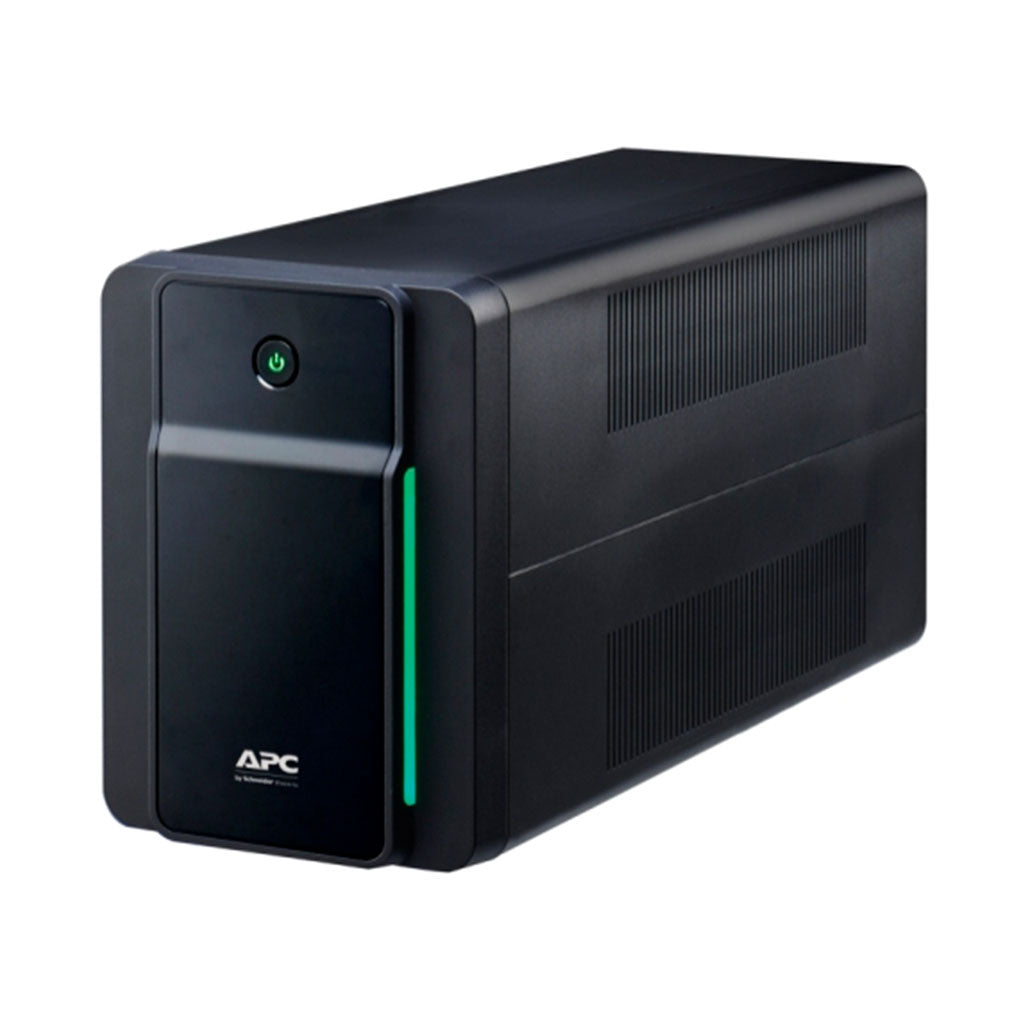

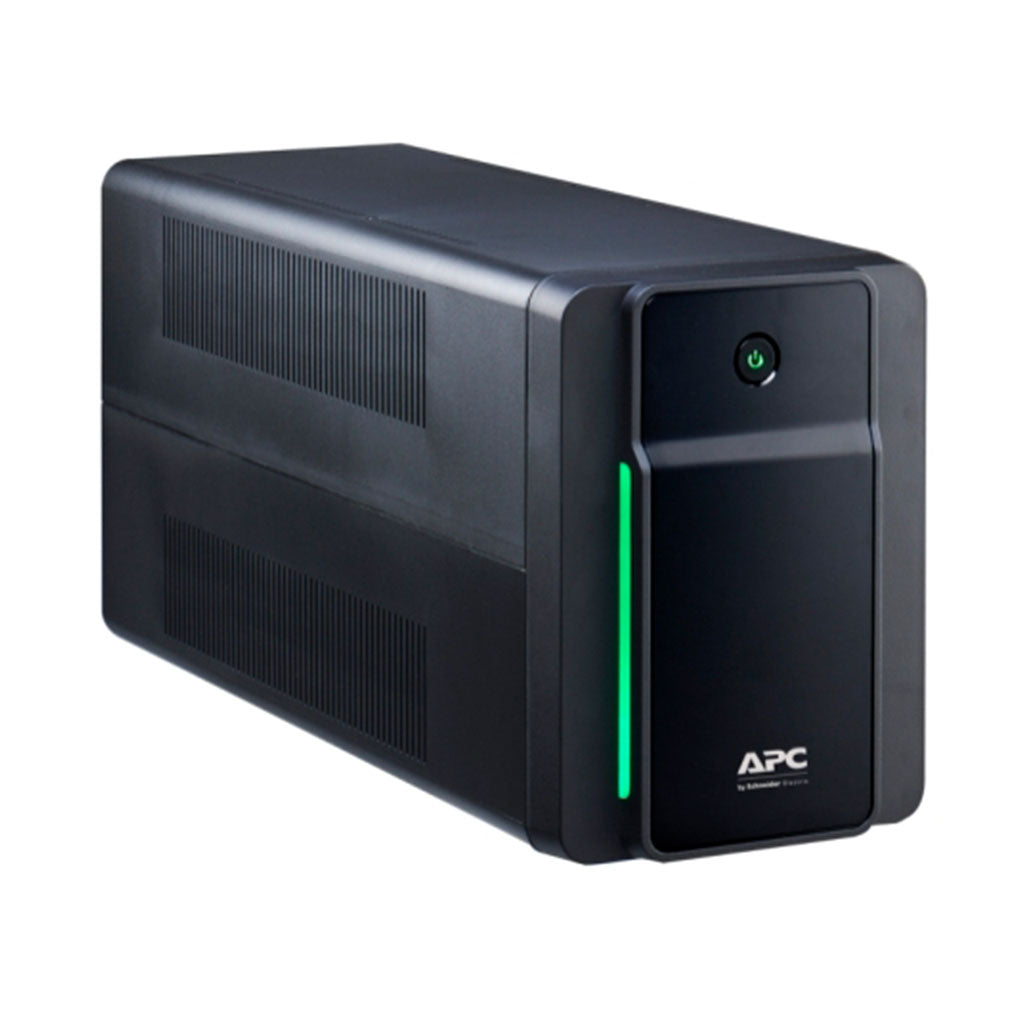

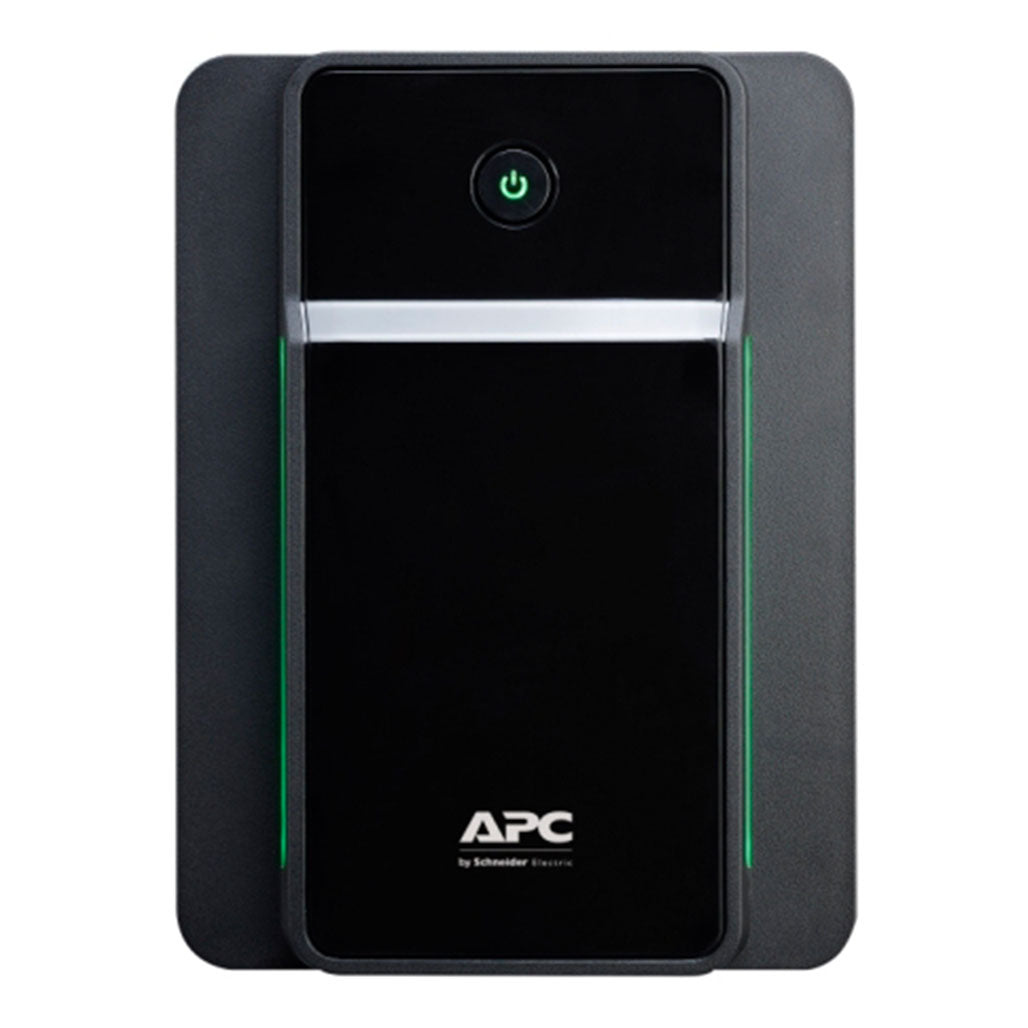

APC Back-UPS 1600VA Tower - Reliable 230V Power Backup with AVR and Surge Protection

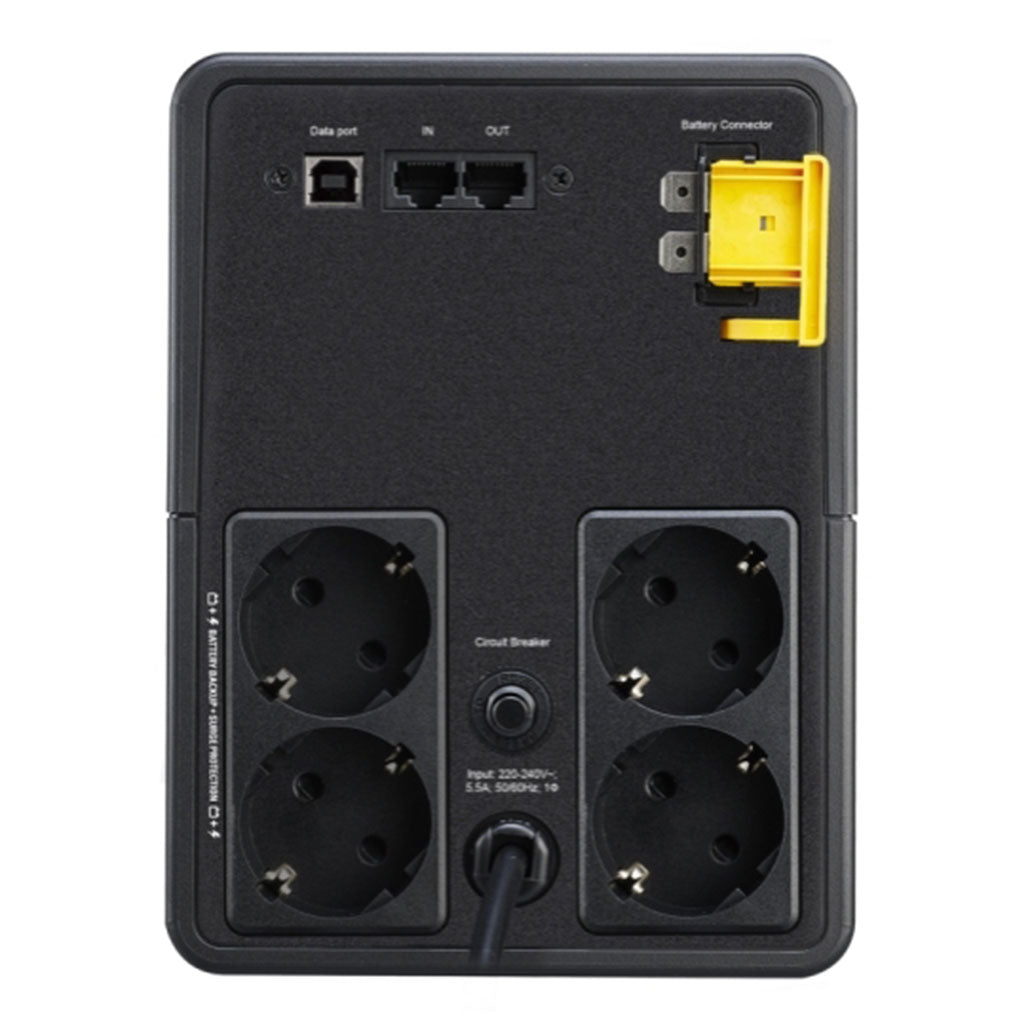

Ensure uninterrupted power and safeguard your electronics with the APC Back-UPS 1600VA Tower. Designed for both home and office use, this UPS system offers 230V output and features four CEE 7/7 Schuko outlets. With Automatic Voltage Regulation (AVR) and advanced battery management, you can protect your critical devices from power surges, spikes, and outages.
Key Features:
-
Battery-Backed and Surge-Only Outlets: Provides dedicated battery backup and surge protection for essential electronics while reserving power capacity for critical devices.
-
Surge Protection: Protects secondary electronics from surges and spikes without draining battery power.
-
Safety Agency Approved: Tested and approved for safe operation with connected service provider equipment.
Advanced Battery Management:
-
Automatic Self-Test: Periodic self-tests ensure early detection of batteries needing replacement.
-
Battery Failure Notification: Early-warning fault analysis enables timely preventive maintenance.
-
Intelligent Battery Management: Maximizes battery performance, life, and reliability through precision charging.
User-Friendly Design:
-
LED Status Display: Quickly understand unit and power status with clear visual indicators.
-
Audible Alarms: Receive notifications of changing utility power and UPS power conditions.
Technical Specifications:
-
Output Power: 900 Watts / 1.6 kVA
-
Output Frequency: 50/60 Hz +/- 1 Hz
-
Topology: Line interactive
-
Waveform Type: Stepped approximation to a sinewave
-
Transfer Time: 6 ms typical, 10 ms maximum
-
Input Voltage Range: 140 - 300V
-
Battery Type: Lead-acid battery
-
Typical Recharge Time: 8 hours
-
Battery Voltage: 24 V
-
Expected Battery Life: 3 - 5 years
-
Surge Energy Rating: 273 Joules
Physical Dimensions:
-
Height: 190 mm (19.0 cm)
-
Width: 140 mm (14.0 cm)
-
Depth: 390 mm (39.0 cm)
-
Net Weight: 10.3 kg
-
Shipping Weight: 11.3 kg
-
Color: Black
Environmental Specifications:
-
Operating Temperature: 0 - 40 °C
-
Operating Humidity: 0 - 95% (Non-condensing)
-
Operating Elevation: 0 - 3000 meters
-
Storage Temperature: -15 - 40 °C
-
Storage Humidity: 0 - 95% (Non-condensing)
-
Storage Elevation: 0 - 3000 meters
-
Audible Noise: 40.0 dBA
Included in the Package:
- APC Back-UPS 1600VA Tower
- Mounting Hardware
- Rack Mounting Brackets
- Serial Configuration Cable
Protect your equipment and data with the APC Back-UPS 1600VA Tower, featuring reliable battery backup, surge protection, and intelligent battery management to ensure optimal performance and longevity. Perfect for safeguarding your home office or business-critical systems.
