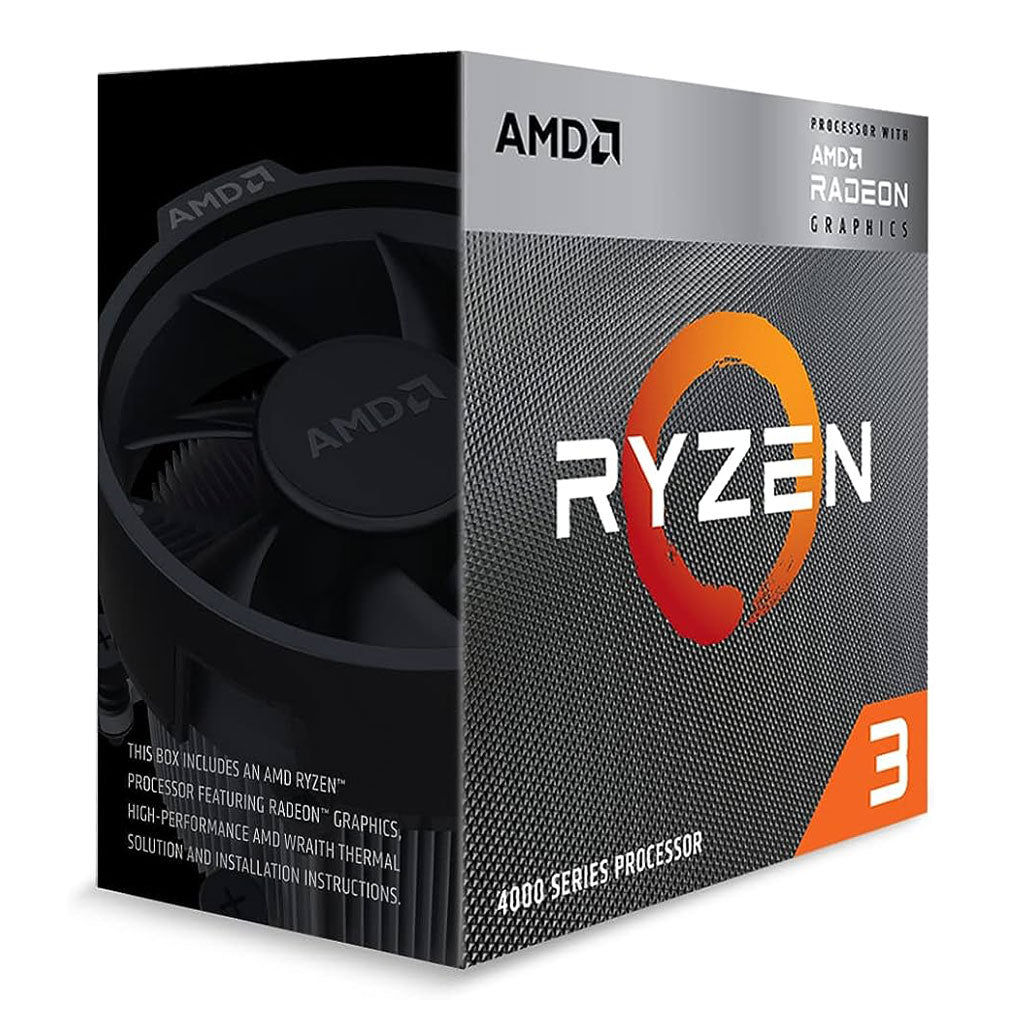

AMD Ryzen 3 4300G 6MB 4C/8T

General Specifications

Platform: Desktop

Product Family: AMD Ryzen™ Processors

Product Line: AMD Ryzen™ 3 4000 G-Series Desktop Processors with Radeon™ Graphics

Former Codename; "Renoir"

Architecture: "Zen 2"

# of CPU Cores: 4

# of Threads: 8

Max. Boost Clock: Up to 4.0GHz

Base Clock: 3.8GHz

L1 Cache: 256KB

L2 Cache: 2MB

L3 Cache: 4MB

Default TDP; 65W

AMD Configurable TDP (cTDP): 45-65W

Processor Technology for CPU Cores: TSMC 7nm FinFET

Unlocked for Overclocking: Yes

CPU Socket: AM4

Max. Operating Temperature (Tjmax): 95°C

Launch Date: 7/21/2020

*OS Support:

• Windows 11 - 64-Bit Edition
• Windows 10 - 64-Bit Edition
• RHEL x86 64-Bit
• Ubuntu x86 64-Bit
• *Operating System (OS) support will vary by manufacturer.

Connectivity

PCI Express® Version: PCIe® 3.0

System Memory Type: DDR4

Memory Channels: 2

System Memory Specification: Up to 3200MT/s

Graphics Capabilities

Integrated Graphics: Yes

Graphics Model: Radeon™ Graphics

Graphics Core Count: 6

Graphics Frequency: 1700 MHz

Product IDs

Product ID Tray: 100-000000144
